General
|
Machine Type
|
PC Connectable|Desktop
|
Database upload from PC
|
Yes
|
Housing colour
|
Glossy black and white
|
Image upload from PC
|
Yes
|
Memory Locations
|
255
|
Technology
|
Direct thermal
|
Memory Capacity
|
6MB
|
Connectivity
|
Airprint
|
Yes
|
WiFi Direct
|
Yes
|
USB interface
|
USB 2.0 Full Speed
|
Wireless network interface
|
IEEE802.11b/g/n (Infrastructure Mode)
|
General Supplies
|

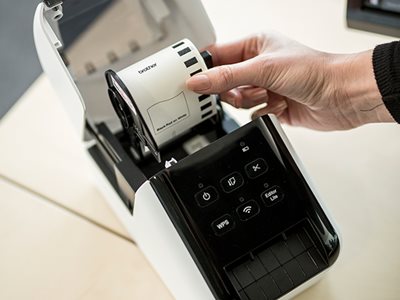

Rolls
|
DK Die-cut Labels|DK Continuous Length Tape
|
Dimensions and weights
|
Dimensions
|
125mm (W) x 234mm (D) x 145mm (H)
|
Weight
|
1.12
|
In the box
|
In the box
|
User Guide|Label Printer|Warranty Card|USB Cable|Quick Setup Guide|AC power cord|Standard address die-cut labels (100 labels, 29mm x 90mm)|62mm 2-colour print continuous label roll (5m)
|
Operating systems & software
|
Supported Operating Systems
|
For the full list of compatible operating systems visit support.brother.com|Windows|Windows::Labelling,SupportedOperatingSystems,Windows|Windows::Windows 8.1|Windows::Labelling,SupportedOperatingSystems,Windows|Windows::Labelling,SupportedOperatingSystems,Windows|Windows::Labelling,SupportedOperatingSystems,Windows|Windows::Labelling,SupportedOperatingSystems,Windows|Mac OSX|Windows::Labelling,SupportedOperatingSystems,Windows|Windows::Labelling,SupportedOperatingSystems,Windows|Windows::Labelling,SupportedOperatingSystems,Windows|Windows::Labelling,SupportedOperatingSystems,Windows|Mac OSX::Mac OS X 10.10 or higher|Mac OSX::10,11 or higher |Mac OSX::10,12 or higher|Mac OSX::Mac OS X 10.13 or higher |Mac OSX::10,14 or higher
|
Printing
|
Bitmap Fonts
|
Brougham|Brussels|Helsinki|Letter Gothic Bold|San Diego
|
Black And Red Printing Capability
|
Yes
|
One Dimensional Barcode Symbologies
|
CODE39|CODE128|UPC-A|UPC-E|EAN8|UCC/EAN-128(GS1-128)|ITF(I-2/5)|CODABAR(NW-7)|EAN13(JAN13)|GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked)
|
Printing Maximum Label Width
|
62mm
|
Printing Maximum Print Width
|
60.96mm
|
Printing Outline Vector Fonts
|
Brussels|Helsinki|Letter Gothic
|
Printing Resolution
|
300 x 300 (standard)|300 x 600 (high resolution mode)
|
Standard Print Speed (labels per minute)
|
110 labels per minute
|
Standard Print Speed (mm per second)
|
176mm per second
|
Two Dimensional Barcode Symbologies
|
QR Code (Model1, Model2, Micro)|Data Matrix (ECC200 Square, ECC200 Rectangular)|MaxiCode|CODE93|POSTNET|UPC-E EXTENSION|PDF417
|
Editor label design
|
Database File Compatibility
|
CSV|Microsoft Access|Microsoft Excel
|
Microsoft Office AddIn
|
Excel|Outlook|Word
|
Screen Capture
|
Yes
|
Fonts
|
All installed truetype fonts
|
Frames
|
126
|
Software Date And Time Stamp
|
Date and time
|
Software Label Orientations
|
Horizontal|Vertical
|
Software Sequential Numbering
|
1 - 9999 / A - Z / a - z
|
Software Text Alignment
|
Centre|Left|Justify|Right
|
Software Typestyles
|
Bold|Horizontal lines|Invert|Italic|Normal|Shadow|Shadow light|Surround
|
Solutions
|
SDK (Software Development Kit)
|
Yes
|
Caveats
|
*
|
(*25) Requires DK-22251 continuous roll to print in black and red (*24) Brother standard test environment. Using DK-11201 standard address labels and USB connection (*24) Brother standard test environment. Using DK-11201 standard address labels and USB connection
|
