General
|
Function
|
Scan
|
Control Panel
|
Touchscreen
|
Display
|
Yes
|
Backup Clock
|
Up to 24 hours
|
Scanner type
|
Dual CIS (Contact Image Sensor)|LED Array Light Source
|
Scanning
|
2-Sided scan
|
True
|
One Sided Scan Speed A4 Mono
|
60 (pages per minute)
|
One Sided Scan Speed A4 Colour
|
60 (pages per minute)
|
Two Sided Scan Speed A4 Mono
|
120 (images per minute)
|
Two Sided Scan Speed A4 Colour
|
120 (images per minute)
|
Resolution
|
Interpolated|Optical|Optical::600 x 600dpi
|
Colour Depth
|
Output::24 bit Colour Processing|Output|Input|48 bit Colour Processing
|
Form Factor
|
Desktop
|
Wireless Scanning
|
True
|
Mobile Scan
|
True
|
Media specifications
|
Automatic Document Feeder
|
100
|
Media Sizes
|
Direct Paper Path::Width 50.8 - 215.9mm|Long Paper 5000mm|Height 50.8 - 355.6mm
|
Media Types
|
Plastic Card|Plain Paper|Thicker Paper|Thin Paper|Recycled Paper|Business Card|Thick Paper
|
Paper Weight
|
25 - 413gsm
|
Paper Thickness
|
0.08 ~ 0.28mm
|
Plastic Card Size
|
Length (ISO)|Length (ISO)::85.60mm|Width (ISO)|Width (ISO)::53.98mm
|
Plastic Card Thickness
|
Up to 1.32mm
|
Scanner functions
|
File Format Support
|
PDF|TIFF|JPEG
|
Standard Functions
|
Brother Apps|Brother Web Connect|HTTP(S)|Scan to::USB|Scan to::Email Server|Scan to::PC|Scan to::Network Folder|Scan to::Network|Scan to::SharePoint|Scan to::SFTP|Scan to::FTP|Scan to::File|Scan to::Image
|
Scan Profiles
|
25 Preset network
|
Direct Scan
|
Yes
|
Feed Control
|
Auto Start Scan|Ultra Sonic Multi Feed Sensor|Resume Scan|Scan Preview|Document Separation|Continuous Scan|Separation Switch
|
Drivers
|
Scan Drivers
|
Windows|Linux|Linux:: SANE|Visit support,brother,com for the full list of supported OS and to download the latest drivers and software,|Macintosh|Windows::Windows 11|Windows::Windows 10|Macintosh:: TWAIN|Macintosh:: AirPrint Scanning|Windows:: Windows 8.1|Macintosh::10.14.x|Windows::TWAIN|Windows::WIA|Windows:: Windows Server 2019, 2016, 2012R2, 2012 & 2008R2|Macintosh::macOS|Windows::ISIS
|
Fleet Management Tools
|
Fleet Management Tools
|
Embedded Web Server|LAN/WAN Management Software|LAN/WAN Management Software::BRAdmin Professional|LAN/WAN Management Software::BRAdmin Light
|

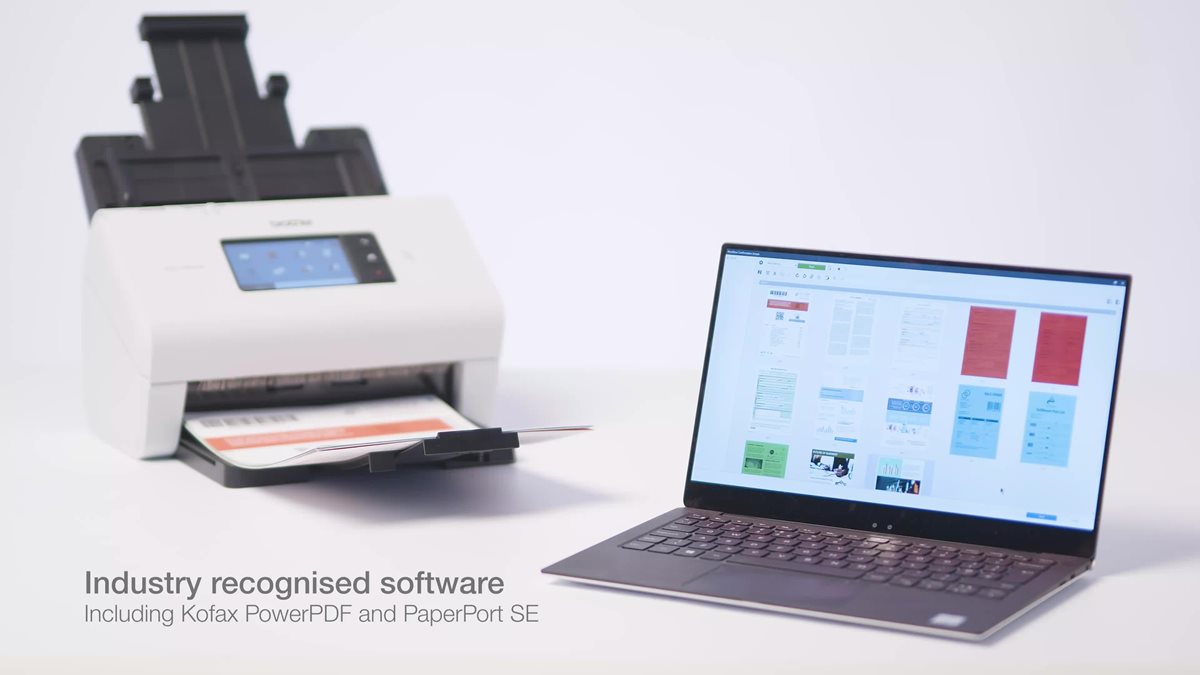

Software supplied - Windows
|
Brother iPrint&Scan|Brother iPrint&Scan Desktop|Windows Software|Macintosh Software|Utilities|Easy Setup|Windows Software::Tungsten PaperPort|Windows Software::Kofax Power PDF Standard v3|Windows Software::Remote Setup|Macintosh Software::Remote Setup|Windows Software::NewSoft Presto! Bizcard 6|Macintosh Software::NewSoft Presto! Bizcard 7|Windows Software::Brother ScanEssentials
|
Network
|
Wireless network security
|
SSL/TLS|SSL/TLS::IPPS|SSL/TLS::HTTPS|WEP 64/128 bit|WPA-PSK (TKIP/AES)|WPA2-PSK (TKIP/AES)|SMTP-AUTH|WPA3-SAE (AES) *Wi-Fi Direct supports WPA2-PSK (AES) only
|
Wired Network Security
|
SSL/TLS|SSL/TLS::IPPS|SSL/TLS::HTTPS|802,1x|802,1x::EAP-MD5|802,1x::EAP-FAST|802,1x::PEAP|802,1x::EAP-TLS|802,1x::EAP-TTLS|SMTP-AUTH|SSL/TLS::SMTP|SNMP v3
|
Supplies And Accessories
|
Optional accessories
|

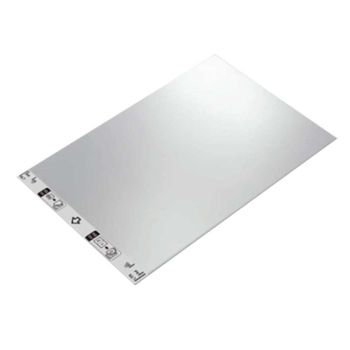

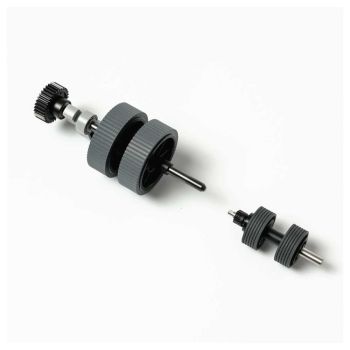

A3 Carrier Sheet|Roller Kit::Roller Kit PRK-A4001 ADS-4900W
|
Carton Contents
|
Carton Contents
|
Detachable ADF|Power supply cord|AC adapter|USB cable|Quick setup guide|Product safety guide|Warranty|Device
|
Dimensions And Weights
|
Dimensions With Carton
|
393mm (W) x 288mm (D) x 334mm (H)
|

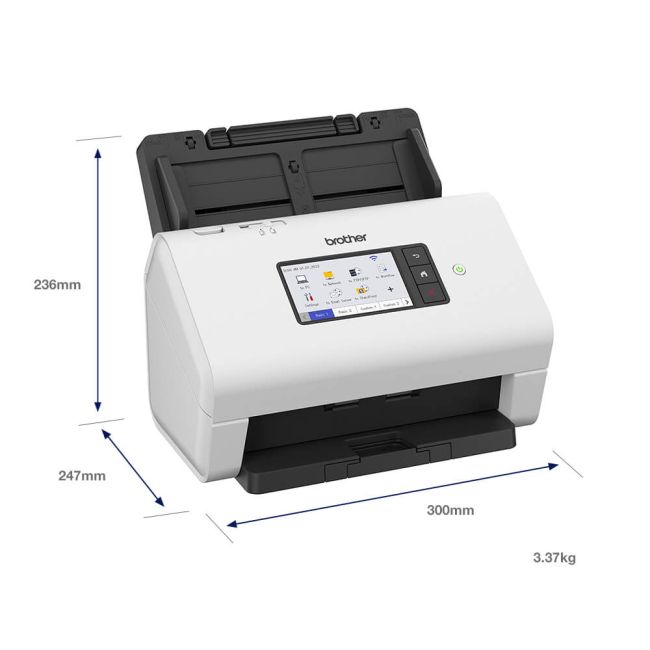

Dimensions Without Carton
|
300mm (W) x 247mm (D) x 236mm (H)
|
Operating Environment
|
Power Requirement
|
AC|DC|AC::100-240V AC 50/60Hz|DC::24V|DC::1.9A
|
Sound Power
|
Scanning|Scanning::<62.0dB
|
Operating
|
Humidity %|Humidity %::20 - 80%|Degrees Celsius|Degrees Celsius::5°C - 35°C|Degrees Fahrenheit|Degrees Fahrenheit::41°F - 95°F
|
Storage
|
Humidity %|Degrees Сelsius|Degrees Fahrenheit|Humidity %::10 - 90%|Degrees Сelsius::-20°C - 60°C|Degrees Fahrenheit:: -4°F - 140°F
|
Wake Up Time
|
USB connected, approx 1 second from sleep mode
|
Certification
|
WiFi Certified
|
Wi-Fi Protected Setup™|WPA3™ Personal|WPA3™ Enterprise|Wi-Fi Direct
|
Address Book
|
Address Book
|
Speed Dials|LDAP|Group Send
|

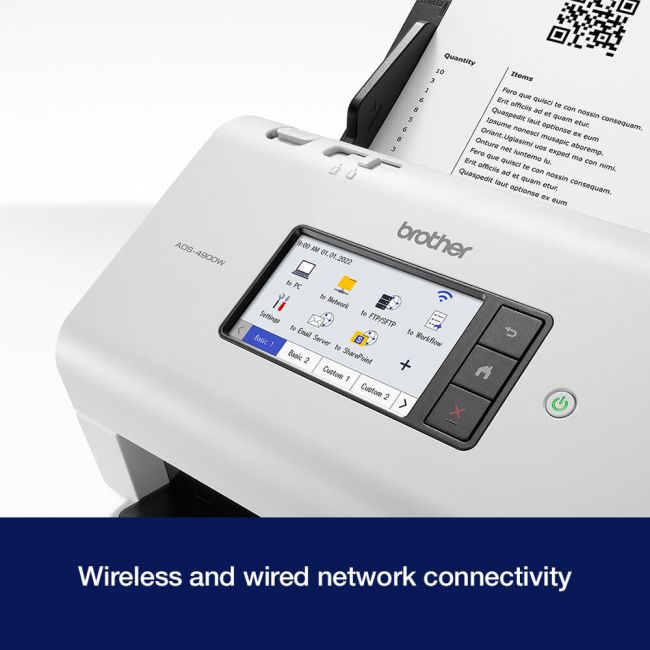

Connectivity
|
Local interface
|
SuperSpeed USB 3.0|USB 2.0 Host::Rear
|
Wireless network interface
|
2.4GHz: IEEE 802.11b/g/n|5GHz: IEEE 802,11a/n (Infrastructure Mode)
|
Wired Interface
|
10BaseT/100BaseTX
|
Wireless Setup Support
|
True
|
WiFi Direct
|
Yes
|
WiFiDirectTM
|
True
|
Wired Network Security
|
SSL/TLS|SSL/TLS::IPPS|SSL/TLS::HTTPS|802,1x|802,1x::EAP-MD5|802,1x::EAP-FAST|802,1x::PEAP|802,1x::EAP-TLS|802,1x::EAP-TTLS|SMTP-AUTH|SSL/TLS::SMTP|SNMP v3
|
Wireless Network Security
|
SSL/TLS|SSL/TLS::IPPS|SSL/TLS::HTTPS|WEP 64/128 bit|WPA-PSK (TKIP/AES)|WPA2-PSK (TKIP/AES)|SMTP-AUTH|WPA3-SAE (AES) *Wi-Fi Direct supports WPA2-PSK (AES) only
|
Security Features
|
Security Features
|
Kensington Lock|Firmware Updates|Port-based Network Access Control (IEEE 802,1x)|E-mail Notifications|E-mail Reports|Secure Function Lock 3.0|Setting Lock|Secure Key Management|On-Premise Active Directory/LDAP Authentication
|
IPv4
|
DHCP|APIPA (AutoIP)|WINS/NetBIOS name resolution|DNSResolver|LLMNR responder|SNMPv1/v2c/v3|Web Services (Scan)|SNTPClient|mDNS|HTTP Server|HTTP/HTTPS Server|LDAP
|
IPv6
|
RA|DNS Resolver|mDNS|LLMNR responder|ICMPv6|SNTP Client|Web Services(Scan)|HTTP Server|HTTP/HTTPS Server
|
IP Filter
|
Yes
|

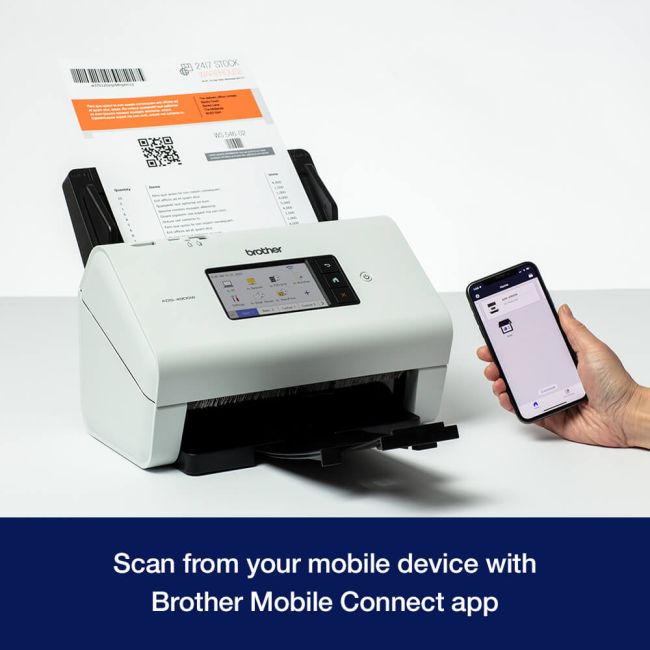

Mobile Connectivity
|
Mobile and Web Connectivity
|
Brother Apps|Web Connect|Brother Mobile Connect::Android|Brother Mobile Connect::iPad / iPhone|Scan to Workflow
|
Energy Consumption
|
Power Saving Modes
|
Sleep|Power Down|Auto power on after power outage
|
