General
|
Function
|
Scan
|
Control Panel
|
Touchscreen
|
Display
|
Yes
|
Backup Clock
|
Up to 24 hours
|
Scanner type
|
Dual CIS (Contact Image Sensor)|LED Array Light Source
|
Scanning
|
2-Sided scan
|
True
|
One Sided Scan Speed A4 Mono
|
40 (pages per minute)
|
One Sided Scan Speed A4 Colour
|
40 (pages per minute)
|
Two Sided Scan Speed A4 Mono
|
80 (images per minute)
|
Two Sided Scan Speed A4 Colour
|
80 (images per minute)
|
Resolution
|
Interpolated|Optical|Optical::600 x 600dpi
|
Colour Depth
|
Output::24 bit Colour Processing|Output|Input|48 bit Colour Processing
|
Form Factor
|
Desktop
|
Wireless Scanning
|
True
|
Mobile Scan
|
True
|
Media specifications
|
Automatic Document Feeder
|
80
|
Media Sizes
|
Height 50.8 - 355.6mm|Direct Paper Path::Width 50.8 - 215.9mm|Long Paper 5000mm
|
Media Types
|
Plain Paper|Thin Paper|Thick Paper|Thicker Paper|Recycled Paper|Business Card|Plastic Card
|
Paper Weight
|
40 - 200gsm
|
Paper Thickness
|
0.08 ~ 0.28mm
|
Plastic Card Size
|
Length (ISO)|Length (ISO)::85.60mm|Width (ISO)|Width (ISO)::53.98mm
|
Plastic Card Thickness
|
Up to 1.32mm
|
Scanner functions
|
File Format Support
|
JPEG|PDF|TIFF
|
Standard Functions
|
Scan to::PC|Scan to::Image|Scan to::FTP|Scan to::File|Scan to::Network|Scan to::Network Folder|Scan to::SFTP|Scan to::USB|Scan to::SharePoint|HTTP(S)|Scan to::Email Server|Brother Web Connect|Brother Apps
|
Scan Profiles
|
25 Preset network
|
Direct Scan
|
Yes
|
Feed Control
|
Auto Start Scan|Continuous Scan|Document Separation|Resume Scan|Scan Preview|Separation Switch|Ultra Sonic Multi Feed Sensor
|
Drivers
|
Scan Drivers
|
Windows|Linux|Linux:: SANE|Visit support,brother,com for the full list of supported OS and to download the latest drivers and software,|Macintosh|Windows::Windows 11|Windows::Windows 10|Macintosh:: TWAIN|Macintosh:: AirPrint Scanning|Windows:: Windows 8.1|Macintosh::10.14.x|Windows::TWAIN|Windows::WIA|Windows:: Windows Server 2019, 2016, 2012R2, 2012 & 2008R2|Macintosh::macOS|Windows::ISIS
|
Fleet Management Tools
|
Fleet Management Tools
|
Embedded Web Server|LAN/WAN Management Software|LAN/WAN Management Software::BRAdmin Light|LAN/WAN Management Software::BRAdmin Professional
|
Software supplied - Windows
|
Windows Software::Brother iPrint&Scan|Macintosh Software::Brother iPrint&Scan Desktop|Windows Software|Macintosh Software|Utilities|Easy Setup|Windows Software::Tungsten PaperPort|Windows Software::Kofax Power PDF Standard v3|Windows Software::Remote Setup|Macintosh Software::Remote Setup|Windows Software::NewSoft Presto! Bizcard 6|Macintosh Software::NewSoft Presto! Bizcard 7|Windows Software::Brother ScanEssentials
|
Network
|
Wireless network security
|
SSL/TLS|SSL/TLS::IPPS|SSL/TLS::HTTPS|WEP 64/128 bit|WPA-PSK (TKIP/AES)|WPA2-PSK (TKIP/AES)|SMTP-AUTH|WPA3-SAE (AES) *Wi-Fi Direct supports WPA2-PSK (AES) only
|
Wired Network Security
|
SSL/TLS|SSL/TLS::IPPS|SSL/TLS::HTTPS|802,1x|802,1x::EAP-MD5|802,1x::EAP-FAST|802,1x::PEAP|802,1x::EAP-TLS|802,1x::EAP-TTLS|SMTP-AUTH|SNMP v3
|
Supplies And Accessories
|
Optional accessories
|
A3 Carrier Sheet|Roller Kit::Roller Kit PRK-A3001 ADS-4100, ADS-4300N, ADS-4500W, ADS-4700W
|
Carton Contents
|
Carton Contents
|
Device|Power supply cord|Quick setup guide|Product safety guide|Warranty|Detachable ADF|AC adapter|USB cable
|
Dimensions And Weights
|
Dimensions With Carton
|
319mm (W) x 243mm (D) x 320mm (H)
|

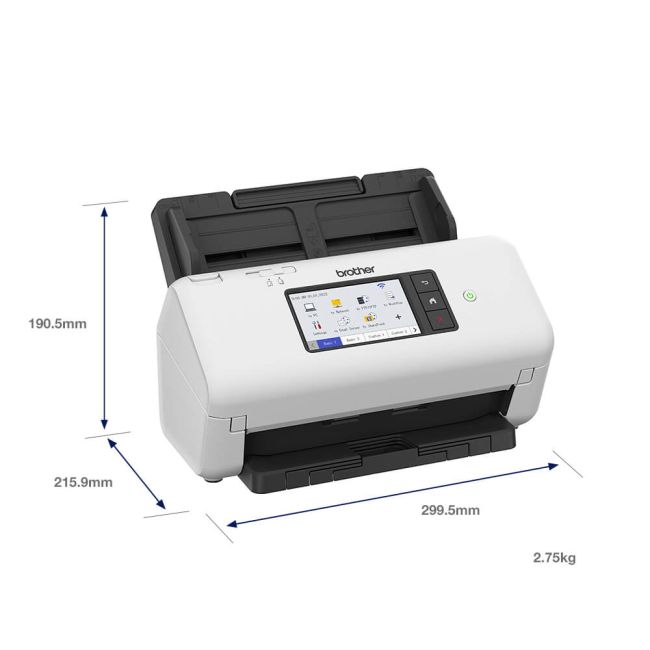

Dimensions Without Carton
|
299.5mm (W) x 215.9mm (D) x 190.5mm (H)
|
Operating Environment
|
Power Requirement
|
AC|DC|AC::100-240V AC 50/60Hz|DC::24V|DC::1.9A
|
Sound Power
|
Scanning|Scanning::<59dB
|
Operating
|
Degrees Celsius|Humidity %|Humidity %::20 - 80%|Degrees Fahrenheit|Degrees Celsius::5°C - 35°C|Degrees Fahrenheit::41°F - 95°F
|
Storage
|
Humidity %|Degrees Сelsius|Degrees Fahrenheit|Humidity %::10 - 90%|Degrees Сelsius::-20°C - 60°C|Degrees Fahrenheit:: -4°F - 140°F
|
Wake Up Time
|
USB connected, approx 1 second from sleep mode
|
Certification
|
WiFi Certified
|
Wi-Fi Direct|Wi-Fi Protected Setup™|WPA3™ Personal|WPA3™ Enterprise
|
Address Book
|
Address Book
|
Speed Dials|LDAP|Group Send
|

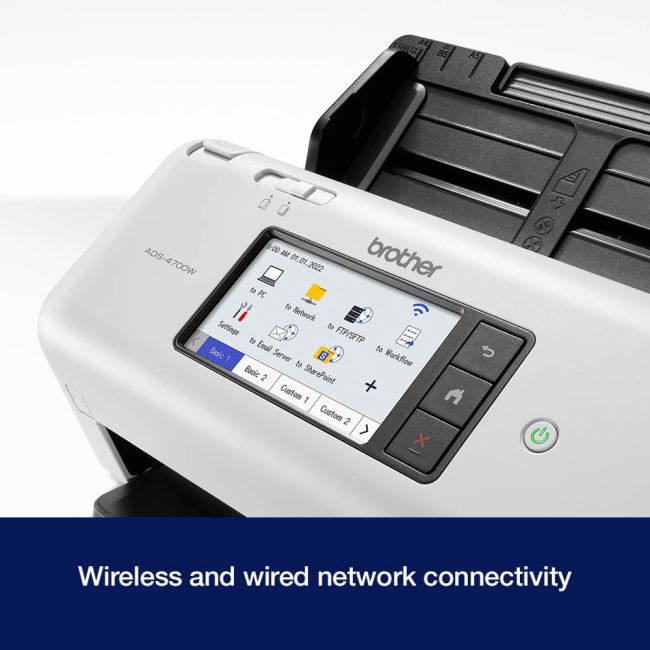

Connectivity
|
Local interface
|
USB 2.0 Host::Rear|SuperSpeed USB 3.0
|
Wireless network interface
|
2.4GHz: IEEE 802.11b/g/n
|
Wired Interface
|
10BaseT/100BaseTX
|
Wireless Setup Support
|
True
|
WiFi Direct
|
Yes
|
WiFiDirectTM
|
True
|
Wired Network Security
|
SSL/TLS|SSL/TLS::IPPS|SSL/TLS::HTTPS|802,1x|802,1x::EAP-MD5|802,1x::EAP-FAST|802,1x::PEAP|802,1x::EAP-TLS|802,1x::EAP-TTLS|SMTP-AUTH|SNMP v3
|
Wireless Network Security
|
SSL/TLS|SSL/TLS::IPPS|SSL/TLS::HTTPS|WEP 64/128 bit|WPA-PSK (TKIP/AES)|WPA2-PSK (TKIP/AES)|SMTP-AUTH|WPA3-SAE (AES) *Wi-Fi Direct supports WPA2-PSK (AES) only
|
Security Features
|
Security Features
|
E-mail Notifications|E-mail Reports|Firmware Updates|Secure Function Lock 3.0|Setting Lock|Port-based Network Access Control (IEEE 802,1x)|Kensington Lock|On-Premise Active Directory/LDAP Authentication|Secure Key Management
|
IPv4
|
DHCP|APIPA (AutoIP)|WINS/NetBIOS name resolution|DNSResolver|LLMNR responder|SNMPv1/v2c/v3|Web Services (Scan)|SNTPClient|mDNS|HTTP Server|HTTP/HTTPS Server|LDAP
|
IPv6
|
RA|DNS Resolver|mDNS|LLMNR responder|ICMPv6|SNTP Client|Web Services(Scan)|HTTP Server|HTTP/HTTPS Server
|
IP Filter
|
Yes
|

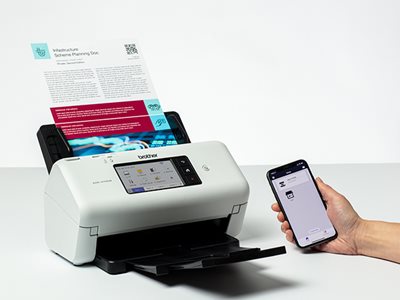

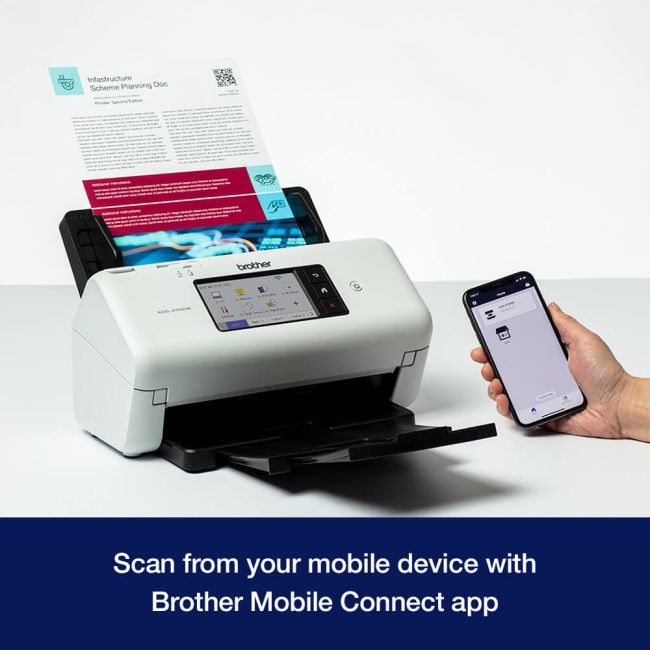

Mobile Connectivity
|
Mobile and Web Connectivity
|
Brother Apps|Web Connect|Brother Mobile Connect::Android|Brother Mobile Connect::iPad / iPhone|Scan to Workflow
|
Energy Consumption
|
Power Saving Modes
|
Sleep|Power Down|Auto power on after power outage
|
Caveats
|
*
|
(*3) Scan Speeds based on ISO/IEC 17991 (*3) Scan Speeds based on ISO/IEC 17991 (*3) Scan Speeds based on ISO/IEC 17991 (*3) Scan Speeds based on ISO/IEC 17991
|
