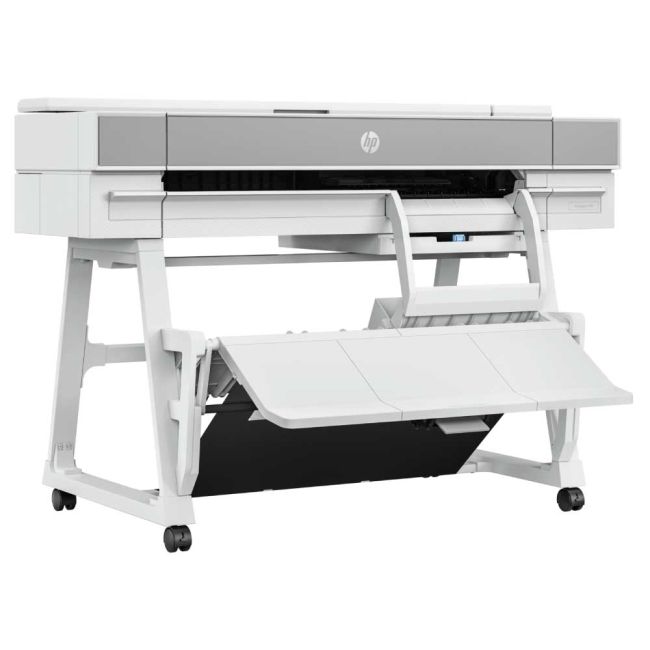

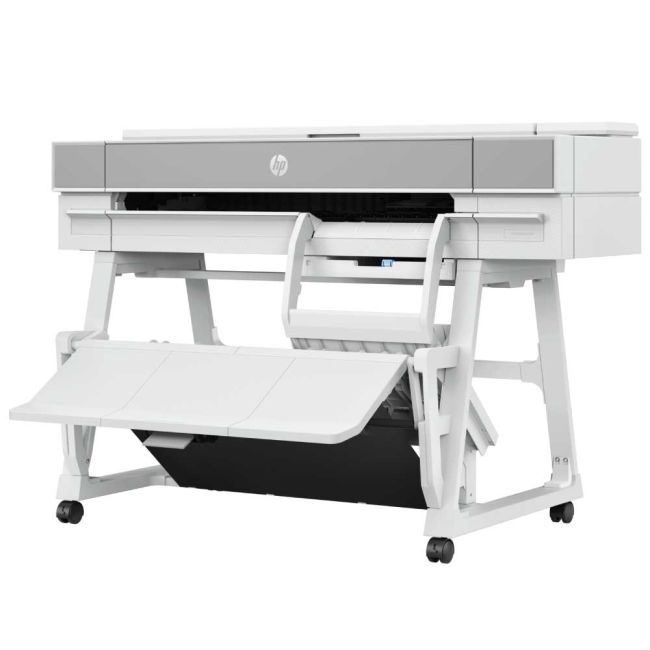

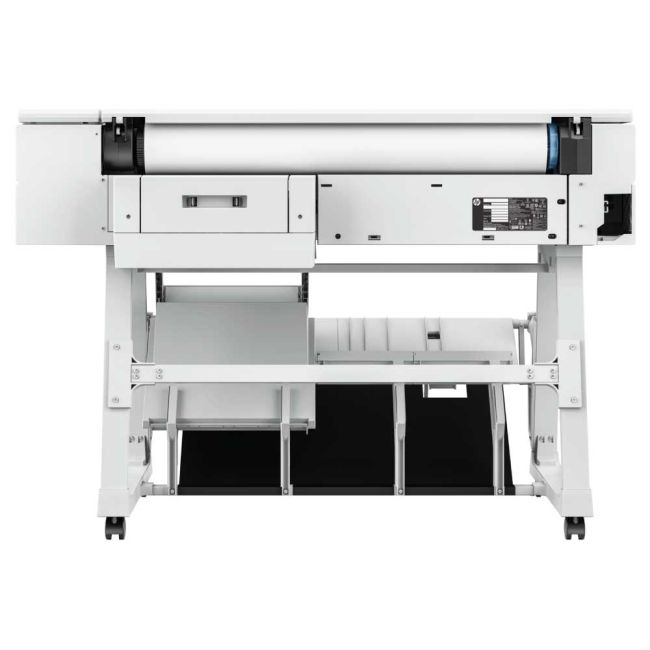

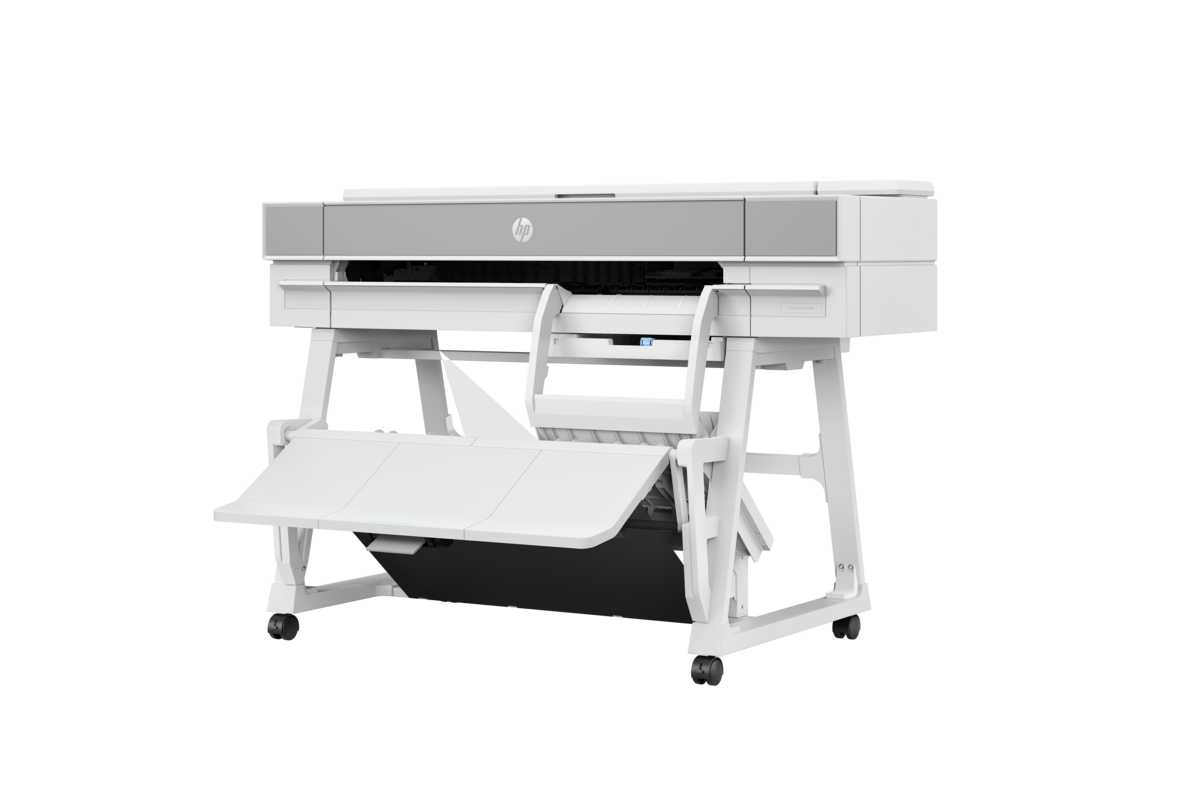

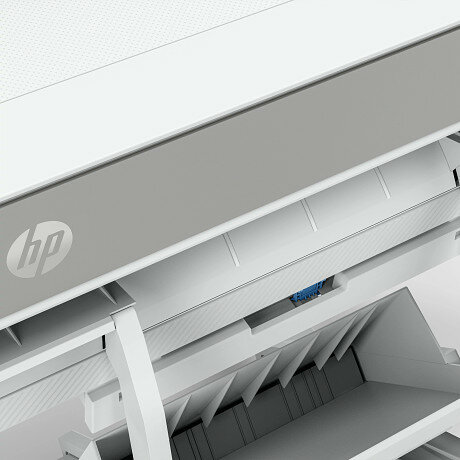

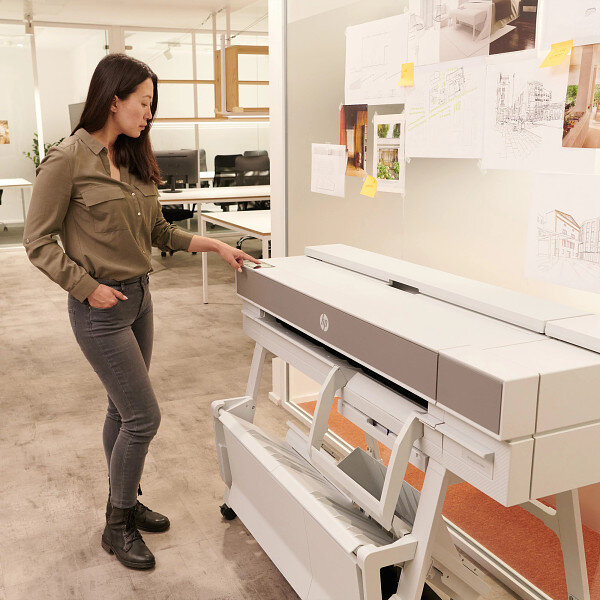

HP DesignJet T950 36" / A0 Colour Large Format Printer
Part No: 2Y9H1AFunctions | |
---|---|
Print quality color (best) | Up to 2400 x 1200 optimized dpi |
Print languages | TIFF, JPEG, URF, PDF, HP-GL/2, HP-RTL, CALS G4 |
Print technology | HP Thermal Inkjet |
Connectivity, standard | Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n |
Network ready | Standard |
Memory | 1 GB |
Internal Storage | None |
Storage | 2.7 GB reprint queue |
Finished output handling | Sheet feed, roll feed, front-loading input tray (100 sheet capacity), sheet organizer (50 sheet capacity5), stacker (40 sheet capacity5), automatic horizontal cutter |
Media types | Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (ID satin, ID gloss), self-adhesive (adhesive matte/gloss, adhesive polypropylene gloss), Polypropylene (matte) |
Media sizes supported |
Input tray: A4, A3 Manual feed: A4, A3, A2, A1, A0 |
Media sizes, custom |
Front-loading input tray: 210 x 279 to 305 x 457 mm Manual feed: 210 x 279 to 914 x 1676 mm |
Media weight, recommended |
60 to 280 g/m² (roll/manual feed) 64 to 220 g/m² (front-loading input tray) |
Power consumption | 35 W (printing), <5.5 W (ready), <2.5 W (sleep), <0.2 W (off). Auto-scheduled printer on/off usage. |
Power | Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1.2 A max |
Operating humidity range | 20 to 80% RH |
Non-Operating Humidity Range | 0 to 95% RH |
Operating temperature range | 5 to 40°C |
Energy star certified | Yes |
Product logos |
AirPrint CE marking ENERGY STAR EPEAT green UL ECOLOGO IPv6 Ready Mac Wi-Fi Certified Windows 11 Compatible HP Wolf Pro Security |
Safety |
USA and Canada (CSA certified) EU (RED Directive, EN 62368-1 compliant) Singapore (PSB) China (CCC) Mexico (NYCE) Argentina (IRAM) India (BIS) |
Dimensions (W x D x H) | 1407 x 720 x 967 mm |
Weight | 56 kg |
What's in the box | HP DesignJet T950 Printer, printhead, introductory ink cartridges, printer stand, spindle, guide, warranty flyer, power cord |
Print Cartridges/Bottle, Number | 4 (C, M, Y, mK) |
Manufacturer Warranty | Two-year limited hardware warranty. Warranty and support options vary by product, country and local legal requirements. |
Acoustic power emissions (active, printing) | 5.8 B(A) (operating), <3.4 B(A) (idle) |
Acoustic pressure emissions | 42 dB(A) (operating), <16 dB(A) (idle) |
Operating altitude | Up to 3000 m |
Package dimensions (W x D x H) | 1575 x 630 x 780 mm |
Media sizes standard (metric rolls) | 369 to 914 mm |
Electromagnetic compatibility |
Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (RED Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI) Korea (KCC) |
Environmental certification | ENERGY STAR, EPEAT, UL ECOLOGO® certified inks, CE marking (including WEEE, RoHS, REACH, ErP). In compliance with applicable WW RoHS materials restriction requirements. |
Ink drop |
6 pl (C, M, Y) 12.6 pl (mK) |
Ink types | Pigment-based (C, M, Y, mK) |
Line accuracy | ±0.1%6 |
Theoretical minimum line width | 0.02 mm (via raster driver) |
Roll external diameter | 140 mm |
Roll maximum input | 1 |
Roll maximum weight | 13 kg |
Media thickness maximum (metric) | Up to 0.3 mm |
Print multi-size files in one click | Yes |
Maximum optical density (black) | 15 L* min/1.7 D7 |
Supported Primary Applications |
Line drawings Renderings Presentations Maps Posters |
Print cartridge/bottle volume | 300 ml, 130 ml |
Printer drivers included | Raster driver for macOS and Windows, HP Click Driver for Windows 11, HP-GL/2 driver for Windows |
Print head nozzles |
1376 per color 5504 in total |
Print heads | 1 (C, M, Y, mK) |
Non-printable area (cut-sheet) | 5 x 5 x 5 x 5 mm |
Non-printable area (roll media) | 5 x 5 x 5 x 5 mm |
Printing path | Wi-Fi Direct, remote printing, HP Click App, HP Click Driver for Windows 11, Apple AirPrint and HP app for Android and iOS devices, Windows and macOS printer drivers, printing support for Chrome OS |
Print speed | 21 sec/page on A1, 120 A1 prints per hour8 |
Remote print enabled | Yes |
Security features | HP Wolf Pro Security, HP Secure Boot, Allowlisting, Security event logging, Disable network ports and protocols, SNMPv3, 802.1x compatibility, TLS/SSL, Semi-permanent-queue Erase, HP Web JetAdmin, HP Security Manager, SIEM Integration |
Software included | HP Click App, HP Click Driver for Windows 11, HP app for Windows, macOS, Android, and iOS |
Storage temperature range | -25 to 55°C |
Package weight | 84 kg |
Documents | HP DesignJet T950 36-in Printer |
Dynamic security enabled printer
Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.Easy job collection

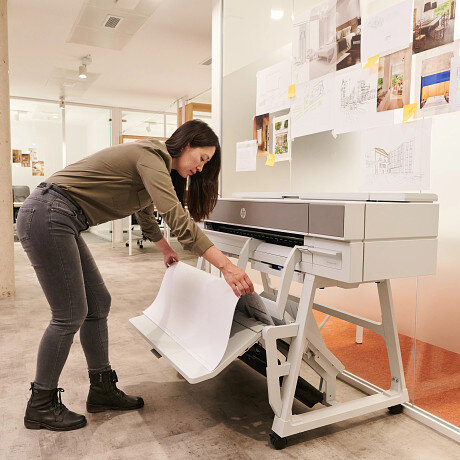

Pick up your jobs quickly and simply—stacker holds up to 40 pages flat for easy collection.HP Wolf Pro Security
Protect your printer and data from cyberthreats without any effort thanks to HP Wolf Pro Security.Reduce energy and ink waste
Auto schedule printer on/off usage and enjoy efficient ink maintenance routines.


- 2400 x 1200 DPI Print Resolution
- Up To 21 Seconds Per A1 Print
- Network, Wireless & Wi-Fi Direct
- Automatic Horizontal Cutter
- Roll Feed
- 100 Sheet Input Tray
- Windows, Mac & Chrome OS Compatible
