HP DesignJet T630 (2025 Version) A0 / 36" Colour Large Format Inkjet Printer

HP DesignJet T630 (2025 Version) A0 / 36" Colour Large Format Inkjet Printer

Part No: 5HB11D

Promotions

£105 Cashback

Functions	Print
Print quality color (best)	Up to 2400 x 1200 optimised dpi
Print languages	HP-GL/2, HP-RTL, CALS G4, JPEG, URF
Print technology	HP Thermal Inkjet
Connectivity, standard	Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
Memory	1 GB
Internal Storage	None
Finished output handling	Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter
Media types	Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
Media sizes supported	Auto sheet feeder: A4, A3 manual feed: A4, A3, A2, A1, A0
Media sizes, custom	Auto sheet feeder: 210 x 279 to 330 x 482 mm manual feed: 210 x 279 to 914 x 1897 mm
Media weight, recommended	60 to 280 g/m² (roll/manual feed) 60 to 220 g/m² (auto sheet feeder)
Power consumption	<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off)
Power	Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Operating humidity range	20 to 80% RH
Non-Operating Humidity Range	0 to 95% RH
Operating temperature range	5 to 40ºC
Energy star certified	Yes
Product logos	AirPrint ENERGY STAR EPEAT Climate+ Gold Carbon Neutral Gold IPv6 Ready Hi-Speed USB UL Validated Wi-Fi CERTIFIED Windows 11 Compatible
Safety	USA and Canada (CSA certified) EU (LVD, EN 60950-1 and EN 62368-1 compliant) Russia, Belarus, Khazakstan (EAC) Ukraine (UA) Singapore (PSB) China (CCC) Argentina (IRAM) India (BIS) Mexico (NYCE)
Dimensions (W x D x H)	1317 x 605 x 932 mm
Weight	34.7 kg
What's in the box	HP DesignJet T630 36-in Printer, printer stand, automatic sheet feeder, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
Print Cartridges/Bottle, Number	4 (C, M, Y, K) cartridges
Manufacturer Warranty	One-year limited hardware warranty
Acoustic power emissions (active, printing)	5.8 B(A) (operating), <3.4 B(A) (idle)
Acoustic pressure emissions	42 dB(A) (operating), <16 dB(A) (idle)
Operating altitude	Up to 3000 m
Package dimensions (W x D x H)	1470 x 575 x 590 mm
Media sizes standard (metric rolls)	279 to 914 mm
Electromagnetic compatibility	Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI) Certified as Class B product: Korea (KCC)
Environmental certification	ENERGY STAR WEEE EU RoHS EAEU RoHS REACH ErP EPEAT Climate+ Gold UL Ecologo
Ink drop	5.5 pl (C, M, Y) 12 pl (K)
Ink types	Dye-based (C, M, Y) pigment-based (K)
Line accuracy	±0.1%⁴
Theoretical minimum line width	0.02 mm
Roll external diameter	100 mm
Roll maximum input	1
Roll maximum weight	6.2 kg
Media thickness maximum (metric)	Up to 0.3 mm
Print multi-size files in one click	Yes
Maximum optical density (black)	8 L* min/2.10 D⁵
High capacity of page yield (colour)	20 ml of ink yields 101 A1 pages, taking into account maintenance routines⁶
Supported Primary Applications	Line drawings Presentations Renderings
Print cartridge/bottle volume	80 ml (K) 38 ml (K) 29 ml (C, M, Y) per cartridge
Printer drivers included	Raster driver for macOS and Windows, HP-GL/2 driver for Windows, HP Click Driver for Windows 11
Print head nozzles	1376
Print heads	1 (cyan, magenta, yellow, black)
Non-printable area (cut-sheet)	5 x 5 x 5 x 17 mm (manual feed) 5 x 5 x 5 x 5 mm (input tray)
Non-printable area (roll media)	5 x 5 x 5 x 5 mm
Printing path	HP Click App, HP Click Driver, HP app, Windows and MacOS printer drivers, HP-GL/2 driver for Windows, Apple AirPrint, Android Default Print Service, Printing support for ChromeOS, Email printing
Print speed	30 sec/page on A1, 76 A1 prints per hour⁷
Remote print enabled	Yes
Security features	HP Wolf Essential Security: Secure boot with HW root of trust Firmware Code Signature Validation Automatic FW Updates HTTPS Redirect enabled by default SNMPv1/2 read-only by default SNMPv3 disabled by default Write-protected memory HP Cartridge Security Unique password Disable USB ports TLS 1.2 802.1x IPv4 & IPv6 Compatibility CA/JD Compatibility
Software included	HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS
Storage temperature range	-25 to 55ºC
Package weight	56 kg
Documents	HP DesignJet T630 36-in Printer

2400 x 1200 DPI Print Resolution
USB, Network & Wireless Connection
Up to 30 Seconds For An A1 Colour Print
1 GB Memory
Print Up To 280gsm
Windows & Mac Compatible

Order in the next 15 hours 9 minutes for Wednesday delivery

HP DesignJet T630 (2025 Version) A0 / 36" Colour Large Format Inkjet Printer

£1,677.75ex VAT£2,013.30inc VAT

Qty:

20 in stock

Product Spec

Memory:: 1 GB
Disc Printing:: No
Dimensions W x D x H:: 1317 x 605 x 932mm
Weight (Kg):: 34.7
Max Paper Weight:: 280gsm
Emulation:: HP-GL/2, HP-RTL, CALS G4, JPEG, URF
Borderless Printing:: No
Mono or Colour:: Colour
Duplex Scan:: No
Barcode Printing:: No
Functions:: Print Only
GTIN:: 00198701035336
BarCode:: 0198701035336
Compatibility:: Mac, Windows
Connectivity:: Network, USB, Wireless
Printer Type:: Inkjet
Max Paper Size:: A0
Print DPI:: 2400 x 1200
Manufacturer:: HP

Product Description

Large format printing is made incredibly easy with the HP DesignJet T630 36" Colour Large Format Inkjet Printer. This large-format device prints multi-size documents without compromising on quality. Perfect for construction planning, architects, graphic designers and engineers, this sustainable printer is time-saving and versatile and can be used in a multitude of business settings from offices to studios.

If you're well-acquainted with large scale printing, then you may be used to hovering around the printer waiting for your piece to print. The HP DesignJet T630 36" Colour Large Format Inkjet Printer keeps printing limbo to a minimum with printing being as quick as 30 seconds per A1/D plot.

From preparation to print, this contemporary large-format printing solution is 2x faster with only three clicks performing the action as opposed to up to 11 with other competing products. Print from many formats including HP-GL/2, HP-RTL, CALS G4, JPEG and URF, which is ideal for CAD printing.

Manufacturer's Description

Manufacturer Description

HP DesignJet T630 36-in Printer

Dynamic security enabled printer

Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.

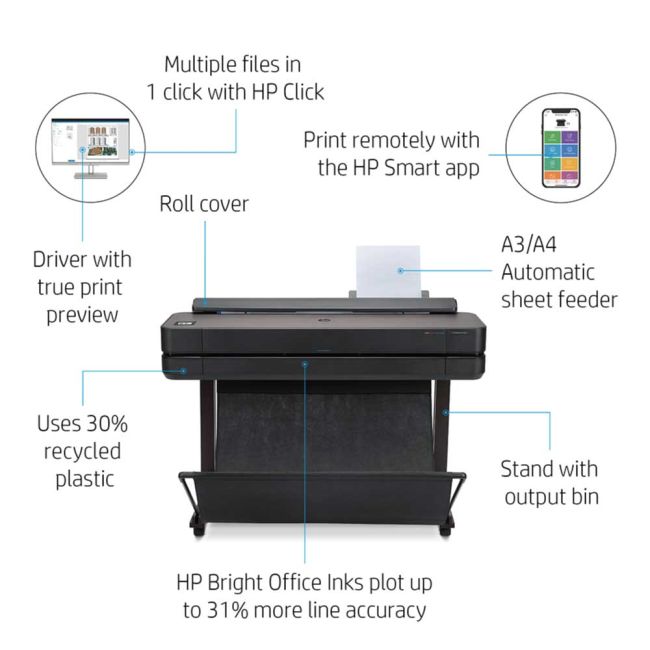

INTUITIVE—Easy, effortless printing

Print multi-size A3 and A0 projects automatically, without manually switching the media source.

RESPONSIBLY DESIGNED—Reduce energy and plastic use

Save 65% energy¹ with the printer on/off auto scheduler and enjoy efficient ink maintenance routines².

OPTIMIZED—Fits the way you work

Save space with the world's smallest plotters³ designed to fit your office, including a built-in stand.

914 mm

Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

Functions	Print
Print quality color (best)	Up to 2400 x 1200 optimised dpi
Print languages	HP-GL/2, HP-RTL, CALS G4, JPEG, URF
Print technology	HP Thermal Inkjet
Connectivity, standard	Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
Memory	1 GB
Internal Storage	None
Finished output handling	Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter
Media types	Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
Media sizes supported	Auto sheet feeder: A4, A3 manual feed: A4, A3, A2, A1, A0
Media sizes, custom	Auto sheet feeder: 210 x 279 to 330 x 482 mm manual feed: 210 x 279 to 914 x 1897 mm
Media weight, recommended	60 to 280 g/m² (roll/manual feed) 60 to 220 g/m² (auto sheet feeder)
Power consumption	<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off)
Power	Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Operating humidity range	20 to 80% RH
Non-Operating Humidity Range	0 to 95% RH
Operating temperature range	5 to 40ºC
Energy star certified	Yes
Product logos	AirPrint ENERGY STAR EPEAT Climate+ Gold Carbon Neutral Gold IPv6 Ready Hi-Speed USB UL Validated Wi-Fi CERTIFIED Windows 11 Compatible
Safety	USA and Canada (CSA certified) EU (LVD, EN 60950-1 and EN 62368-1 compliant) Russia, Belarus, Khazakstan (EAC) Ukraine (UA) Singapore (PSB) China (CCC) Argentina (IRAM) India (BIS) Mexico (NYCE)
Dimensions (W x D x H)	1317 x 605 x 932 mm
Weight	34.7 kg
What's in the box	HP DesignJet T630 36-in Printer, printer stand, automatic sheet feeder, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
Print Cartridges/Bottle, Number	4 (C, M, Y, K) cartridges
Manufacturer Warranty	One-year limited hardware warranty
Acoustic power emissions (active, printing)	5.8 B(A) (operating), <3.4 B(A) (idle)
Acoustic pressure emissions	42 dB(A) (operating), <16 dB(A) (idle)
Operating altitude	Up to 3000 m
Package dimensions (W x D x H)	1470 x 575 x 590 mm
Media sizes standard (metric rolls)	279 to 914 mm
Electromagnetic compatibility	Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI) Certified as Class B product: Korea (KCC)
Environmental certification	ENERGY STAR WEEE EU RoHS EAEU RoHS REACH ErP EPEAT Climate+ Gold UL Ecologo
Ink drop	5.5 pl (C, M, Y) 12 pl (K)
Ink types	Dye-based (C, M, Y) pigment-based (K)
Line accuracy	±0.1%⁴
Theoretical minimum line width	0.02 mm
Roll external diameter	100 mm
Roll maximum input	1
Roll maximum weight	6.2 kg
Media thickness maximum (metric)	Up to 0.3 mm
Print multi-size files in one click	Yes
Maximum optical density (black)	8 L* min/2.10 D⁵
High capacity of page yield (colour)	20 ml of ink yields 101 A1 pages, taking into account maintenance routines⁶
Supported Primary Applications	Line drawings Presentations Renderings
Print cartridge/bottle volume	80 ml (K) 38 ml (K) 29 ml (C, M, Y) per cartridge
Printer drivers included	Raster driver for macOS and Windows, HP-GL/2 driver for Windows, HP Click Driver for Windows 11
Print head nozzles	1376
Print heads	1 (cyan, magenta, yellow, black)
Non-printable area (cut-sheet)	5 x 5 x 5 x 17 mm (manual feed) 5 x 5 x 5 x 5 mm (input tray)
Non-printable area (roll media)	5 x 5 x 5 x 5 mm
Printing path	HP Click App, HP Click Driver, HP app, Windows and MacOS printer drivers, HP-GL/2 driver for Windows, Apple AirPrint, Android Default Print Service, Printing support for ChromeOS, Email printing
Print speed	30 sec/page on A1, 76 A1 prints per hour⁷
Remote print enabled	Yes
Security features	HP Wolf Essential Security: Secure boot with HW root of trust Firmware Code Signature Validation Automatic FW Updates HTTPS Redirect enabled by default SNMPv1/2 read-only by default SNMPv3 disabled by default Write-protected memory HP Cartridge Security Unique password Disable USB ports TLS 1.2 802.1x IPv4 & IPv6 Compatibility CA/JD Compatibility
Software included	HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS
Storage temperature range	-25 to 55ºC
Package weight	56 kg
Documents	HP DesignJet T630 36-in Printer

^footnote1 The percentage reductions in energy consumption are based on tests conducted by HP, 2024. Data based on the implementation of auto-scheduled on/off usage in various printer models, measured on a monthly basis. Actual savings may vary depending on the specific usage patterns, printer models, and environmental conditions.

^footnote2 Use up to 96% less ink for routine maintenance vs. competitor. Based on HP internal testing, June 2024, comparing the HP DesignJet T200 Printer series and Canon iPF TM printer series in terms of ink used during routine printhead cleanings.

^footnote3 Based on competitive comparison of operational footprint. Test performed by Sogeti and commissioned by HP in May 2024.

^footnote4 ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC, 50-60% relative humidity, on A0 printing material in Best or Normal mode with HP Heavyweight Coated roll feed and Original HP inks.

^footnote5 With HP Premium Instant Dry Photo Gloss media with Original HP inks.

^footnote6 Calculation done taking into account two normal printhead cleanings and ink on an A1 CAD drawing with black and colour lines and a pixel coverage of 5.2%.

^footnote7 Mechanical printing time. Printed in Fast mode with Economode on, using HP Bright White Inkjet Paper (bond) and Original HP inks. Actual performance may vary based on a variety of conditions, including but not limited to network configuration.

What's in the box

HP DesignJet T630 Printer
User Guide
Software CD
Starter Inks
Power Cable
Warranty Information
Spindle
Printhead
