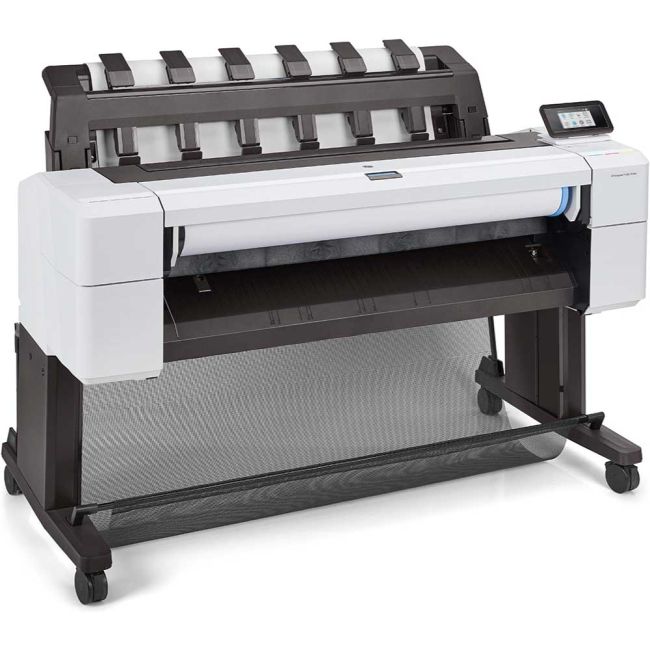

HP DesignJet T1600 36" / A0 Colour Large Format Inkjet Printer

HP DesignJet T1600 36" / A0 Colour Large Format Inkjet Printer

Part No: 3EK10A

slide {0} of {1}, zoom in, HP OSF and Jump Trading: Enabling better patient outcomes

4:22

slide {0} of {1}, zoom in, HP DesignJet T1600 36-in Printer

Key Specifications

Model size

914 mm

Memory

128 GB (file processing)¹

Hard Drive

500 GB self-encrypting

Print speed maximum

180 A1/hr, 19.3 sec/A1²

Resolution

Up to 2400 x 1200 optimized dpi

Product overview

Keep the project momentum. With radically simple solutions and the easiest PDF printing³, it's easy for everyone to get great results every time. Meet deadlines with the fastest print speed in the most compact, quiet printer.⁴

EXPERIENCE SIMPLICITY—At the high-end

Keep your teams working productively with the most compact, quiet printer.⁴ Radically simple solutions and the easiest PDF printing³ make it easy to get the right results. Easily print and share jobs from mobile devices with the HP Smart app.

UNLEASH PERFORMANCE—To turn design into delivery

Progress your work at every project stage. Meet deadlines with the fastest print speed⁴ and integrated automatic print stacking. Display the finest details from lines to bold colors with the unique Adobe PDF Print Engine.⁵

SECURE – World's most secure large-format printer⁶

You're in control with the world's most secure large-format printer providing the best network protection.⁶ You decide who accesses the printer and confidential documents. Keep your fleet secure at any time.

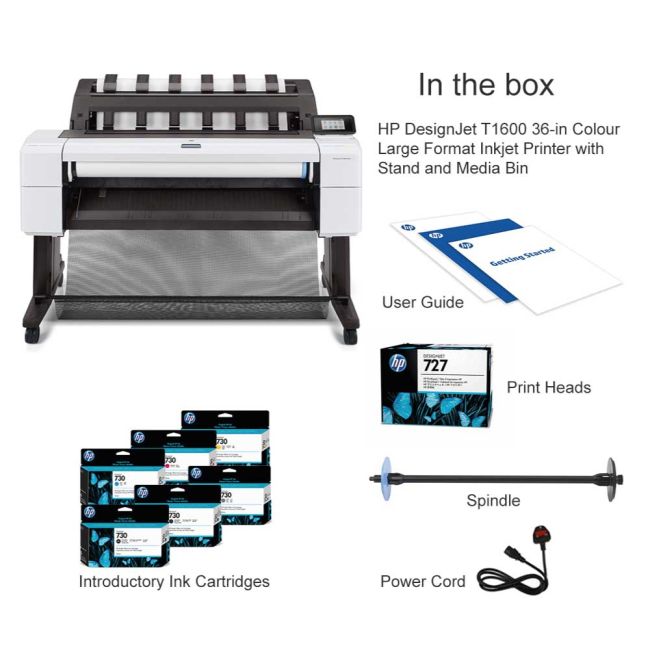

In the box

HP DesignJet T1600 Printer, printer stand and media bin, spindle, printheads, introductory ink cartridges, user guide, power cords

Model size	914 mm
Print speed	180 A1/hr, 19.3 sec/A1²
Memory	128 GB (file processing)¹
Internal Storage	500 GB self-encrypting
Print quality color (best)	Up to 2400 x 1200 optimized dpi
Print technology	HP Thermal Inkjet
Print Cartridges/Bottle, Number	6 (C, M, Y, G, pK, mK)
Ink types	Dye-based (C, M, Y, pK, G) pigment-based (mK)
Non-printable area (cut-sheet)	3 x 22 x 3 x 3 mm
Line accuracy	±0.1%⁷
Finished output handling	Sheet feed, automatic front-loading roll feed, integrated output stacker⁸, media bin, automatic horizontal cutter
Media types	Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, colored), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl)
Media weight, recommended	60 to 328 g/m²
Media sizes standard (metric rolls)	279 to 914 mm
Roll external diameter	140 mm
Media thickness	Up to 19.7 mil
HP ePrint capability	Yes
Connectivity, standard	Gigabit Ethernet (1000Base-T), Wi-Fi (with optional Jetdirect accessory), supporting the following standards: TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, WS Discovery, Embedded Web Server (HTTP, HTTPS), IPsec, SMTP (email), Raw IP printing (9100), LPD, IPP, WS print, NTLM v2, SMBv3, SSL/TLS, 802.1X authentication (LEAP, PEAP, EAP-TLS), DFS
Print languages	HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4
Power consumption	100 W (printing) <36 W (ready) <10 W (sleep) 0.3 W (off)
Operating temperature range	5 to 35ºC

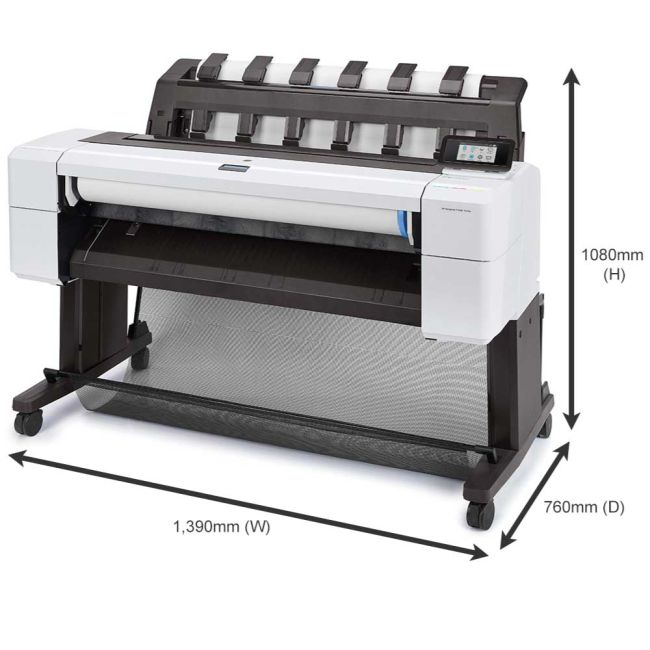

Dimensions (W x D x H)	1390 x 760 x 1080 mm
Weight	82 kg
Manufacturer Warranty	Two-year limited hardware warranty. Warranty and support options vary by product, country and local legal requirements.
Software included	HP Click, HP mobile, ePrint and iOS/Android support plus the HP Smart app for mobile, HP Web Jetadmin, HP JetAdvantage Security Manager

HP DesignJet T1600 Printer series

2400 x 1200 DPI Print Resolution
Network Connection
128 GB Memory
Max Paper Weight: 328gsm
500 GB Hard Drive
Windows & Mac Compatible

Order in the next 13 hours 25 minutes for Monday delivery

HP DesignJet T1600 36" / A0 Colour Large Format Inkjet Printer

£3,268.38ex VAT£3,922.06inc VAT

Qty:

low on stock

Product Spec

Memory:: 128 GB
Disc Printing:: No
Dimensions W x D x H:: 1390 x 760 x 1080mm
Weight (Kg):: 82
Max Paper Weight:: 328gsm
Emulation:: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4
Hard Drive Size:: 500 GB
Borderless Printing:: No
Duplex Scan:: No
Barcode Printing:: No
Functions:: Print Only
GTIN:: 00194441078855
BarCode:: 0194441078855
Mono or Colour:: Colour
Compatibility:: Mac, Windows
Connectivity:: Network
Printer Type:: Inkjet
Max Paper Size:: A0
Print DPI:: 2400 x 1200
Manufacturer:: HP

Product Description

A powerful tool for professionals, the HP DesignJet T1600 36-in Colour Large Format Inkjet Printer offers extraordinary performance that is sure to make your work easier. Equipped with the latest technology that is detail-oriented, it guarantees you high-quality prints in no time at all. Perfect for maps, orthophotos, renderings, presentations and line drawings, this printer will spice up your projects and help you improve your business.

Working with 6 large 300ml cartridges, this printer uses dye and pigment-based HP Bright Office Inks to bring you a wider colour gamut. Achieving a print resolution of up to 2400 x 1200 optimised DPI, the single printhead HP Thermal Inkjet technology guarantees stellar line accuracy, bold texts and graphics. For more natural shades and highlighted details, use the Adobe PDF Print Engine.

Dynamic Security Enabled Printer

Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges. Learn more about HP Dynamic Printer Security

Manufacturer's Description

Manufacturer Description

slide 1 of 21, show larger image, hp osf and jump trading: enabling better patient outcomes

slide 1 of 21, zoom in, hp osf and jump trading: enabling better patient outcomes

4:22

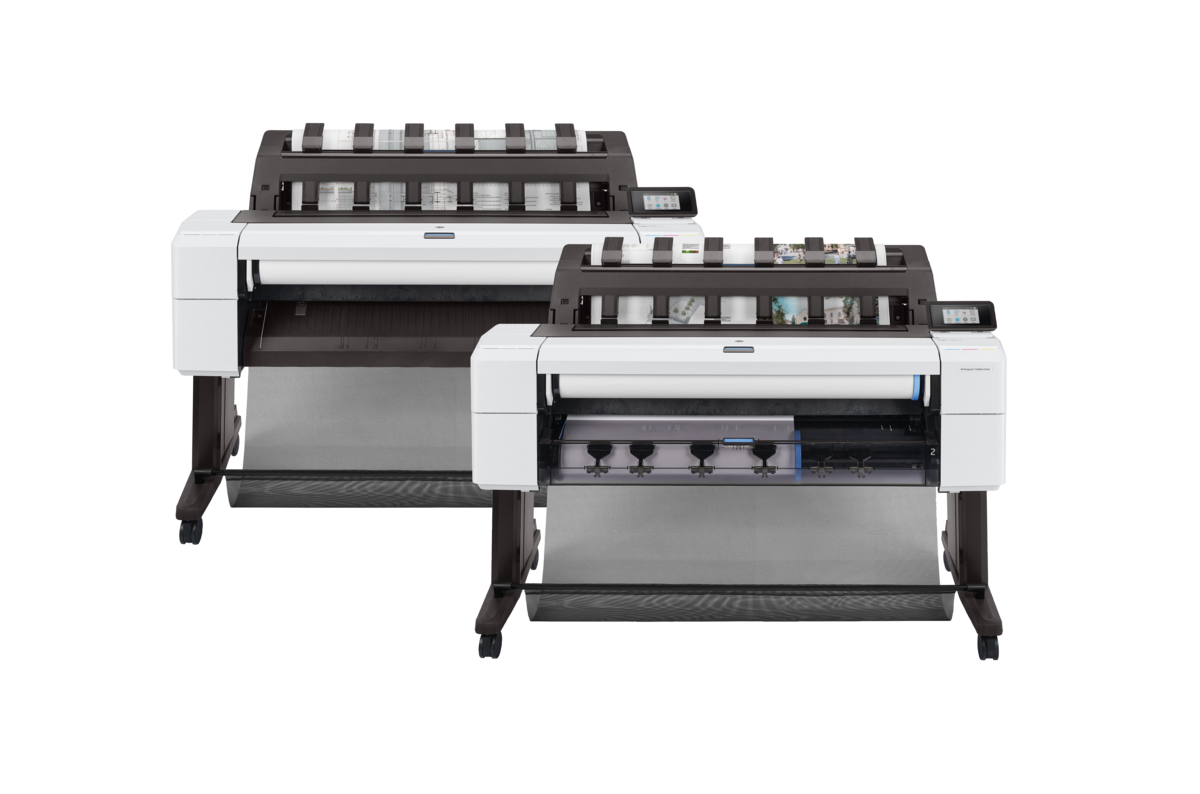

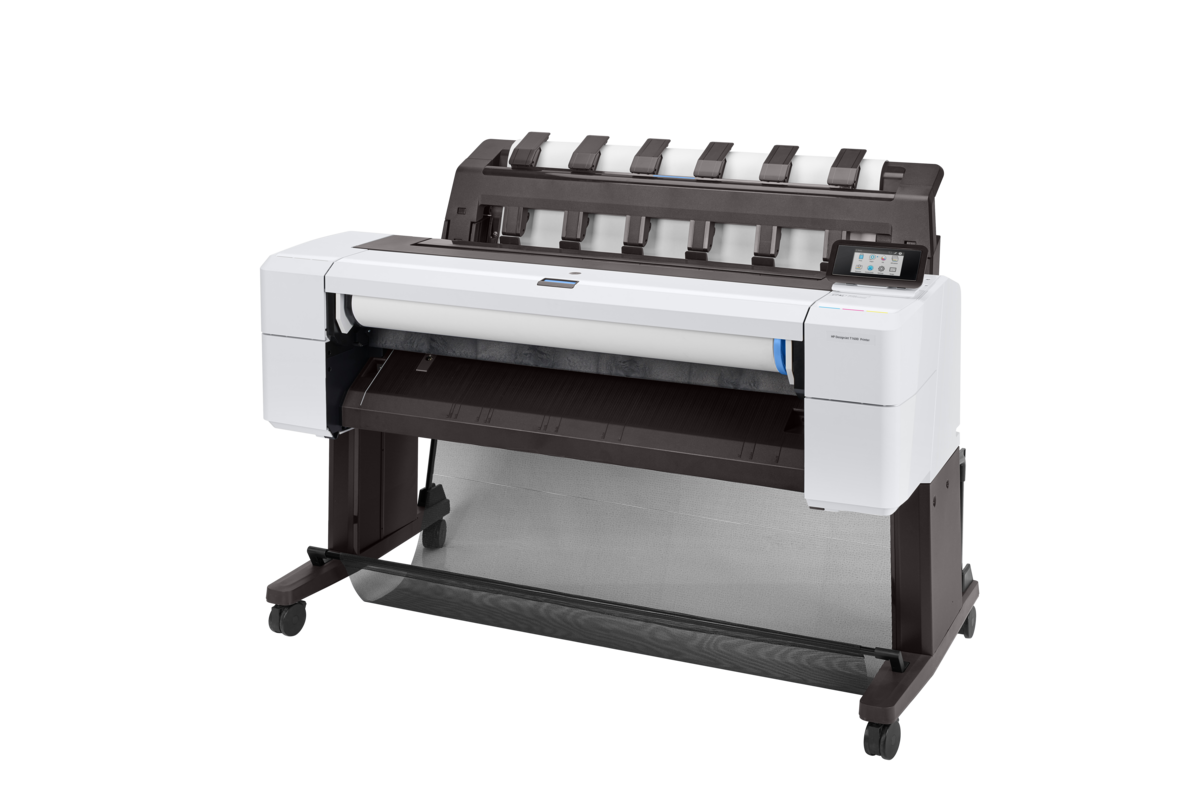

slide 2 of 21, zoom in, hp designjet t1600 36-in printer

slide 3 of 21, zoom in, hp designjet t1600 36-in printer

slide 4 of 21, zoom in, hp designjet t1600 36-in printer

slide 5 of 21, zoom in, hp designjet t1600 36-in printer

slide 6 of 21, zoom in, hp designjet t1600 36-in printer

Key Specifications

Model size

914 mm

Memory

128 GB (file processing)¹

Hard Drive

500 GB self-encrypting

Print speed maximum

180 A1/hr, 19.3 sec/A1²

Resolution

Up to 2400 x 1200 optimized dpi

Product overview

EXPERIENCE SIMPLICITY—At the high-end

UNLEASH PERFORMANCE—To turn design into delivery

SECURE – World's most secure large-format printer⁶

In the box

HP DesignJet T1600 Printer, printer stand and media bin, spindle, printheads, introductory ink cartridges, user guide, power cords

Specifications

Model size	914 mm
Print speed	180 A1/hr, 19.3 sec/A1²
Memory	128 GB (file processing)¹
Internal Storage	500 GB self-encrypting
Print quality color (best)	Up to 2400 x 1200 optimized dpi
Print technology	HP Thermal Inkjet
Print Cartridges/Bottle, Number	6 (C, M, Y, G, pK, mK)
Ink types	Dye-based (C, M, Y, pK, G) pigment-based (mK)
Non-printable area (cut-sheet)	3 x 22 x 3 x 3 mm
Line accuracy	±0.1%⁷
Finished output handling	Sheet feed, automatic front-loading roll feed, integrated output stacker⁸, media bin, automatic horizontal cutter
Media types	Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, colored), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl)
Media weight, recommended	60 to 328 g/m²
Media sizes standard (metric rolls)	279 to 914 mm
Roll external diameter	140 mm
Media thickness	Up to 19.7 mil
HP ePrint capability	Yes
Connectivity, standard	Gigabit Ethernet (1000Base-T), Wi-Fi (with optional Jetdirect accessory), supporting the following standards: TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, WS Discovery, Embedded Web Server (HTTP, HTTPS), IPsec, SMTP (email), Raw IP printing (9100), LPD, IPP, WS print, NTLM v2, SMBv3, SSL/TLS, 802.1X authentication (LEAP, PEAP, EAP-TLS), DFS
Print languages	HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4
Power consumption	100 W (printing) <36 W (ready) <10 W (sleep) 0.3 W (off)
Operating temperature range	5 to 35ºC
Dimensions (W x D x H)	1390 x 760 x 1080 mm
Weight	82 kg
Manufacturer Warranty	Two-year limited hardware warranty. Warranty and support options vary by product, country and local legal requirements.
Software included	HP Click, HP mobile, ePrint and iOS/Android support plus the HP Smart app for mobile, HP Web Jetadmin, HP JetAdvantage Security Manager

Documents

Footnotes

^footnote1 Based on 4 GB RAM.

^footnote2 Mechanical printing time. Printed in Fast mode with Economode on, using HP Bright White Inkjet Paper (bond) and Original HP inks.

^footnote3 Compared to Canon Direct Print & Share and based on “One Click Print.” Once image is selected, one-click printing when printing the entire file without any modifications to the print settings. Applicable to PDF, JPEG, TIFF, DWF, HP-GL/2 files.

^footnote4 Based on comparable large-format inkjet printers under $12,000 (USD) as of December, 2018. IDC figures show that Canon, Epson, and HP combine for 98% share of this printing category worldwide as of Q3, 2018. Fastest print speed based on sustained printing speeds. Most compact footprint calculated using all devices in "Operation mode" with an Open Basket and the arm of the Screen (front panel) spread out to enable user interaction. Most quiet according to internal HP testing of sound pressure level during operating mode (plain paper, line drawing, Normal mode) compared to published specification of competitive printers. Percentage calculations of noise based on lineal units vs. Canon TX-3000 published spec of 51dB(A).

^footnote5 Requires purchase of the HP DesignJet T1600 PostScript^® models or optional HP DesignJet PostScript/PDF Upgrade Kit. Highest accuracy and finest details compared to printers without the embedded Adobe technology excluding RIP users, and based on internal HP testing with PDF files containing special fonts, PANTONE^® colors, smooth shading, overprint, and transparencies that can only be reproduced using the Adobe PDF Print Engine. The Adobe PDF Print Engine (APPE) is Adobe’s high speed, high fidelity print platform. To learn more, visit https://www.adobe.com/products/pdfprintengine.html

^footnote6 Advanced embedded security features are based on HP review of 2019 published embedded security features of competitive printers, as of February 2019.

^footnote7 ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC, 50-60% relative humidity, on A0 HP Matte Film in Best or Normal mode with Original HP inks

^footnote8 From A4 to A0, with up to 100 A1-size capacity.
