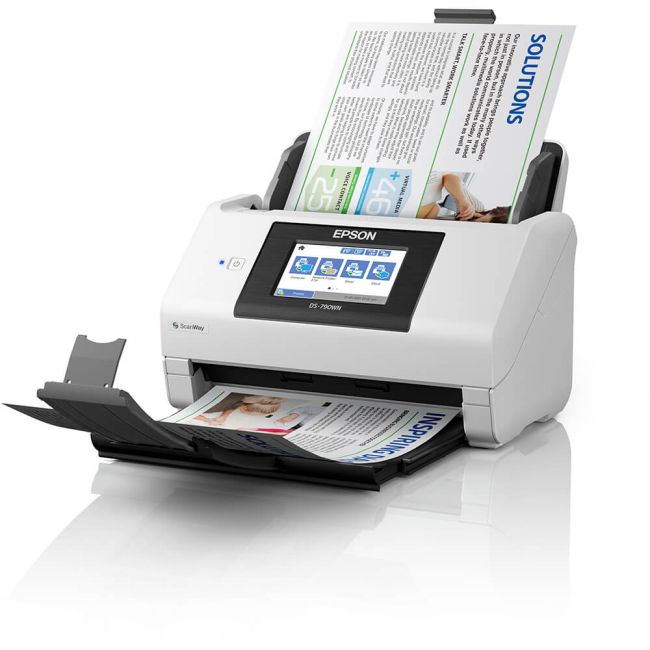

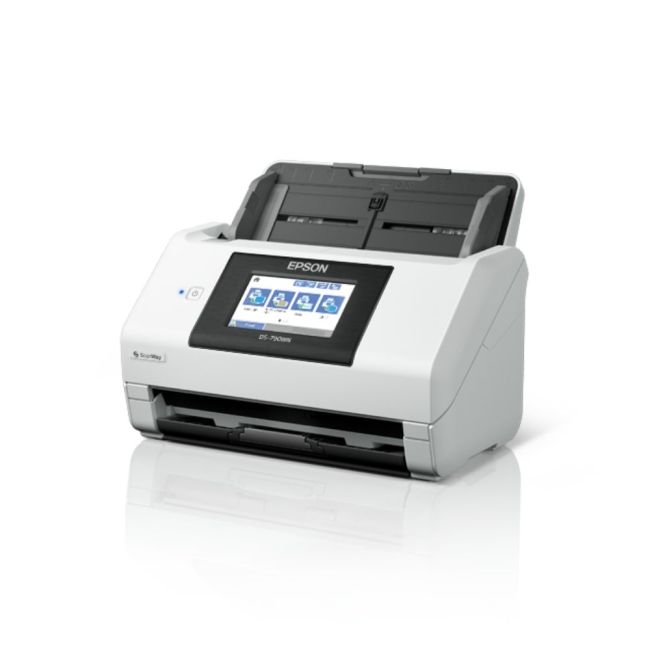

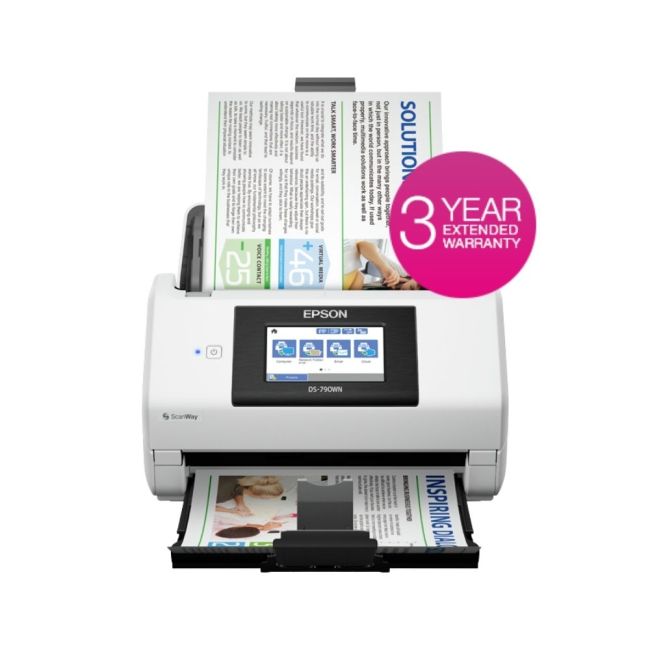

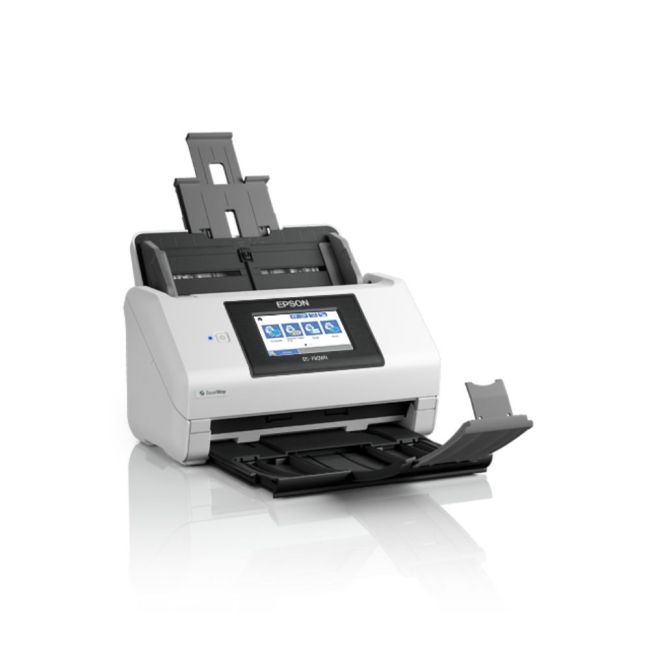

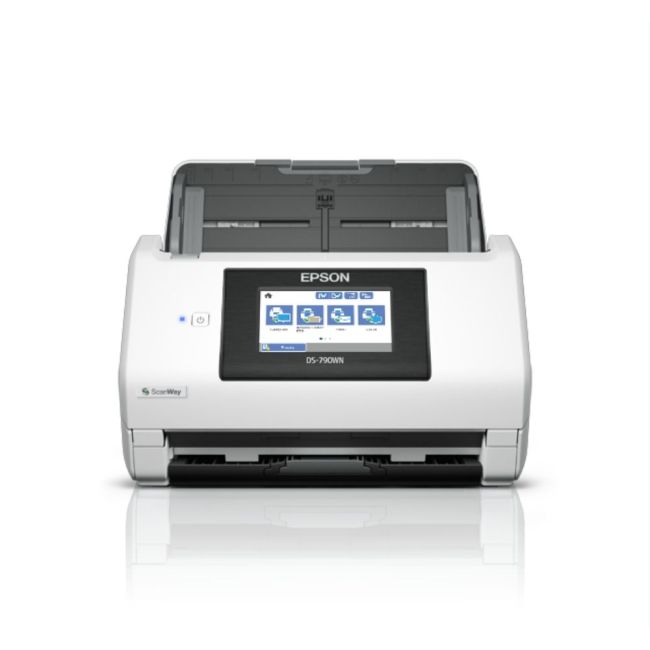

Epson WorkForce DS-790WN A4 Document Sheetfed Scanner

Epson WorkForce DS-790WN A4 Document Sheetfed Scanner

Part No: B11B265401BY

Up to 45 PPM Scan Speed
USB 3.0, Network & Wireless Connection
100 Sheet DADF
Automatic Double Sided Scan
10.9cm Colour Touch Screen

£441.36ex VAT£529.63inc VAT

Qty:

low on stock

Product Spec

Display Screen:: 10.9cm Colour Touchscreen
Disc Printing:: No
Dimensions W x D x H:: 296 x 212 x 217 mm
Max Paper Weight:: 413gsm
Borderless Printing:: No
ADF:: 100 Sheet
Duplex Scan:: Yes
Scan DPI:: 600 x 600
Scan Speed (PPM):: 45
Scanner Type:: Sheetfed
Barcode Printing:: No
Functions:: Scan Only
GTIN:: 08715946697642
BarCode:: 8715946697642
Compatibility:: Mac, Windows
Max Paper Size:: A4
Manufacturer:: Epson

Product Description

WorkForce DS790WN A4 Sheetfed Network Scanner

High-speed network scanner with stand-alone features for efficient digitalisation and distribution of documents in multiuser environments

Easy-to-use A4 high-speed auto-duplex network scanner. Save files directly to a variety of destinations without the need to connect to a PC. System admins can take control of the device remotely and set up and authenticate user accounts using LDAP. The 10.9cm touchscreen allows control panel configuration for increased efficiency.

Advanced authentication
Prevent unauthorised access to the scanner or use of unauthorised features with a range of authentication methods including ID cards (card reader not included) login credentials or pin codes. For advanced security options make use of Epson's WebConfig and Document Capture Pro Server - Authentication Edition.

ScanWay - standalone scanning
Route scanned documents directly to the right destination using the 10.9cm colour touchscreen without the need to connect to a PC. Scan direct to network and cloud folders email addresses or USB memory stick.

Manufacturer's Description

Manufacturer Description

slide {0} of {1}, zoom in, WorkForce DS-790WN

Technology
Scanner Type	Sheetfed Scanner
Optical Resolution	600 DPI x 600 DPI (Horizontal x Vertical)
ADF Minimum Document Size	50.8 mm x 50.8 mm (Horizontal x Vertical)

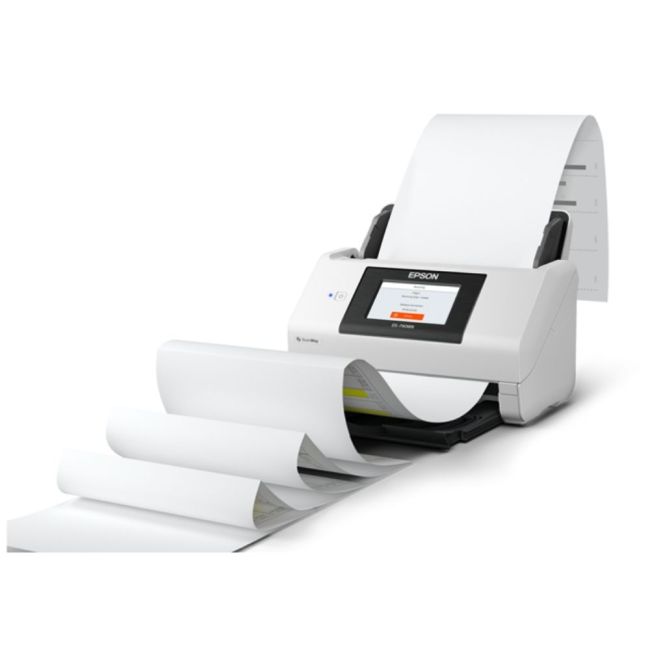

ADF Maximum Document Size	215.9 mm x 6,096 mm (Horizontal x Vertical)
Paper Formats	A4 (21.0x29.7 cm), A5 (14.8x21.0 cm), A6 (10.5x14.8 cm), A8, B5, B6, Letter, Legal, C6 (Envelope), DL (Envelope), Postcard, Business cards, Plastic cards, User defined, A3 with stitching function
Scanning color depth	Input: 30 Bits Color / 10 Bits Monochrome , Output: 24 Bits Color / 8 Bits Monochrome
Ultrasonic Sensor	Yes
Category	Network & Wifi, High Capacity, General Office
Scanner
Light Source	ReadyScan LED technology
Output Resolution	75, 100, 150, 200, 240, 300, 600 DPI
Panel	Type: Color, Touchscreen, Diagonal:10.9 cm
Scan speed
Scanning Speed	Monochrome:45 pages/min - Color:45 pages/min measured with Size: A4 , Resolution: 200 / 300 dpi, Monochrome:90 image/min - Color:90 image/min measured with Size: A4 , Resolution: 200 / 300 dpi
Paper / Media Handling
Paper Setting Capacity	100 Sheets
Paper weight	Auto loading: 27 - 413 g/m²
Automatic Document Feeder Type	Single pass dual scanning
Reliability Daily Duty Cycle	7,000 pages
Automatic Document Feed	Standard (built-in)
Duplex Scan	Yes
Scanning Features
Features	Standalone operation, Skip blank page, Automatic de-skew, Auto-rotation, Text enhancement, Barcode Recognition, Full Zonal OCR
Output formats	BMP, JPEG, TIFF, multi-TIFF, PDF, searchable PDF, secure PDF, PDF/A, PNG
Advanced document integration	Scan to Email, Scan to FTP, Scan to Microsoft SharePoint^®, Scan to Web folders, Scan to Network folders, Scan to USB
Scanning Volume	7,000 Pages per day
Connectivity
Interfaces	Wi-Fi Direct, USB host, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Wireless LAN b/g/g 25GHz, USB 3.2 Gen 1x1
General
Supply Voltage	AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions	296‎ x 212 x 217 mm (Width x Depth x Height)
Product weight	3.7 kg
Drivers	TWAIN, Epson Scan2 (TWAIN), SANE (Linux), WIA (Windows), ICA (Mac), ISIS (Windows)
Included Software	Document Capture Pro, Document Capture Pro Server 2.0, Document Capture Pro Server 2.0 Authentication Edition, Epson Document Capture (Mac only), Epson Scan 2
Compatible Operating Systems	Linux, Mac OS X 10.6.8 or later, Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP SP3, Windows Server 2003 SP2 or later, macOS 11 or later
Supported Humidity	Operation 15% - 80%, Storage 15% - 85%
Supported Temperature	Operation 5° C - 35° C, Storage -25° C - 60° C
What's in the box	Driver and Utilities (CD), External AC power adapter with power cord, Main unit, Quick Start Guide, USB cable
Options	Roller Assembly Kit
Country of Origin
Country Of Origin	Indonesia

Brochure

WorkForce DS-790WN

High-speed network scanner with stand-alone features for efficient digitalisation and distribution of documents in multi-user environments.

Easy-to-use, A4, high-speed, auto-duplex network scanner. Save files directly to a variety of destinations without the need to connect to a PC. System admins can take control of the device remotely and set up and authenticate user accounts using LDAP. The 10.9cm touchscreen allows control panel configuration for increased efficiency.

Legal Statement
Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Advanced authentication features

Set-up multiple user accounts locally or remotely (supports LDAP)

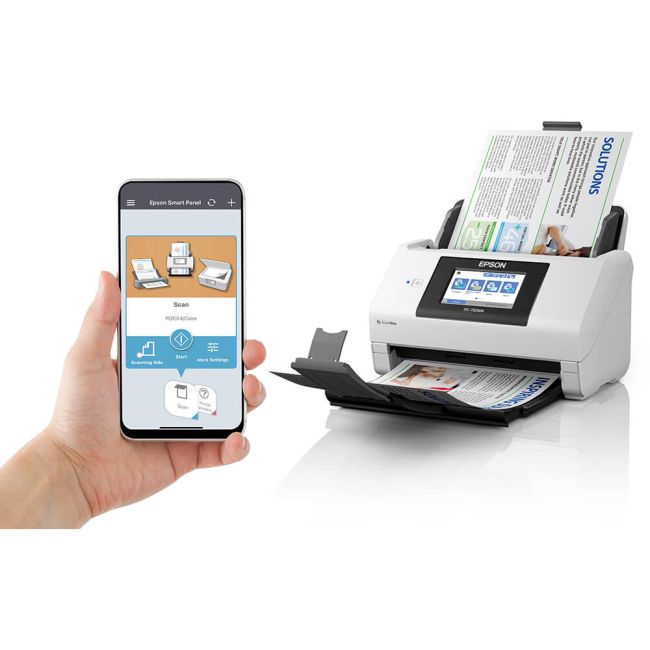

ScanWay standalone scanning

Scan directly to network, cloud, email, or USB stick - no PC required

Connectivity

USB 3.2, Wi-Fi, Wi-Fi Direct, Gigabit Ethernet

High speed

Scan both sides at once up to 45ppm / 90ipm with the 100-sheet ADF

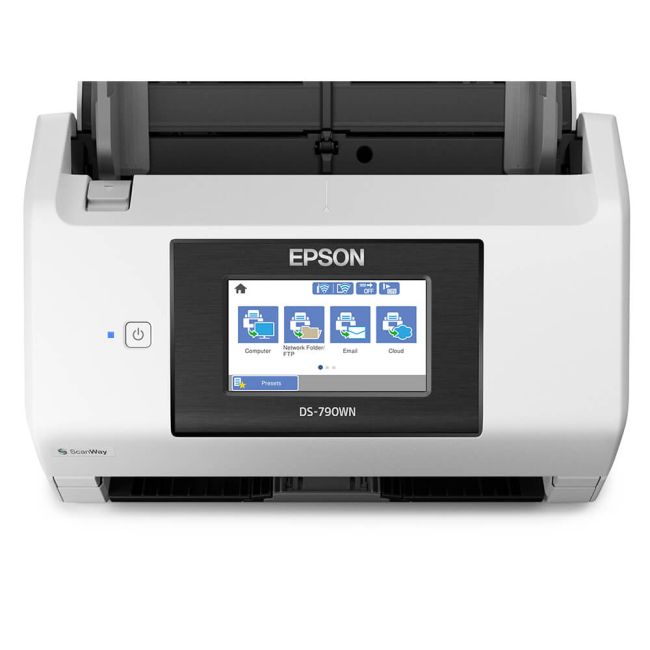

Large built-in display

10.9cm colour touchscreen with customisable presets and layout

slide 1 of 9, show larger image, workforce ds-790wn

slide 1 of 9, zoom in, workforce ds-790wn

slide 2 of 9, zoom in, workforce ds-790wn

slide 3 of 9, zoom in, workforce ds-790wn

slide 4 of 9, zoom in, workforce ds-790wn

slide 5 of 9, zoom in, workforce ds-790wn

slide 6 of 9, zoom in, workforce ds-790wn

Advanced authentication

Prevent unauthorised access to the scanner or use of unauthorised features with a range of authentication methods, including ID cards (card reader not included), login credentials or pin codes. For advanced security options make use of Epson's WebConfig and Document Capture Pro Server - Authentication Edition.

ScanWay - standalone scanning

Route scanned documents directly to the right destination using the 10.9cm colour touchscreen without the need to connect to a PC. Scan direct to network and cloud folders, email addresses, or USB memory stick.

Connectivity

The DS-790WN offers a variety of connectivity options, such as USB 3.2, Wi-Fi, Wi-Fi Direct and Gigabit ethernet. In addition, it supports multiple platforms, including Windows, Mac OS, iOS, Android, Chromebook and Citrix. Scan from a phone or tablet using the Epson Smart Panel app.

Reliability

With a 7000 pages-per-day duty cycle and inbuilt sensors for paper jams, double-feeding, and dirt-on-glass detection, all documents are kept safe and scanned to the highest quality.

Specifications

Technology
Scanner Type	Sheetfed Scanner
Optical Resolution	600 DPI x 600 DPI (Horizontal x Vertical)
ADF Minimum Document Size	50.8 mm x 50.8 mm (Horizontal x Vertical)
ADF Maximum Document Size	215.9 mm x 6,096 mm (Horizontal x Vertical)
Paper Formats	A4 (21.0x29.7 cm), A5 (14.8x21.0 cm), A6 (10.5x14.8 cm), A8, B5, B6, Letter, Legal, C6 (Envelope), DL (Envelope), Postcard, Business cards, Plastic cards, User defined, A3 with stitching function
Scanning color depth	Input: 30 Bits Color / 10 Bits Monochrome , Output: 24 Bits Color / 8 Bits Monochrome
Ultrasonic Sensor	Yes
Category	Network & Wifi, High Capacity, General Office
Scanner
Light Source	ReadyScan LED technology
Output Resolution	75, 100, 150, 200, 240, 300, 600 DPI
Panel	Type: Color, Touchscreen, Diagonal:10.9 cm
Scan speed
Scanning Speed	Monochrome:45 pages/min - Color:45 pages/min measured with Size: A4 , Resolution: 200 / 300 dpi, Monochrome:90 image/min - Color:90 image/min measured with Size: A4 , Resolution: 200 / 300 dpi
Paper / Media Handling
Paper Setting Capacity	100 Sheets
Paper weight	Auto loading: 27 - 413 g/m²
Automatic Document Feeder Type	Single pass dual scanning
Reliability Daily Duty Cycle	7,000 pages
Automatic Document Feed	Standard (built-in)
Duplex Scan	Yes
Scanning Features
Features	Standalone operation, Skip blank page, Automatic de-skew, Auto-rotation, Text enhancement, Barcode Recognition, Full Zonal OCR
Output formats	BMP, JPEG, TIFF, multi-TIFF, PDF, searchable PDF, secure PDF, PDF/A, PNG
Advanced document integration	Scan to Email, Scan to FTP, Scan to Microsoft SharePoint^®, Scan to Web folders, Scan to Network folders, Scan to USB
Scanning Volume	7,000 Pages per day
Connectivity
Interfaces	Wi-Fi Direct, USB host, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Wireless LAN b/g/g 25GHz, USB 3.2 Gen 1x1
General
Supply Voltage	AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions	296‎ x 212 x 217 mm (Width x Depth x Height)
Product weight	3.7 kg
Drivers	TWAIN, Epson Scan2 (TWAIN), SANE (Linux), WIA (Windows), ICA (Mac), ISIS (Windows)
Included Software	Document Capture Pro, Document Capture Pro Server 2.0, Document Capture Pro Server 2.0 Authentication Edition, Epson Document Capture (Mac only), Epson Scan 2
Compatible Operating Systems	Linux, Mac OS X 10.6.8 or later, Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP SP3, Windows Server 2003 SP2 or later, macOS 11 or later
Supported Humidity	Operation 15% - 80%, Storage 15% - 85%
Supported Temperature	Operation 5° C - 35° C, Storage -25° C - 60° C
What's in the box	Driver and Utilities (CD), External AC power adapter with power cord, Main unit, Quick Start Guide, USB cable
Options	Roller Assembly Kit
Country of Origin
Country Of Origin	Indonesia

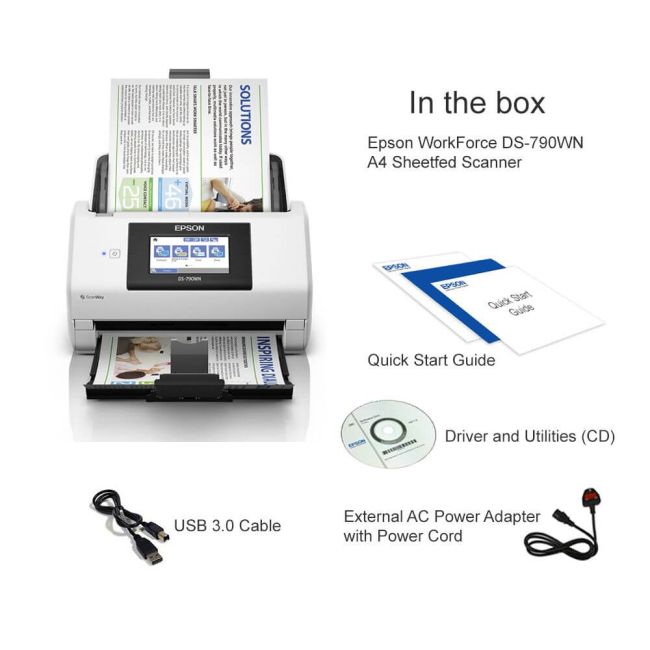

What's in the Box

Documents

What's in the box

Epson WorkForce DS-790WN
Driver and Utilities (CD)
External AC Power Adapter with Power Cord
Quick Start Guide
USB 3.0 Cable
