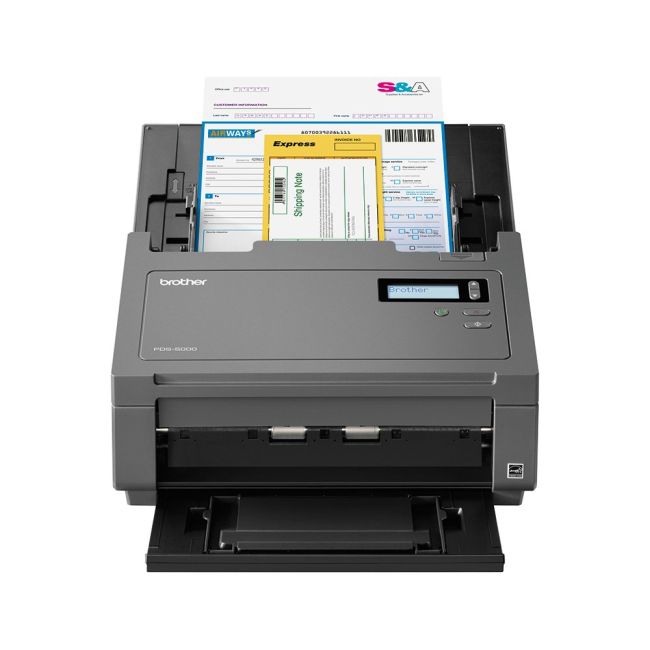

With reliable paper handling functions and a range of advanced image processing capabilities, the PDS5000 makes repetitive workflow processes quicker and more efficient.
Dimension: 316 W x 187 D x 183 H (mm) - Weight: 4.7 kg
1 Year Warranty
Manufacturer Description
At up to 120ipm (images per minute) 2-sided scanning and supported by a 100 sheet ADF (Automatic Document Feeder), the PDS-5000 is capable of handling high scan volumes for businesses digitally converting on a regular basis.
Expert paper handling with the Ultrasonic Multifeed Detection and Reverse Roller technology reduces the risk of damaged documents, offering outstanding reliability when batch scanning a variety of document types and weights. The PDS models can handle a range of media capacities up to embossed plastic card, addressing all user and departmental needs.
As well as paper handling upgrades, PDS-5000 has enhanced image processing. Advanced image processing features prepare and clean scanned documents, improving the quality of the scanned image for storing, editing and sharing. Business critical documents retain their original appearance, giving businesses a professional edge when printing or viewing scans with customers, or when storing for disaster recovery.
Auto-Deskew, Auto-Crop, Auto-Rotate
Align scanned images for a professional finish.
Blank Page Removal
Scanned blank pages can be automatically detected and removed, reducing file size and document preparation time.
Dynamic Threshold
When images and text are difficult to read due to colour density, the Dynamic Threshold tool lightens or darkens images as required; for sharp, clear and easy to read documents. The levels of light and dark tones can be adjusted as necessary to improve readability.Despeckle
When original documents have marks and ink blots, the intelligent image enhancement tool helps create a sharp and crisp image.
Background Processing
Smooth and remove unwanted colours, creases or shadows from the scan.
Edge Fill, Edge Clean Up
Removing unwanted edging produces clean page borders without scanning shadows.
Punch Hole Removal
Produce clean page borders by removing punch hole marks from the scanned image. Our intuitive fill function can also colour match the document background.
Colour Dropout
Remove red, green or blue singular or background colours for sharper, easy to read text and to prevent bleed through.
Auto Colour Detect
With Auto Colour Detect, the scanner eliminates the need to pre-sort batched documents or use separator sheets. Storage space is significantly lessened and the time needed to pre-sort documents is reduced.
Multi stream
Colour images can be saved into mono and greyscale versions, as well as colour, for multi copy use.
ISIS compatible.
Twain compatible.
Wireless compatible.
| General | |
|---|---|
| Usage type | Desktop |
| Display | Backlit LCD |
| RAM | 512 MB |
| Connectivity | |
| USB interface | SuperSpeed USB 3.0 |
| Dimensions & weights | |
| With carton |
437 W x 296 D x 320 H (mm) 7.2 kg |
| Without carton | 316 W x 187 D x 183 H (mm) |
| Weight | 4.7 kg |
| Energy Consumption | |
| Operating | 59 watts |
| Ready mode | 19 watts |
| Off | 0.3 watts |
| Sleep mode | 1.6 watts |
| Sound pressure | 55 dBA |
| Environment | |
| Operating humidity | 20% - 80% |
| Operating temperature | 5℃ - 35℃ |
| Environmental | |
| Energy Star environmental accreditation | Yes |
| In the box | |
| Others | PDS Machine, AC Adapter, Power supply cord, USB 3.0 cable, Software DVD, QSG, Warranty |
| Media specifications | |
| Types and weights | Plain Paper, Business Card, Plastic Card (embossed up to 1.25mm) |
| Sizes | 28 to 400 gsm (multiple sheets) |
| ADF media sizes | Paper (single sheet WxL): 51-218 x 54-5994mm, Paper (multiple sheets WxL): 51-218 x 54-356mm, Long Paper Scanning (single sheet WxL): 218 x 5994 mm, Plastic card (WxL): 51-55 x 70-95, Plastic card Thickness: 0.4-0.76mm |
| Operating systems & software | |
| Software supplied - Mac | DS Capture, NewSoft® Presto!®, PageManager 9® |
| Software supplied - Windows | Button Manager V2, Nuance® Omnipage 18SE, DS Capture |
| Scanning | |
| 2-Sided scan | Yes |
| ADF | 100 |
| Scan to | email, Image, OCR, File, FTP, Network, SharePoint, Application, Printer (software supplied) |
| Colour A4 scan speed | 60 ppm |
| Greyscale | 8 bit |
| ICA compatibility | Yes |
| Multi feed detection | Yes |
| Paper sensor | Yes |
| SANE compatibility | Yes |
| Scan resolution from ADF | 600 x 600 |
| TWAIN compatibility | Windows 7, Windows 8, Windows Vista, Windows XP |
| WIA compatibility | Yes |
| Warranty | |
| Warranty | 12 months |
.jpg)
Professional and reliable document scanning
With reliable paper handling functions and a range of advanced image processing capabilities, the PDS5000 makes repetitive workflow processes quicker and more efficient.
Ideal for batch scanning and archiving.
Key Features
At up to 120ipm (images per minute) 2-sided scanning and supported by a 100 sheet ADF (Automatic Document Feeder), the PDS-5000 is capable of handling high scan volumes for businesses digitally converting on a regular basis.
Expert paper handling with the Ultrasonic Multifeed Detection and Reverse Roller technology reduces the risk of damaged documents, offering outstanding reliability when batch scanning a variety of document types and weights. The PDS models can handle a range of media capacities up to embossed plastic card, addressing all user and departmental needs.
As well as paper handling upgrades, PDS-5000 has enhanced image processing. Advanced image processing features prepare and clean scanned documents, improving the quality of the scanned image for storing, editing and sharing. Business critical documents retain their original appearance, giving businesses a professional edge when printing or viewing scans with customers, or when storing for disaster recovery.
Auto-Deskew, Auto-Crop, Auto-Rotate
Align scanned images for a professional finish.
Blank Page Removal
Scanned blank pages can be automatically detected and removed, reducing file size and document preparation time.
Dynamic Threshold
When images and text are difficult to read due to colour density, the Dynamic Threshold tool lightens or darkens images as required; for sharp, clear and easy to read documents. The levels of light and dark tones can be adjusted as necessary to improve readability.Despeckle
When original documents have marks and ink blots, the intelligent image enhancement tool helps create a sharp and crisp image.
Background Processing
Smooth and remove unwanted colours, creases or shadows from the scan.
Edge Fill, Edge Clean Up
Removing unwanted edging produces clean page borders without scanning shadows.
Punch Hole Removal
Produce clean page borders by removing punch hole marks from the scanned image. Our intuitive fill function can also colour match the document background.
Colour Dropout
Remove red, green or blue singular or background colours for sharper, easy to read text and to prevent bleed through.
Auto Colour Detect
With Auto Colour Detect, the scanner eliminates the need to pre-sort batched documents or use separator sheets. Storage space is significantly lessened and the time needed to pre-sort documents is reduced.
Multi stream
Colour images can be saved into mono and greyscale versions, as well as colour, for multi copy use.
ISIS compatible.
Twain compatible.
Wireless compatible.
