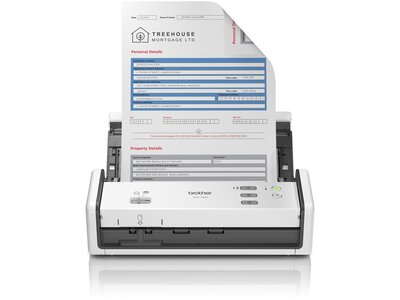

Brother ADS-1300 Compact Portable Document Scanner

Manufacturer's Description

Manufacturer Description

Scanning on the move

Designed with flexibility in mind, easily scan and save your paper documents whilst you are out of the office. Once plugged into your laptop, you can use the ADS-1300 to scan documents when it is most convenient for you.

High performance every time

No matter where you scan from, you will get the same high performance, every time. With scan speeds of up to 60 sides per minute (2-sided), documents are saved quickly and effortlessly to PDF, File, Email and USB Host.

Versatile media handling

The time-saving 20 sheet Automatic Document Feeder (ADF) manages various sizes and thicknesses of paper (up to 128gsm) with ease. Whilst the dedicated card slot comfortably handles plastic ID cards up to 1.02mm.

Industry-leading software

Available as standard, Power PDF provides you with the flexibility to easily convert,edit and share documents in seconds.

Together with Kofax PaperPort, a document management solution, workflows can be created so that you can share, search and organise documents with ease and accuracy.

Accessories

OT1001C - Designed for use with the ADS-1800W and ADS-1300 compact, portable scanners
CSA3301 - Carrier Sheet (Pack of 2)
SP2001C - Brother SP-2001C scanner separation pad for compact document scanner.

Caveats
*	*Requires USB Type-C connection with 15W power source (not included)
General
Usage type	Desktop, Portable
Backup clock	Yes
Control panel	LED, Keys
Connectivity
USB interface	USB Type-C*, USB 2.0 Host (Rear, up to 128GB)
Dimensions & weights
With carton	W 369 ｘ D 158 ｘ H 200 mm 1.70 kg
Without carton	W 288 X D 101 X H 85 mm input tray closed
Weight	1.37 kg
Energy Consumption
Operating	Up to 11 watts
Ready mode	5 watts
Sleep mode	Up to 1.3 watts
Off	0.1 watts
Environment
Operating humidity	20 to 80%
Operating temperature	5 to 35 degrees celsius
Sound power	62dB
In the box
Device	Yes
Product safety guide	Yes
USB cable	Yes
Warranty card	Yes
Quick setup guide	Yes
Media specifications
Types and sizes	Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Non carbon paper, Receipt, Business Card, Plastic Card
Weights	51.8 - 128 gsm, Paper 0.08 ~ 0.14mm, Plastic card thickness embossed up to 1.24mm or without emboss 0.75-1.02mm
ADF media sizes	Paper : width 51 - 215.9mm, height 70 - 355.6mm, Plastic card: width min/max 51-55mm, length min/max 80-90mm, Long Paper 5000mm (300dpi 1-sided single paper)
Operating systems & software
Supported OS	For full list of compatible operating systems visit support.brother.com
Software supplied - Mac	Brother iPrint&Scan for Desktop, Kofax Power PDF Standard v3, Remote Setup
Software supplied - Windows	Brother iPrint&Scan for Desktop, Kofax PaperPort 14SE with OCR, Kofax Power PDF Standard v5, Remote Setup, Easy Setup
Scanning
2-Sided scan	Yes
A4 Scan Speed	30
ADF	20
Scan to	Scan to PC (Image), Workflow, SharePoint(On Premise), Cloud
Drivers	TWAIN, WIA, ICA, SANE
Greyscale	256 levels
Interpolated scan resolution	1200 x 1200
Scan resolution from ADF	600 x 600
Supplies and accessories
Optional accessories	Carrier Sheet CS-A3301, Pick-up Roller PUR-2001C, Separation Pad SP-2001C, Output Tray OT-1001C, Legacy Kit (LK-1001CEU, LK-1001CUK), USB Power Adapter (PA-AD-004EU, PA-AD-004UK)
Warranty
Warranty	12 months

ADS1300

Power directly from your laptop using USB Type-C, so you can scan, save and share where it's most convenient to you.

Make everyday document scanning simple with the ADS-1300 compact, portable document scanner. Scan and save your paper documents wherever you are working. Whether its utility bill, business documents or medical forms, once plugged into your laptop, you can scan and securely store data digitally and have instant access whenever you need it. Scan to PC, Cloud, USB Host PDF editing software included Optional paper output tray available*See datasheet for detailed technical information

Scan up to 30ppm
60ipm, 2-sided colour scan
20 Sheet Automatic Document Feeder (ADF)
Power directly via USB Type-C
Control up to 3 scan activity shortcuts direct from the device
Dedicated plastic ID card slot

slide 1 of 7, show larger image, ads1300

Scanning on the move

High performance every time

Versatile media handling

Industry-leading software

Available as standard, Power PDF provides you with the flexibility to easily convert,edit and share documents in seconds.

Together with Kofax PaperPort, a document management solution, workflows can be created so that you can share, search and organise documents with ease and accuracy.

Accessories

OT1001C - Designed for use with the ADS-1800W and ADS-1300 compact, portable scanners
CSA3301 - Carrier Sheet (Pack of 2)
SP2001C - Brother SP-2001C scanner separation pad for compact document scanner.

Specifications

Caveats
*	*Requires USB Type-C connection with 15W power source (not included)
General
Usage type	Desktop, Portable
Backup clock	Yes
Control panel	LED, Keys
Connectivity
USB interface	USB Type-C*, USB 2.0 Host (Rear, up to 128GB)
Dimensions & weights
With carton	W 369 ｘ D 158 ｘ H 200 mm 1.70 kg
Without carton	W 288 X D 101 X H 85 mm input tray closed
Weight	1.37 kg
Energy Consumption
Operating	Up to 11 watts
Ready mode	5 watts
Sleep mode	Up to 1.3 watts
Off	0.1 watts
Environment
Operating humidity	20 to 80%
Operating temperature	5 to 35 degrees celsius
Sound power	62dB
In the box
Device	Yes
Product safety guide	Yes
USB cable	Yes
Warranty card	Yes
Quick setup guide	Yes
Media specifications
Types and sizes	Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Non carbon paper, Receipt, Business Card, Plastic Card
Weights	51.8 - 128 gsm, Paper 0.08 ~ 0.14mm, Plastic card thickness embossed up to 1.24mm or without emboss 0.75-1.02mm
ADF media sizes	Paper : width 51 - 215.9mm, height 70 - 355.6mm, Plastic card: width min/max 51-55mm, length min/max 80-90mm, Long Paper 5000mm (300dpi 1-sided single paper)
Operating systems & software
Supported OS	For full list of compatible operating systems visit support.brother.com
Software supplied - Mac	Brother iPrint&Scan for Desktop, Kofax Power PDF Standard v3, Remote Setup
Software supplied - Windows	Brother iPrint&Scan for Desktop, Kofax PaperPort 14SE with OCR, Kofax Power PDF Standard v5, Remote Setup, Easy Setup
Scanning
2-Sided scan	Yes
A4 Scan Speed	30
ADF	20
Scan to	Scan to PC (Image), Workflow, SharePoint(On Premise), Cloud
Drivers	TWAIN, WIA, ICA, SANE
Greyscale	256 levels
Interpolated scan resolution	1200 x 1200
Scan resolution from ADF	600 x 600
Supplies and accessories
Optional accessories	Carrier Sheet CS-A3301, Pick-up Roller PUR-2001C, Separation Pad SP-2001C, Output Tray OT-1001C, Legacy Kit (LK-1001CEU, LK-1001CUK), USB Power Adapter (PA-AD-004EU, PA-AD-004UK)
Warranty
Warranty	12 months
