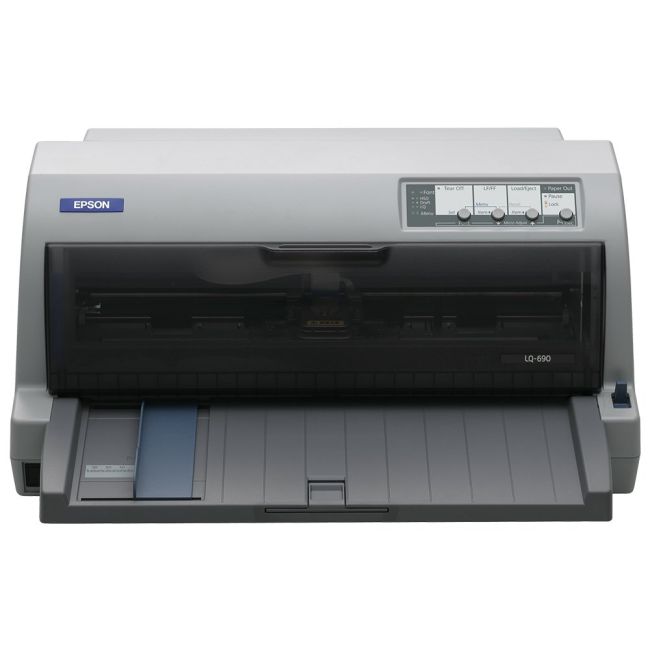

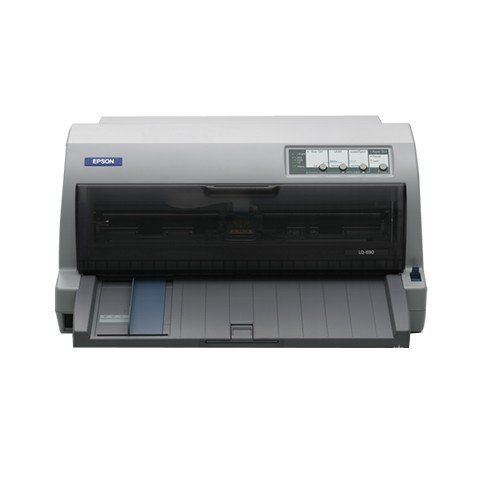

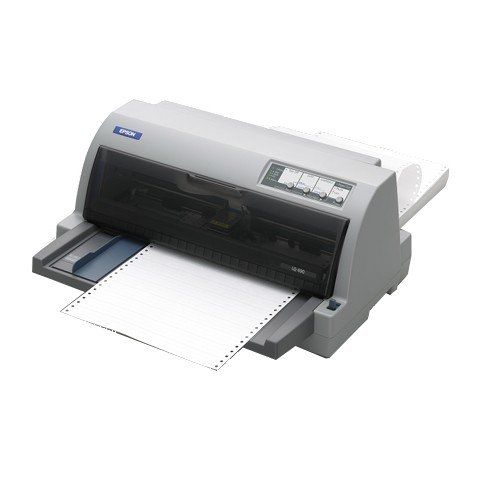

Epson LQ-690 24-pin Wide Dot Matrix Printer

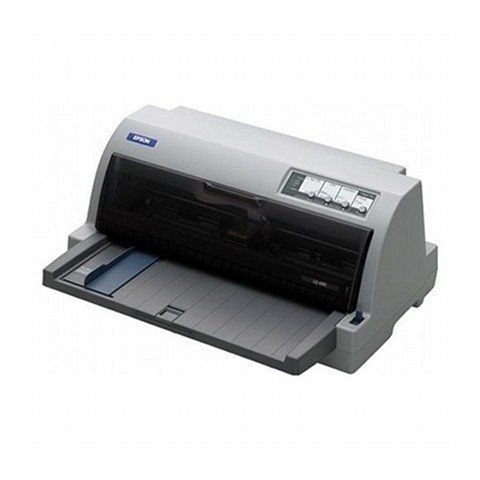

Epson LQ-690 24-pin Wide Dot Matrix Printer left view

Epson LQ-690 24-pin Wide Dot Matrix Printer

Part No: C11CA13051

106 Column
Parallel & USB Connection
529 CPS Print Speed
1+6 Copies
Epson & IBM Emulations
128KB Buffer Memory

Click Here to view our range of Listing Paper

Order now for delivery on Wednesday

Epson LQ-690 24-pin Wide Dot Matrix Printer

£456.93ex VAT£548.32inc VAT

Qty:

out of stock

Product Spec

Memory:: 128Kb
Disc Printing:: No
Dimensions W x D x H:: 480 x 370 x 210mm
Weight (Kg):: 6.8
Borderless Printing:: No
Duplex Scan:: No
Barcode Printing:: No
Functions:: Print Only
GTIN:: 08715946429946
BarCode:: 8715946429946
Mono or Colour:: Mono
Compatibility:: Windows
Connectivity:: Parallel, USB
Printer Type:: Dot Matrix
Print DPI:: 360 x 360
Manufacturer:: Epson

Product Description

Reliable and fast flatbed printer with an extremely high ribbon yield.

The Epson LQ-690 offers the best in dot matrix performance where it matters most: speed, reliability, ribbon yield and user-friendliness. The LQ-690 is also versatile, handling cut sheets, continuous paper, labels, envelopes and cards. Its compact and user friendly design makes it flexible enough to meet demanding space and application requirements.

Manufacturer's Description

Manufacturer Description

Technology
Printing Method	Impact dot matrix
Number of Pins	24 pins
Number of columns	106 columns
Pins	24 Needles
Print
Printing Speed	HighSpeed-Draft: 10 cpi: 440 chars/s, 12 cpi: 529 chars/s, Draft: 10 cpi: 330 chars/s, 12 cpi: 396 chars/s, LQ: 10 cpi: 110 chars/s, 12 cpi: 132 chars/s
Barcodes	Coda bar (NW-7), Code 128, Code 39, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, POSTNET, UPC-A, UPC-E
Carbon Copies	6 plus one original
Character Tables	PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, ISO-8859-15, Roman 8, Italic
Printing Resolution	360 x 180 DPI
Connectivity
Interfaces	USB 2.0, Bidirectional parallel
Paper / Media Handling
Document Feed	Single sheet front, Continuous media rear, Paper output front
Paper Formats	Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Labels (single- and multi-layer), Roll Paper, Envelopes, Cardboard
Paper Thickness Continuous Paper	0.065 mm - 0.49 mm
Paper Thickness Label Base Sheet	0.16 mm - 0.19 mm
Paper Thickness Label Total Sheet	0.16 mm - 0.19 mm
Paper Thickness Multi Part	0.12 mm - 0.49 mm
Paper Thickness Single Sheet	0.065 mm - 0.19 mm
General
Power consumption	38 Watt, 3 Watt (standby)
Product dimensions	480‎ x 370 x 210 mm (Width x Depth x Height)
Product weight	6.8 kg
Supported Temperature	Operation 5° C - 35° C
Supported Humidity	Operation 10% - 80%
Compatible Operating Systems	Windows 2000, Windows 7, Windows 8, Windows 98, Windows XP
Included Software	Epson Status Monitor
Mean Time Between Failures	20,000 hours
Print Head Life	400 Million Strokes/Wire
Noise	Operation:57 dB (A)- Standby:54 dB (A)
Fonts	Bitmap font EPSON Courier (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON Draft (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON OCR-B (10 CPI), Bitmap font EPSON Orator (10 CPI), Bitmap font EPSON Orator-S (10 CPI), Bitmap font EPSON Prestige (10 CPI, 12 CPI), Bitmap font EPSON Roman (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Sans Serif (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Script (10 CPI), Bitmap font EPSON Script C (Proportional), Scalable font EPSON Roman, Scalable font EPSON Roman T, Scalable font EPSON Sans Serif, Scalable font EPSON Sans Serif H
Memory	128 kB Included
Ribbon Yield	10000000 characters Black Draft
What's in the box	Driver and utilities, Main unit, Power cable, Ribbon, Setup guide, Software (CD), User manual (CD), Warranty document
Other Features
Emulations	ESC/P2, IBM PPDS
Other
Warranty	12 months Carry in
Country of Origin
Country Of Origin	Indonesia

Brochure

LQ-690

For the very best in dot matrix performance, look no further than the versatile and user-friendly Epson LQ-690, offering a winning combination of speed, reliability and ribbon yield.

Designed with the dot matrix user in mind, our latest model has an impressive print speed of up to 529 cps. This flexible and compact printer can easily handle cut sheets, continuous paper, labels, envelopes and cards. It has a built-in Print Speed Enhancer to increase the speed of bit image printing, making it an ideal printer for those in the most demanding of work environments.

Quality

The 106 column capacity with 24 pins means greater quality

Speedy

Impressive print speed of 529 cps

Productive

Big memory buffer of 128 KB and built-in Print Speed Enhancer

Reliable

Combined power of print head life and MTBF of 20,000 hours

Energy efficient

Low power consumption so better for environment

Very fast:

Print faster and more productively, thanks to the Print Speed Enhancer - a unique feature in the Epson driver. Perfect for those printing directly from any Windows^® applications. – Also, LQ-690 is capable of printing an impressive 529 cps (12 cpi) when using printer resident fonts.

High ribbon yield:

In a demanding and fast-moving work environment, a high ribbon yield is essential, and with 10 million characters per ribbon, this marks out the LQ-690 as a leading force in the flatbed market. It is also cost-effective with long ribbon replacement cycles, low running costs and total cost of ownership.

Dependable:

Durable and built to last, users will be assured by the MTBF (mean time between failures) of 20,000 power on hours, plus a print head life of 400 million strokes/wire. This results in greater productivity and less maintenance - essential when producing large amounts of documents and data.

Smart design:

This compact hard-working printer is designed to fit on your desk. The platen gap adjustment lever is thoughtfully hidden under the front cover, to avoid accidental setting changes and paper setting is made easy thanks to the ruler in the front paper guide.

Specifications

Technology
Printing Method	Impact dot matrix
Number of Pins	24 pins
Number of columns	106 columns
Pins	24 Needles
Print
Printing Speed	HighSpeed-Draft: 10 cpi: 440 chars/s, 12 cpi: 529 chars/s, Draft: 10 cpi: 330 chars/s, 12 cpi: 396 chars/s, LQ: 10 cpi: 110 chars/s, 12 cpi: 132 chars/s
Barcodes	Coda bar (NW-7), Code 128, Code 39, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, POSTNET, UPC-A, UPC-E
Carbon Copies	6 plus one original
Character Tables	PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, ISO-8859-15, Roman 8, Italic
Printing Resolution	360 x 180 DPI
Connectivity
Interfaces	USB 2.0, Bidirectional parallel
Paper / Media Handling
Document Feed	Single sheet front, Continuous media rear, Paper output front
Paper Formats	Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Labels (single- and multi-layer), Roll Paper, Envelopes, Cardboard
Paper Thickness Continuous Paper	0.065 mm - 0.49 mm
Paper Thickness Label Base Sheet	0.16 mm - 0.19 mm
Paper Thickness Label Total Sheet	0.16 mm - 0.19 mm
Paper Thickness Multi Part	0.12 mm - 0.49 mm
Paper Thickness Single Sheet	0.065 mm - 0.19 mm
General
Power consumption	38 Watt, 3 Watt (standby)
Product dimensions	480‎ x 370 x 210 mm (Width x Depth x Height)
Product weight	6.8 kg
Supported Temperature	Operation 5° C - 35° C
Supported Humidity	Operation 10% - 80%
Compatible Operating Systems	Windows 2000, Windows 7, Windows 8, Windows 98, Windows XP
Included Software	Epson Status Monitor
Mean Time Between Failures	20,000 hours
Print Head Life	400 Million Strokes/Wire
Noise	Operation:57 dB (A)- Standby:54 dB (A)
Fonts	Bitmap font EPSON Courier (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON Draft (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON OCR-B (10 CPI), Bitmap font EPSON Orator (10 CPI), Bitmap font EPSON Orator-S (10 CPI), Bitmap font EPSON Prestige (10 CPI, 12 CPI), Bitmap font EPSON Roman (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Sans Serif (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Script (10 CPI), Bitmap font EPSON Script C (Proportional), Scalable font EPSON Roman, Scalable font EPSON Roman T, Scalable font EPSON Sans Serif, Scalable font EPSON Sans Serif H
Memory	128 kB Included
Ribbon Yield	10000000 characters Black Draft
What's in the box	Driver and utilities, Main unit, Power cable, Ribbon, Setup guide, Software (CD), User manual (CD), Warranty document
Other Features
Emulations	ESC/P2, IBM PPDS
Other
Warranty	12 months Carry in
Country of Origin
Country Of Origin	Indonesia

What's in the Box

Documents

What's in the box

Black Ribbon
Setup Guide
Software & Documentation CD
Power Cable
