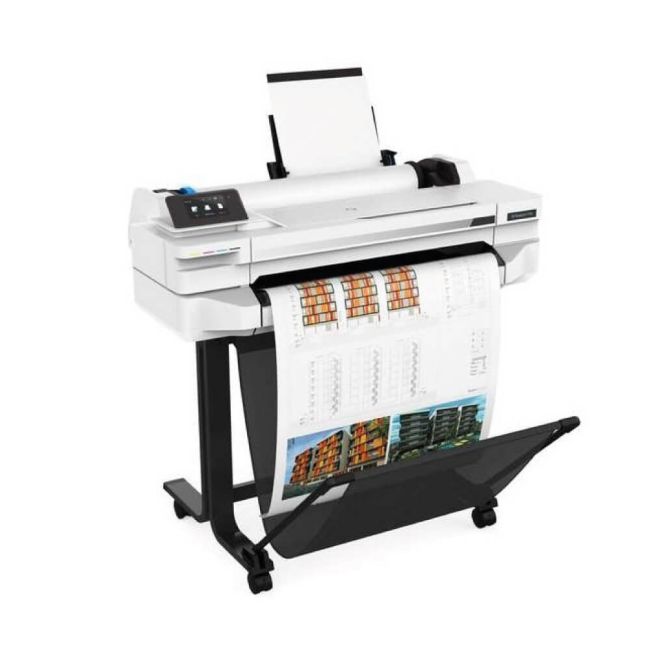

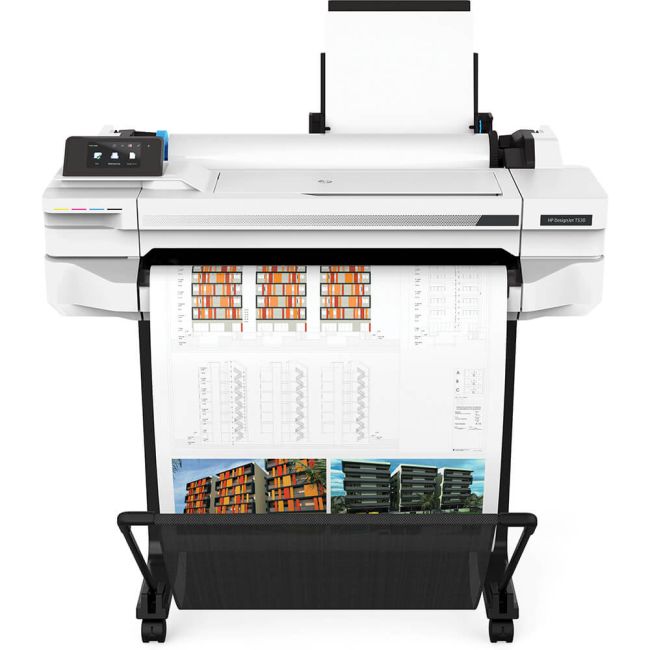

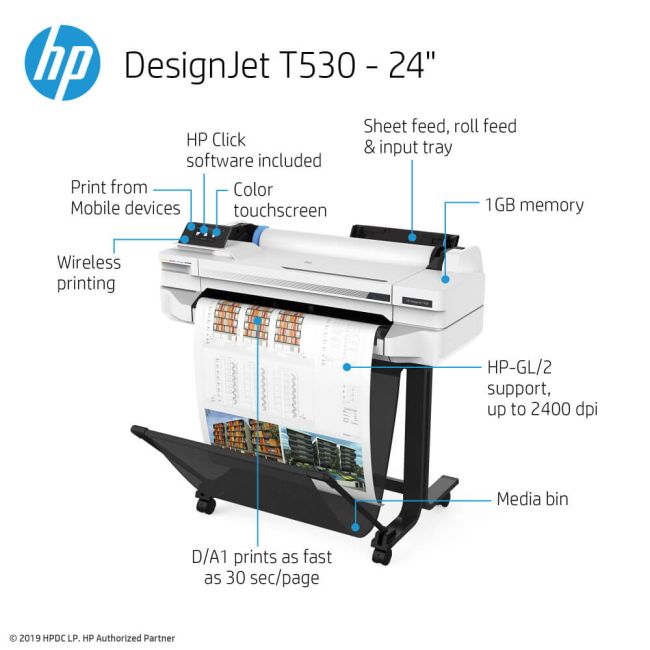

HP Designjet T530 24" / A1 Large Format Printer - DISCONTINUED
Part No: 5ZY60A
Key Specifications
Model size
610 mm (24 in)Memory
1 GBHard Drive
NonePrint speed maximum
30 sec/page on A1; 76 A1 prints per hour1Resolution
Up to 2400 x 1200 optimised dpiProduct overview
Save space, time, and money with a compact Wi-Fi plotter and stand that let you print in-house, right away. Speed up the PDF printing process. Print from your smartphone with the HP Smart app.2 Get high quality and high speed.
The perfect fit – for your office and budget
Discover savings, from your office space to your budget, with the world's smallest plotters and built-in stands.3 With built-in Wi-Fi, you can also save time by connecting and printing right away. Save money with HP’s most affordable plotters.2Radically simple – from setup to printout
This printer is all about simplicity. Speed up your PDF printing process with free HP Click software. Access files from cloud folders and print them using your smartphone and the HP Smart app. Design beautiful posters with the HP Poster Web app.DesignJet quality – from the most trusted brand4
HP DesignJet printing delivers the high-quality, high-speed results your clients expect. Get perfectly matched colour on both small- and large-format prints. Achieve precise details, and see great results on plain paper with HP Bright Office Inks.In the box
- HP DesignJet T530 24-in Printer
- Printer stand
- Printhead
- Introductory ink cartridges
- Spindle
- Quick reference guide
- Setup poster
- Power cord
| Model size | 610 mm (24 in) |
|---|---|
| Print speed |
30 sec/page on A1 76 A1 prints per hour1 |
| Memory | 1 GB |
| Internal Storage | None |
| Print quality color (best) | Up to 2400 x 1200 optimised dpi |
| Print technology | HP Thermal Inkjet |
| Number of print cartridges | 4 (C, M, Y, K) |
| Ink types |
Dye-based (C, M, Y) pigment-based (K) |
| Non-printable area (cut-sheet) | 5 x 5 x 5 x 5 mm |
| Line accuracy | ±0.1%5 |
| Maximum optical density (black) | 8 L* min/2.10 D6 |
| Finished output handling | Sheet feed, roll feed, input tray, automatic horizontal cutter |
| Media types | Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene) |
| Media weight, recommended |
60 to 280 g/m² (roll/manual feed) 60 to 220 g/m² (input tray) |
| Media sizes standard (metric rolls) | 279 to 610-mm rolls (11 to 36 in) |
| Roll external diameter | 100 mm |
| Media thickness | Up to 11.8 mil |
| HP ePrint capability | No |
| Connectivity, standard | Fast Ethernet (100Base-T), Hi-Speed USB 2.0, Wi-Fi |
| Print languages | HP-GL/2, HP-RTL, JPEG, CALS G4 |
| Power consumption | < 35 W (printing), < 6 W (ready), < 4.5 W (sleep), < 0.3 W (standby) |
| Operating temperature range | 5 to 40ºC (41 to 104ºF) |
| Minimum dimensions (W x D x H) | 987 x 530 x 932 mm (38.9 x 20.9 x 36.7 in) |
| Weight | 34 kg (75 lb) |
| Manufacturer Warranty |
T525: One-year limited hardware warranty T530: Two-year limited hardware warranty |
| Software included | HP Click, HP DesignJet Utility for Windows, HP Smart app, HP Poster Web app |
- 24" / A1 Large Format Printer
- Up to 2400 x 1200 DPI Print Resolution
- USB, Network & Wireless
- Max paper wright 280gsm
- HP-GL/2, HP-RTL, JPEG, CALS G4
The HP Designjet T530 is now discontinued and has been replaced by the HP DesignJet T630 - 2025 Version.
VIEW REPLACEMENT
