HP DesignJet T230 (2025 Version) A1 / 24" Colour Large Format Inkjet Printer

HP DesignJet T230 (2025 Version) A1 / 24" Colour Large Format Inkjet Printer

Part No: 5HB07D

Promotions

£50 Cashback

2400 x 1200 DPI Print Resolution
USB, Network & Wireless Connection
Up to 35 Seconds For An A1 Colour Print
512MB Memory
Print Up To 280gsm
Windows & Mac Compatible

Order in the next 9 hours 41 minutes for Tuesday delivery

HP DesignJet T230 (2025 Version) A1 / 24" Colour Large Format Inkjet Printer

£699.06ex VAT£838.87inc VAT

Qty:

99+ in stock

Product Spec

Memory:: 512 MB
Disc Printing:: No
Dimensions W x D x H:: 1013 x 440 x 285mm
Weight (Kg):: 21.5
Max Paper Weight:: 280gsm
Borderless Printing:: No
Duplex Scan:: No
Barcode Printing:: No
Functions:: Print Only
GTIN:: 00198701026570
BarCode:: 00198701026570
Mono or Colour:: Colour
Compatibility:: Mac, Windows
Connectivity:: Network, USB, Wireless
Printer Type:: Inkjet
Max Paper Size:: A1
Print DPI:: 2400 x 1200
Manufacturer:: HP

Product Description

Focus on the project, not your plotter. This printer delivers incredible ease of use with HP Click Print solutions. It's responsibly designed to help you save energy and reduce plastics use. Plus, it's compact and adaptable — to fit the way you work.

Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.

Manufacturer's Description

Manufacturer Description

Functions	Print
Print quality color (best)	Up to 2400 x 1200 optimised dpi
Print languages	JPEG, URF
Print technology	HP Thermal Inkjet
Connectivity, standard	Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
Memory	512 MB
Internal Storage	None
Finished output handling	Sheet feed, roll feed automatic horizontal cutter
Media types	Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
Media sizes supported	A4, A3, A2, A1
Media sizes, custom	210 x 279 to 610 x 1897 mm
Media weight, recommended	60 to 280 g/m²
Power consumption	<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off)
Power	Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Operating humidity range	20 to 80% RH
Non-Operating Humidity Range	0 to 95% RH
Operating temperature range	5 to 40ºC
Energy star certified	Yes
Product logos	AirPrint ENERGY STAR EPEAT Climate+ Gold Carbon Neutral Gold IPv6 Ready Hi-Speed USB UL Validated Wi-Fi CERTIFIED Windows 11 Compatible
Safety	USA and Canada (CSA certified) EU (LVD, EN 60950-1 and EN 62368-1 compliant) Russia, Belarus, Khazakstan (EAC) Ukraine (UA) Singapore (PSB) China (CCC) Argentina (IRAM) India (BIS) Mexico (NYCE)
Dimensions (W x D x H)	1013 x 440 x 285 mm
Weight	21.5 kg
What's in the box	HP DesignJet T230 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
Print Cartridges/Bottle, Number	4 (C, M, Y, K) cartridges
Manufacturer Warranty	One-year limited hardware warranty
Acoustic power emissions (active, printing)	5.8 B(A) (operating), <3.4 B(A) (idle)
Acoustic pressure emissions	42 dB(A) (operating), <16 dB(A) (idle)
Operating altitude	Up to 3000 m
Package dimensions (W x D x H)	1155 x 575 x 405 mm
Media sizes standard (metric rolls)	279 to 610 mm
Electromagnetic compatibility	Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI) Certified as Class B product: Korea (KCC)
Environmental certification	ENERGY STAR WEEE EU RoHS EAEU RoHS REACH ErP EPEAT Climate+ Gold UL Ecologo
Ink drop	5.5 pl (C, M, Y) 12 pl (K)
Ink types	Dye-based (C, M, Y) pigment-based (K)
Line accuracy	±0.1%⁵
Theoretical minimum line width	0.02 mm
Roll external diameter	100 mm
Roll maximum input	1
Roll maximum weight	4.1 kg
Media thickness maximum (metric)	Up to 0.3 mm
Print multi-size files in one click	Yes
Maximum optical density (black)	8 L* min/2.10 D⁶
High capacity of page yield (colour)	20 ml of ink yields 101 A1 pages, taking into account maintenance routines⁷
Supported Primary Applications	Line drawings Presentations Renderings
Print cartridge/bottle volume	80 ml (K) 38 ml (K) 29 ml (C, M, Y) per cartridge
Printer drivers included	Raster driver for macOS and Windows, HP Click Driver for Windows 11
Print head nozzles	1376
Print heads	1 (cyan, magenta, yellow, black)
Non-printable area (cut-sheet)	5 x 5 x 5 x 17 mm (manual feed) 5 x 5 x 5 x 5 mm (input tray)
Non-printable area (roll media)	5 x 5 x 5 x 5 mm
Printing path	HP Click App, HP Click Driver, HP app, Windows and MacOS printer drivers, Apple AirPrint, Android Default Print Service, Printing support for ChromeOS, Email printing
Print speed	35 sec/page on A1, 68 A1 prints per hour⁸
Remote print enabled	Yes
Security features	HP Wolf Essential Security: Secure boot with HW root of trust Firmware Code Signature Validation Automatic FW Updates HTTPS Redirect enabled by default SNMPv1/2 read-only by default SNMPv3 disabled by default Write-protected memory HP Cartridge Security Unique password Disable USB ports TLS 1.2 802.1x IPv4 & IPv6 Compatibility CA/JD Compatibility
Software included	HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS
Storage temperature range	-25 to 55ºC
Package weight	27 kg
Documents	HP DesignJet T230 24-in Printer

HP DesignJet T230 24-in Printer 2025 edition

Dynamic security enabled printer

Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.

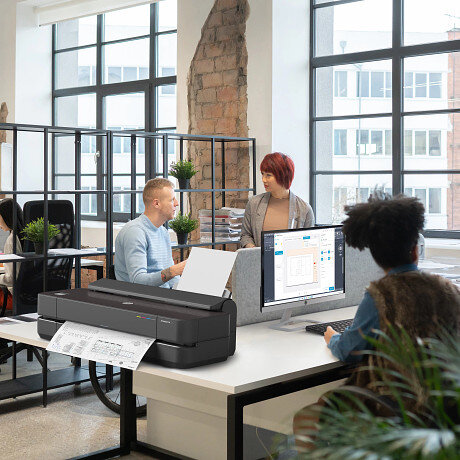

INTUITIVE—Easy, effortless printing

Simplify printing with the new HP Click Print solutions—save time with real-print preview.¹

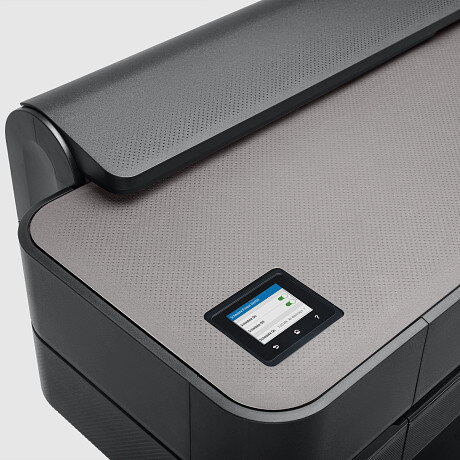

RESPONSIBLY DESIGNED—Reduce energy and plastic use

Save 65% energy² with the printer on/off auto scheduler and enjoy efficient ink maintenance routines³.

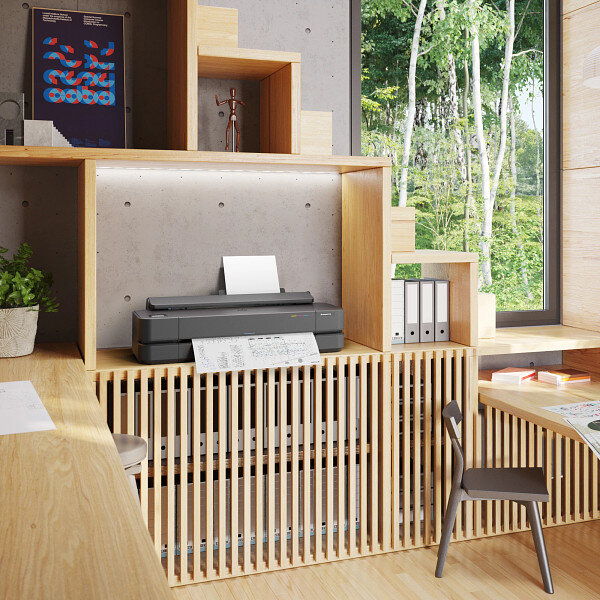

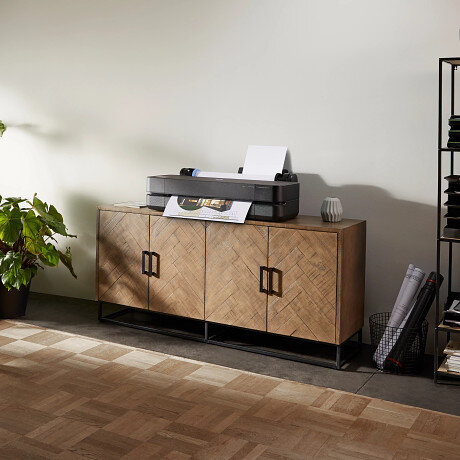

OPTIMIZED—Fits the way you work

Save space with the world's smallest plotters⁴ designed to fit your office.

HP DesignJet T230 24-in Printer 2025 edition

Seamless A1/A3 printing experience

Print A3/B and A1/D automatically without switching the media source with an accessory

Print from anywhere

Quickly access and print documents from your smart phone with the HP app

Outstanding line quality

Get high-quality results—HP Bright Office Inks plot up to 31% more line accuracy and up to 65% more gamut.

610 mm

Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

Functions	Print
Print quality color (best)	Up to 2400 x 1200 optimised dpi
Print languages	JPEG, URF
Print technology	HP Thermal Inkjet
Connectivity, standard	Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
Memory	512 MB
Internal Storage	None
Finished output handling	Sheet feed, roll feed automatic horizontal cutter
Media types	Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
Media sizes supported	A4, A3, A2, A1
Media sizes, custom	210 x 279 to 610 x 1897 mm
Media weight, recommended	60 to 280 g/m²
Power consumption	<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off)
Power	Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Operating humidity range	20 to 80% RH
Non-Operating Humidity Range	0 to 95% RH
Operating temperature range	5 to 40ºC
Energy star certified	Yes
Product logos	AirPrint ENERGY STAR EPEAT Climate+ Gold Carbon Neutral Gold IPv6 Ready Hi-Speed USB UL Validated Wi-Fi CERTIFIED Windows 11 Compatible
Safety	USA and Canada (CSA certified) EU (LVD, EN 60950-1 and EN 62368-1 compliant) Russia, Belarus, Khazakstan (EAC) Ukraine (UA) Singapore (PSB) China (CCC) Argentina (IRAM) India (BIS) Mexico (NYCE)
Dimensions (W x D x H)	1013 x 440 x 285 mm
Weight	21.5 kg
What's in the box	HP DesignJet T230 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
Print Cartridges/Bottle, Number	4 (C, M, Y, K) cartridges
Manufacturer Warranty	One-year limited hardware warranty
Acoustic power emissions (active, printing)	5.8 B(A) (operating), <3.4 B(A) (idle)
Acoustic pressure emissions	42 dB(A) (operating), <16 dB(A) (idle)
Operating altitude	Up to 3000 m
Package dimensions (W x D x H)	1155 x 575 x 405 mm
Media sizes standard (metric rolls)	279 to 610 mm
Electromagnetic compatibility	Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI) Certified as Class B product: Korea (KCC)
Environmental certification	ENERGY STAR WEEE EU RoHS EAEU RoHS REACH ErP EPEAT Climate+ Gold UL Ecologo
Ink drop	5.5 pl (C, M, Y) 12 pl (K)
Ink types	Dye-based (C, M, Y) pigment-based (K)
Line accuracy	±0.1%⁵
Theoretical minimum line width	0.02 mm
Roll external diameter	100 mm
Roll maximum input	1
Roll maximum weight	4.1 kg
Media thickness maximum (metric)	Up to 0.3 mm
Print multi-size files in one click	Yes
Maximum optical density (black)	8 L* min/2.10 D⁶
High capacity of page yield (colour)	20 ml of ink yields 101 A1 pages, taking into account maintenance routines⁷
Supported Primary Applications	Line drawings Presentations Renderings
Print cartridge/bottle volume	80 ml (K) 38 ml (K) 29 ml (C, M, Y) per cartridge
Printer drivers included	Raster driver for macOS and Windows, HP Click Driver for Windows 11
Print head nozzles	1376
Print heads	1 (cyan, magenta, yellow, black)
Non-printable area (cut-sheet)	5 x 5 x 5 x 17 mm (manual feed) 5 x 5 x 5 x 5 mm (input tray)
Non-printable area (roll media)	5 x 5 x 5 x 5 mm
Printing path	HP Click App, HP Click Driver, HP app, Windows and MacOS printer drivers, Apple AirPrint, Android Default Print Service, Printing support for ChromeOS, Email printing
Print speed	35 sec/page on A1, 68 A1 prints per hour⁸
Remote print enabled	Yes
Security features	HP Wolf Essential Security: Secure boot with HW root of trust Firmware Code Signature Validation Automatic FW Updates HTTPS Redirect enabled by default SNMPv1/2 read-only by default SNMPv3 disabled by default Write-protected memory HP Cartridge Security Unique password Disable USB ports TLS 1.2 802.1x IPv4 & IPv6 Compatibility CA/JD Compatibility
Software included	HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS
Storage temperature range	-25 to 55ºC
Package weight	27 kg
Documents	HP DesignJet T230 24-in Printer

^footnote1 HP One-click printing with HP Click software. HP Click software is only compatible with Original HP ink supplies. Applicable to PDF, JPEG, TIFF, DWF, and HP-GL/2 files.

^footnote2 The percentage reductions in energy consumption are based on tests conducted by HP, 2024. Data based on the implementation of auto-scheduled on/off usage in various printer models, measured on a monthly basis. Actual savings may vary depending on the specific usage patterns, printer models, and environmental conditions.

^footnote3 Use up to 96% less ink for routine maintenance vs. competitor. Based on HP internal testing, June 2024, comparing the HP DesignJet T200 Printer series and Canon iPF TM printer series in terms of ink used during routine printhead cleanings.

^footnote4 Based on competitive comparison of operational footprint. Test performed by Sogeti and commissioned by HP in May 2024.

^footnote5 ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC, 50-60% relative humidity, on A0 printing material in Best or Normal mode with HP Heavyweight Coated roll feed and Original HP inks.

^footnote6 With HP Premium Instant Dry Photo Gloss media with Original HP inks.

^footnote7 Calculation done taking into account two normal printhead cleanings and ink on an A1 CAD drawing with black and colour lines and a pixel coverage of 5.2%.

^footnote8 Mechanical printing time. Printed in Fast mode with Economode on, using HP Bright White Inkjet Paper (bond) and Original HP inks. Actual performance may vary based on a variety of conditions, including but not limited to network configuration.

What's in the box

HP DesignJet T230 Printer
User Guide
Software CD
Starter Inks
Power Cable
Warranty Information
Printhead

Reviews

There are no reviews yet, be the first one to write one!

Promo Terms

£50 Cashback

Get £50 Cashback from HP when you purchase this printer.

Terms & conditions and How to Claim (UKI & IRE):
Please visit the HP Promotions website. to claim your cashback. (For (IRE) Ireland, please change country/region on claim page)

End Date: 31st October 2025

Please Note:
Cash back claim must be submitted to HP within 30 days after the purchase date. Cashback is normally through bank transfer.

Delivery Information

Free next business day delivery on all orders over £36

Terms & Conditions

Resellers: We only sell goods to end users whether that is a private user or a business user. We reserve the right to cancel orders that we believe have been purchased for the purpose of resale. This includes but is not limited to any individual or business who are managed print providers, IT resellers, Amazon sellers or eBay sellers who do not qualify as end users.
Free Next Business Day Delivery on all orders over £30 ex VAT / £36 inc VAT.
For all orders under £30 ex VAT / £36 inc VAT there is a £4.95 ex VAT delivery charge.
Next Business Day Delivery only includes orders being shipped to mainland Great Britain.
Delivers to AB postcode area, the higher parts of Scotland and Scottish Isles may be a 'Two Day' service and not 'Next Day'
Next Business Day Delivery is available for all orders placed before 4.30pm Monday to Friday. Orders placed after 4.30pm on Friday or at the weekend will be processed on the next business day (see delivery estimates).
Our standard delivery service is a one man to the ground floor service - customer assistance may be required. Non ground floor deliveries may require a two man delivery and/or on-site installation. Please call our sales team for more information on 0161 308 5800.
All public holidays and bank holidays are classed as non-business days.
Whilst we will endeavour to ensure your order is sent on a next business day service we can not be held responsible for delays incurred by our couriers or delays due to bad weather or any other circumstance that is beyond our control.
For all orders going to Northern Ireland there is a £25.00 ex VAT delivery charge and this can take 2-3 business days.
For deliveries to other areas including Isle of Man, Scottish Islands and Channel Islands please contact us for a quote.

Order Placed	Expected Delivery Date
Monday before 4:30pm	Tuesday
Tuesday before 4:30pm	Wednesday
Wednesday before 4:30pm	Thursday
Thursday before 4:30pm	Friday
Friday before 4:30pm	Monday
Saturday	Tuesday
Sunday	Tuesday

Downloadables

Product Brochure

Questions? Call us on 0161 308 5800 or email [email protected]

Image not specified

HP DesignJet T230 (2025 Version) Brochure

Questions & Answers

Does this printer have an a1 sheet feed
Fri Mar 07 2025
Written by Richard
- Hi Richard Thank you for your question. Yes, the HP DesignJet T230 can take A1 sheets through the paper feed. Hope this helps Thank you The Printerbase Team
  Mon Mar 10 2025
  Written by Adam Whitehead (Admin)
