Technology
|
|
Printing Method
|
PrecisionCore™ Print Head
|
|
Nozzle Configuration
|
800 Nozzles Black, 800 Nozzles per Color
|
|
Minimum Droplet Size
|
5 pl, With Variable-Sized Droplet Technology
|
|
Ink Technology
|
DURABrite™ Pro
|
|
Category
|
Office Workgroup, Office Departmental
|
|
All-in-One Functions
|
Print
|
|
Print
|
|
Number of colours
|
4 colour
|
|
First Page Out
|
Monochrome5.5 Seconds, Colour5.5 Seconds
|
|
Printing Speed ISO/IEC 24734
|
25 pages/min Monochrome, 24 pages/min Colour
|
|
Duplex Printing Speed ISO/IEC 24734
|
17 A4 Pages/min Monochrome, 16 A4 Pages/min Colour
|
|
Printing Speed ISO/IEC 24734 (A3)
|
13 pages/min Monochrome, 13 pages/min Colour
|
|
Duplex Printing Speed ISO/IEC 24734 (A3)
|
11 A4 Pages/min Monochrome, 11 A4 Pages/min Colour
|
|
Printing Speed
|
35 pages/min Monochrome (plain paper 75 g/m²), 35 pages/min Colour (plain paper 75 g/m²)
|
|
Printing Resolution
|
4,800 x 1,200 DPI
|
|
Printing Volume
|
75,000 pages per month
|
|
Recommended Duty Cycle
|
500 - 5,000 pages per month
|
|
Colours
|
Black, Cyan, Yellow, Magenta
|
|
Connectivity
|
|
Network Printing Protocols
|
IPP, LDP, Port 9100, WSD
|
|
Network Management Protocols
|
SNMP, HTTP, DHCP, BOOTP, APIPA, DDNS, mDNS, SNTP, SLP, WSD, LLTD, Ping
|
|
Network Protocol
|
IPv4, IPv6 TCP/IPv4, TCP/IPv6
|
|
Interfaces
|
USB 2.0-A (2x), USB 3.0 Type B, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Wireless LAN IEEE 802.11a/b/g/n, USB host
|
|
WLAN Security
|
WEP 64 Bit, WEP 128 Bit, WPA2 Enterprise, WPA2 PSK (AES)
|
|
Paper / Media Handling
|
|
Paper Formats
|
A3+, A3 (29.7x42.0 cm), A4 (21.0x29.7 cm), A5 (14.8x21.0 cm), A6 (10.5x14.8 cm), B5, C4 (Envelope), C6 (Envelope), No. 10 (Envelope), Letter, 10 x 15 cm, 13 x 18 cm, 20 x 25 cm, 16:9, Legal
|
|
Compatible Paper Weight
|
64 - 300g/m²
|
|
Duplex
|
Yes (A4/A3, plain paper)
|
|
Standard Paper input
|
335 Sheets Standard, 85 Sheets MP tray, 250 Sheets paper tray
|
|
Output Tray Capacity
|
250 Sheets
|
|
Paper Tray Capacity
|
335 Sheets Standard, 1,835 Sheets Maximum
|
|
Standard paper tray(s)
|
85-Sheet Multi-Purpose Tray, 250-sheet paper tray
|
|

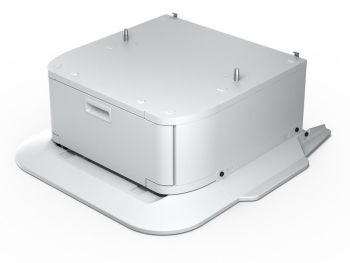

Optional paper tray(s)
|
3 x 500 sheet paper tray
|
|
Maximum paper input
|
1,835
|
|
Rear paper path (special media)
|
Yes
|
|
Number of paper trays
|
3
|
|
Paper Feed
|
|
Paper Input Name
|
RASF C1 Duplex
|
|
Paper Formats
|
A3+, A3, A4, A5, A6, B4, B5, B6, C4 (Envelope), C5 (Envelope), C6 (Envelope), DL (Envelope), Letter, 10 x 15 cm, 13 x 18 cm, 16:9, HLT, User defined, Legal, Executive, SRA3, Tabloid A3, A4, A5, A6, B4, B5, B6, Letter, HLT, Legal, Executive, Tabloid A3, A4, A5, A6, B4, B5, B6, Letter, HLT, Legal, Executive
|
|
Custom sizes
|
Min55x 330 mm to Max 127x 1,200 mm
|
|
Compatible paper weight
|
64 g/m² - 300 g/m² 64 g/m² - 200 g/m² 64 g/m² - 150 g/m²
|
|
Paper Capacity 1
|
85 80gsm 80gsm
|
|
Media type
|
Plain Paper, Recycled Paper, Colour Paper, Letterhead, Glossy Photo Paper Plain Paper, Recycled Paper, Colour Paper, Letterhead
|
|
General
|
|
Energy Use
|
0.8 Watt (sleep mode), 37 Watt (Printing), 8.5 Watt (Ready), 0.1 Watt (Power off), TEC 0.14 kWh/week
|
|
Supply Voltage
|
AC 220 V - 240 V
|
|

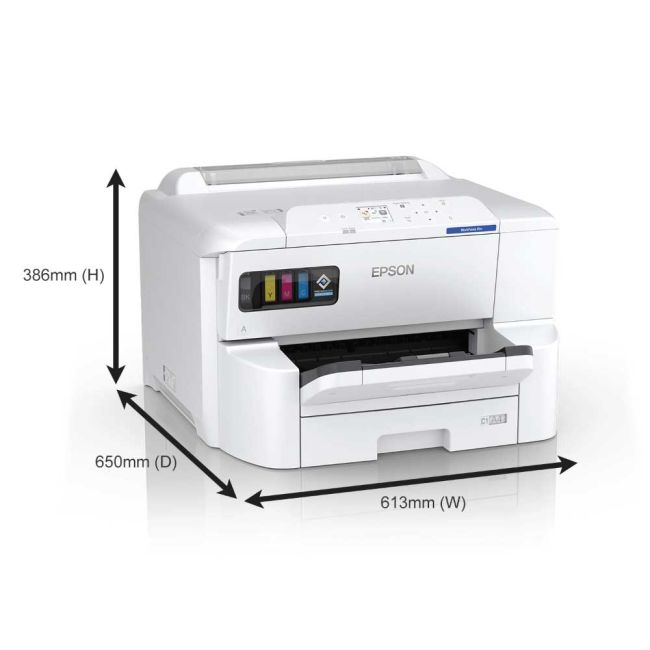

Product dimensions
|
613 x 650 x 386 mm (Width x Depth x Height)
|
|
Product weight
|
35.4 kg
|
|
Compatible Operating Systems
|
Mac OS 10.10.x, Mac OS 10.14. x, Mac OS 10.15. x, Mac OS 11. x, Mac OS 12. x, Mac OS X 10.11.x, Mac OS X 10.12.x, Mac OS X 10.13.x, Windows 10 (32/64 bit), Windows 11, Windows 7 (32/64 bit), Windows 8 (32/64 bit), Windows 8.1 (32/64 bit), Windows Server 2003 R2 x64, Windows Server 2003 SP2, Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022, Windows Vista (32/64 bit), Windows XP Professional x64 Edition SP2 or later, Windows XP SP3 or later (32-bit), macOS 11 or later
|
|
Sound Power
|
Operation:6.7 B (A)
|
|
Noise
|
Operation:52 dB (A)
|
|
Mobile and Cloud printing services
|
Epson Connect (iPrint, Email Print), Apple AirPrint, Google Cloud Print, Mopria
|
|
Power supply
|
220V, 240V
|
|

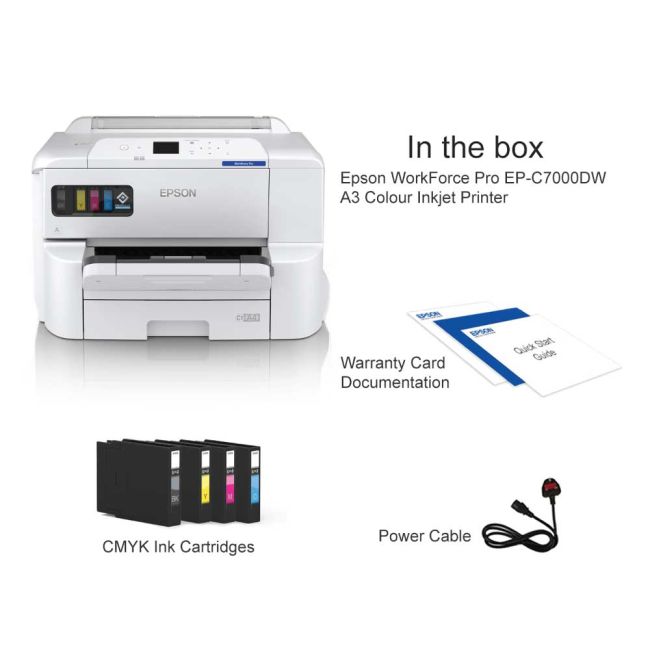

What's in the box
|
Main unit, Phone cable, Quick Setup Guide, Warranty card
|
|
Additional Features
|
|
Memory
|
2,048 MB
|
|
Features
|
Direct print from USB
|
|

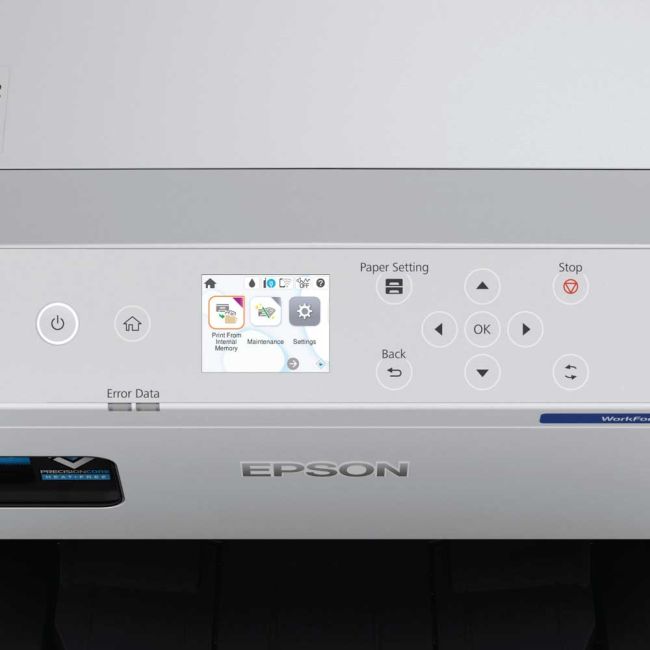

Panel
|
Type: Color, Touch-panel, Diagonal:6.1 cm
|
|
Media Handling
|
Automatic duplex, Rear specialty media feed, Thick Media Support
|
|
Security Functions
|
Limit access function with Epson Web Config, Secure confidential printing with PIN code release, LDAP Address Book, IPsec, IEEE802.1x, SSL (Server authentication), Panel Admin Mode
|
|
Other
|
|
Warranty
|
12 months On-site service
|
|
Product Safety
|
|
Product Safety Warnings
|
Contains 2,4,7,9-tetramethyldec-5-yne-4,7-diol. May produce an allergic reaction. Contains 2-methylisothiazol-3(2H)-one. May produce an allergic reaction. Always follow the information on the product label
|
|
Other Features
|
|
Emulations
|
PCL5c, PCL6, ESC/P-R, PostScript 3, PDF 1.7
|
|
Country of Origin
|
|
Country Of Origin
|
Indonesia
|
