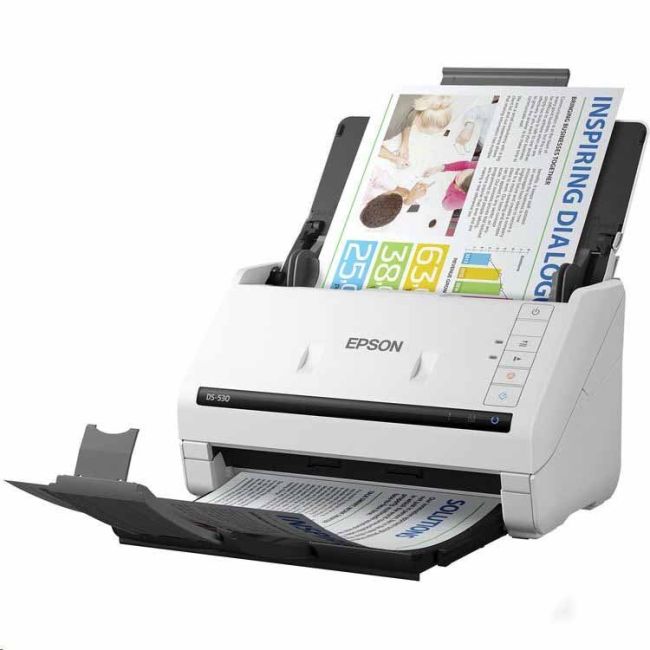

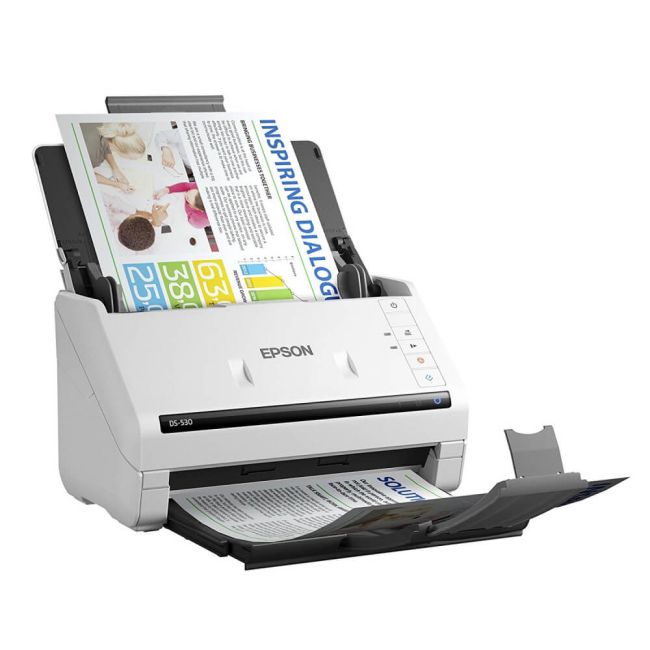

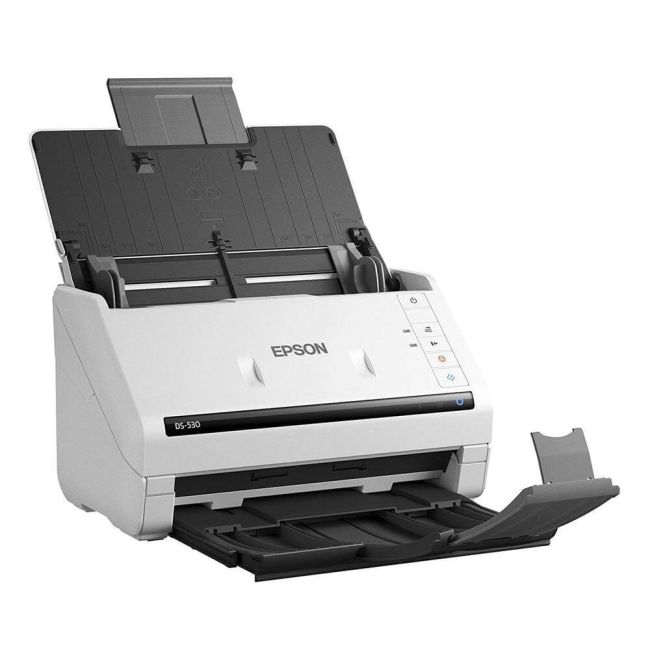

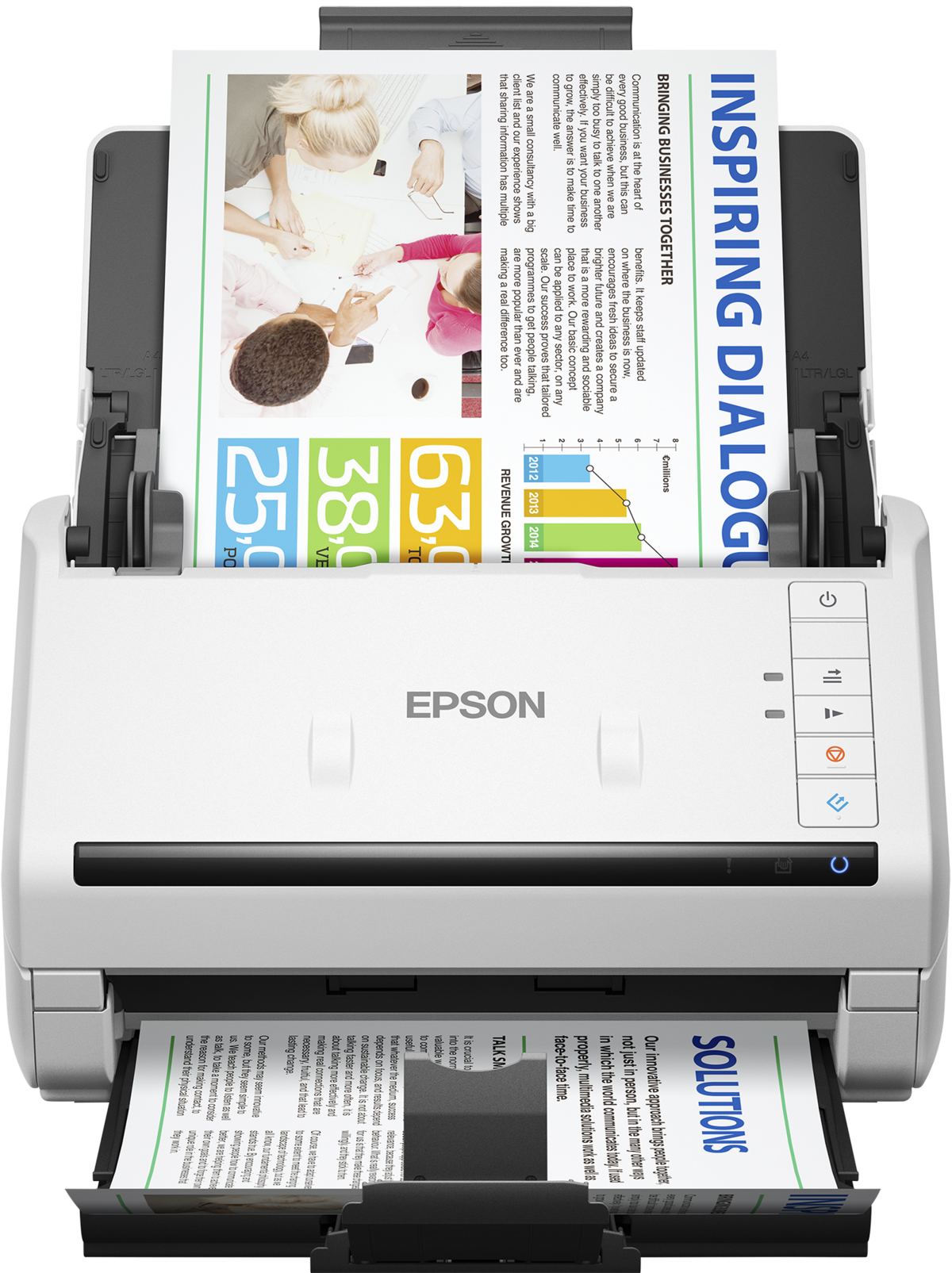

Epson WorkForce DS-530 A4 Document Scanner

Epson WorkForce DS-530II A4 Document Scanner

Part No: B11B261401BY

A4 Desktop Scanner
Up to 35 ppm Scanning Speed
50 ADF (Automatic Document Feeder)
600 x 600 dpi Scanning Resolution
USB Interface

Order now for delivery on Tuesday

£262.94ex VAT£315.53inc VAT

Qty:

low on stock

Product Spec

Disc Printing:: No
Dimensions W x D x H:: 296 x 169 x 176
Weight (Kg):: 3.7
Max Paper Weight:: 413gsm
Borderless Printing:: No
ADF:: Yes
Input Capacity:: 50 Sheet
Paper Handling Output:: 50 Sheet
Duplex Scan:: Yes
Scan Speed (PPM):: 35
Scanner Type:: Sheetfed
Barcode Printing:: No
Functions:: Scan Only
GTIN:: 08715946685939
BarCode:: 8715946685939
Compatibility:: Mac, Windows
Connectivity:: USB
Max Paper Size:: A4
Manufacturer:: Epson

Product Description

With powerful media handling and innovative smart features to ensure a high level of data integrity, the WorkForce DS-530 is geared towards highly-efficient and simple integration into an organisation’s workflow. With a 50-page ADF and the ability to scan at up to 35ppm/70ipm, it offers a wide range of media handling options that enable you to rapidly capture, index, store and share business documents.

Dimensions: (W)296‎ x (D)169 x (H)176 mm - Weight: 3.7kg

1 Year Warranty

Compatible Operating Systems: Linux, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X, Mac OS X 10.6.8, Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8 (32/64 bit), Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Vista, Windows Vista x64, XP Professional x64 Edition

Manufacturer's Description

Manufacturer Description

slide {0} of {1}, zoom in, WorkForce DS-530II

Technology
Scanner Type	Sheetfed Scanner
Optical Resolution	600 DPI x 600 DPI (Horizontal x Vertical)
ADF Minimum Document Size	50.8 mm x 50.8 mm (Horizontal x Vertical)
ADF Maximum Document Size	215.9 mm x 6,096 mm (Horizontal x Vertical)
Paper Formats	A4 (21.0x29.7 cm), A5 (14.8x21.0 cm), A6 (10.5x14.8 cm), B5, B6, Letter, Postcard, Business cards, Plastic cards, Legal, Executive
Scanning color depth	Input: 30 Bits Color / 10 Bits Monochrome , Output: 24 Bits Color / 8 Bits Monochrome
Ultrasonic Sensor	Yes
Category	High Capacity, General Office
Scanner
Light Source	ReadyScan LED technology
Output Resolution	75, 100, 150, 200, 240, 300, 600, 1200 DPI
Scan speed
Scanning Speed	Monochrome:35 pages/min - Color:35 pages/min measured with Size: A4 , Resolution: 200 / 300 dpi, Monochrome:70 image/min - Color:70 image/min measured with Size: A4 , Resolution: 200 / 300 dpi
Paper / Media Handling
Paper weight	Auto loading: 27 - 413 g/m²
Automatic Document Feeder Type	Single pass dual scanning
Reliability Daily Duty Cycle	5,500 pages
Automatic Document Feed	50 pages
Duplex Scan	Yes
Scanning Features
Features	RGB colour dropout, Advanced Colour Dropout / Enhance, Skip blank page, A3 stitching, Punch holes removal, Advanced editing, Automatic de-skew, Automatic multi-document recognition, RGB colour enhance, Dual Image Output (Windows only), Auto-rotation, Text enhancement, Edge fill, Unsharp Mask (USM), Descreening, Automatic Folder Creation, Barcode Recognition, Zonal OCR A & B support, Full Zonal OCR
Output formats	BMP, JPEG, TIFF, multi-TIFF, PDF, searchable PDF, secure PDF, PDF/A, PNG
File compression features	Hardware JPEG compression, TIFF Compression (JPEG(7) , CITT G4, LZW), PDF Compression
Advanced document integration	Scan to Email, Scan to FTP, Scan to Microsoft SharePoint^®, Scan to Print, Scan to Web folders
Scanning Volume	5,500 Pages per day
Connectivity
Interfaces	USB 3.2 Gen 1x1
General
Supply Voltage	AC 100 V - 240 V
Product dimensions	296‎ x 169 x 176 mm (Width x Depth x Height)
Product weight	3.7 kg
Drivers	TWAIN, WIA, ISIS (Web download), SANE (Linux)
Included Software	Document Capture Pro, Epson Document Capture (Mac only), Epson Document Capture Pro Server (on free download), Epson Scan 2, Presto! BizCard 5.6
Compatible Operating Systems	Citrix XenApp 5.0, Citrix XenApp 6.0, Citrix XenApp 7.6 and above, Linux, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X, Mac OS X 10.6.8, Windows 10, Windows 10 (32/64 bit), Windows 11, Windows 7, Windows 7 x64, Windows 8, Windows 8 (32/64 bit), Windows 8 RT, Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Vista, Windows Vista x64, Windows Server 2003 R2, XP Professional x64 Edition
Noise	Operation:59 dB (A)
Supported Humidity	Operation 15% - 80%, Storage 15% - 85%
Supported Temperature	Operation 5° C - 35° C, Storage -25° C - 60° C
What's in the box	Driver and utilities, Main unit, Power cable, Setup guide, USB cable, Warranty document
Options	Roller Assembly Kit
Country of Origin
Country Of Origin	Indonesia

Brochure

WorkForce DS-530II

The intelligent sheetfed document scanning choice, revolutionising workflows with smart features for capturing a wide range of documents

With powerful media handling and innovative smart features to ensure a high level of data integrity, the WorkForce DS-530II is geared towards highly-efficient and simple integration into an organisation’s workflow. With a 50-page ADF and the ability to scan at up to 35ppm/70ipm, it offers a wide range of media handling options that enable you to rapidly capture, index, store and share business documents.

An industry first with Slow Mode¹

Scan crumpled, long or fragile documents without increasing file sizes

Active Separation Roller System

Prevents tedious double feeds ensuring every piece of paper gets scanned

Optional flatbed scanner conversion kit

Enables scanning of items from stamps to passports, books and more

Auto Scan Mode

Quickly process physical documents in manageable amounts.

slide 1 of 4, show larger image, workforce ds-530ii

slide 1 of 4, zoom in, workforce ds-530ii

slide 2 of 4, zoom in, workforce ds-530ii

slide 3 of 4, zoom in, workforce ds-530ii

slide 4 of 4, zoom in, workforce ds-530ii

Intelligent features improve efficiency, accuracy and data reliability

With an industry-first slow mode¹ for scanning crumpled or fragile documents, the ability to scan challenging media has never been easier. The Active Separation Roller System prevents tedious document double feeds ensuring every piece of paper gets scanned and the Double Feed Detection Skip (DFDS) means you can scan difficult media like envelopes or documents with post-it notes. Auto Scan Mode enables the processing of a vast number of documents as manageable amounts, enabling them to be scanned as one file.

Highly versatile

The optional flatbed scanner conversion kit allows effective document processing from stamps to passports and books. Single-pass double-sided scanning ensures rapid document processing, while it's possible to scan a versatile array of media such as paper as thin as 27gsm, or thick card at 413gsm. The A3 carrier sheet speeds up the process by automatically stitching larger documents back together digitally.

Flexible connectivity

High-speed USB 3.0 with TWAIN and ISIS drivers for enhanced compatibility with Document Management Systems.

Image enhancement and document management software

Epson Scan 2.0 software makes it easy to edit images with features such as de-skew and auto rotate, while Document Capture Pro is the easy to use solution for capturing and storing electronic documents at the touch of a button.

Specifications

Technology
Scanner Type	Sheetfed Scanner
Optical Resolution	600 DPI x 600 DPI (Horizontal x Vertical)
ADF Minimum Document Size	50.8 mm x 50.8 mm (Horizontal x Vertical)
ADF Maximum Document Size	215.9 mm x 6,096 mm (Horizontal x Vertical)
Paper Formats	A4 (21.0x29.7 cm), A5 (14.8x21.0 cm), A6 (10.5x14.8 cm), B5, B6, Letter, Postcard, Business cards, Plastic cards, Legal, Executive
Scanning color depth	Input: 30 Bits Color / 10 Bits Monochrome , Output: 24 Bits Color / 8 Bits Monochrome
Ultrasonic Sensor	Yes
Category	High Capacity, General Office
Scanner
Light Source	ReadyScan LED technology
Output Resolution	75, 100, 150, 200, 240, 300, 600, 1200 DPI
Scan speed
Scanning Speed	Monochrome:35 pages/min - Color:35 pages/min measured with Size: A4 , Resolution: 200 / 300 dpi, Monochrome:70 image/min - Color:70 image/min measured with Size: A4 , Resolution: 200 / 300 dpi
Paper / Media Handling
Paper weight	Auto loading: 27 - 413 g/m²
Automatic Document Feeder Type	Single pass dual scanning
Reliability Daily Duty Cycle	5,500 pages
Automatic Document Feed	50 pages
Duplex Scan	Yes
Scanning Features
Features	RGB colour dropout, Advanced Colour Dropout / Enhance, Skip blank page, A3 stitching, Punch holes removal, Advanced editing, Automatic de-skew, Automatic multi-document recognition, RGB colour enhance, Dual Image Output (Windows only), Auto-rotation, Text enhancement, Edge fill, Unsharp Mask (USM), Descreening, Automatic Folder Creation, Barcode Recognition, Zonal OCR A & B support, Full Zonal OCR
Output formats	BMP, JPEG, TIFF, multi-TIFF, PDF, searchable PDF, secure PDF, PDF/A, PNG
File compression features	Hardware JPEG compression, TIFF Compression (JPEG(7) , CITT G4, LZW), PDF Compression
Advanced document integration	Scan to Email, Scan to FTP, Scan to Microsoft SharePoint^®, Scan to Print, Scan to Web folders
Scanning Volume	5,500 Pages per day
Connectivity
Interfaces	USB 3.2 Gen 1x1
General
Supply Voltage	AC 100 V - 240 V
Product dimensions	296‎ x 169 x 176 mm (Width x Depth x Height)
Product weight	3.7 kg
Drivers	TWAIN, WIA, ISIS (Web download), SANE (Linux)
Included Software	Document Capture Pro, Epson Document Capture (Mac only), Epson Document Capture Pro Server (on free download), Epson Scan 2, Presto! BizCard 5.6
Compatible Operating Systems	Citrix XenApp 5.0, Citrix XenApp 6.0, Citrix XenApp 7.6 and above, Linux, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X, Mac OS X 10.6.8, Windows 10, Windows 10 (32/64 bit), Windows 11, Windows 7, Windows 7 x64, Windows 8, Windows 8 (32/64 bit), Windows 8 RT, Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Vista, Windows Vista x64, Windows Server 2003 R2, XP Professional x64 Edition
Noise	Operation:59 dB (A)
Supported Humidity	Operation 15% - 80%, Storage 15% - 85%
Supported Temperature	Operation 5° C - 35° C, Storage -25° C - 60° C
What's in the box	Driver and utilities, Main unit, Power cable, Setup guide, USB cable, Warranty document
Options	Roller Assembly Kit
Country of Origin
Country Of Origin	Indonesia

What's in the Box

Documents

What's in the box

Epson WorkForce DS-530 Scanner

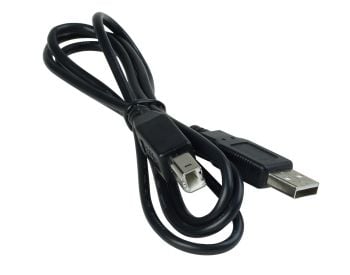

USB Cable
Power Cable
User Guide & Software CD
