Epson SureColor SC-T7700D A0/44" Colour Format Inkjet Printer

Epson SureColor SC-T7700D A0/44" Colour Format Inkjet Printer

Part No: C11CH83301A1

2400 x 1200 DPI Print Resolution
4 GB Memory
USB, Network & Wireless Connection
Automatic Cutter
ESC/P-R, PostScript 3, Adobe® Postscript 3®, PDF 1.7, HP-GL2, RTL

£4,187.12ex VAT£5,024.54inc VAT

Qty:

low on stock

Product Spec

Memory:: 4 GB
Disc Printing:: No
Dimensions W x D x H:: 1,848‎ x 499 x 975 mm
Emulation:: ESC/P-R, PostScript 3, Adobe® Postscript 3®, PDF 1.7, HP-GL2, RTL
Borderless Printing:: Yes
Mono or Colour:: Colour
Duplex Scan:: No
Barcode Printing:: No
Cutter:: Automatic
Functions:: Print Only
GTIN:: 08715946699554
BarCode:: 8715946699554
Double Sided:: Print
Compatibility:: Mac, Windows
Connectivity:: Network, USB, Wireless
Printer Type:: Inkjet
Max Paper Size:: A0
Print DPI:: 2400 x 1200
Manufacturer:: Epson

Product Description

This fully integrated, technical printing solution offers high-productivity, smart features, document security and easy operation. The SureColor SC-T7700D Dual Roll with Adobe Postscript 3 is a technical printer that's been designed for various applications, including: precise line definition, colour accuracy, and security for AEC/CAD/GIS plans and drawings; bright colour and high speed production for POS posters in retail; and precision, colour replication, and security for public sector printing.

Manufacturer's Description

Manufacturer Description

slide {0} of {1}, zoom in, SureColor SC-T7700D

4:10

Technology
Printing Method	PrecisionCore^™ Micro TFP printhead
Ink Technology	Ultrachrome^® XD3
Print
Number of colours	6 colour
Colours Capacity	Photo Black [350ml, 700ml], Matte Black [350ml, 700ml], Cyan [350ml, 700ml], Yellow [350ml, 700ml], Magenta [350ml, 700ml], Red [350ml, 700ml]
Minimum Droplet Size	3.5 pl, With Variable-Sized Droplet Technology
Minimum line width	0.02 mm
Line accuracy	+/-0.1
Print Speeds (CAD A1 page size)	Quick3 ppm
Print from	PC, MAC, Network, Mobile Device, Cloud, Direct USB
Nozzle Configuration	1,600 Nozzles per Color
Printing Resolution - Draft	600 x 600 DPI
Printing Resolution - Maximum Quality	2,400 x 1,200 DPI
Printing Resolution - Speed	300 x 600 DPI
Paper / Media Handling
Paper Formats	17", 24", 36", 44", A1, A0, B0, B1 (72.8x102.8 cm)
Thickness	Single Sheet0.1 mm, Roll0.8 mm, Rigid board supported
Auto Take Up Reel	Yes
Printable Length	Roll91 Minimum
Roll Capacity - Diameter	Roll 1:170 mm, Roll 2:170 mm
Roll Capacity - Weight	Roll 1:12,500 g, Roll 2:12,500 g
Borderless printing on	20 inches, 10" (25.4cm) Roll, 17" (43.1cm) Roll, 24" (60.9cm) Roll, 36" (91.4cm) Roll, 44" (111.8cm) Roll
General
Power consumption	70 Watt, 0.3 Watt (standby)
Supply Voltage	AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions	1,848‎ x 499 x 975 mm (Width x Depth x Height)
Product weight	158 kg
Sound Power	Operation:49.6 B (A) - Standby:6.6 B (A)
Mobile and Cloud printing services	Apple AirPrint, Epson Cloud Solution PORT, Epson Smart Panel App
Noise Level	Operation (Roll):6.6 dB (A) Operating (Sheet):6.6 dB (A)
What's in the box	AC adapter, Adobe PostScript 3, Ink set, Installation/safety manual, Maintenance boxes, Roll Feed Spindle 44", Setup guide, SureColor T-Series Printer, Warranty Documents
Optional extras	Cover Plus warranty extensions, SSD (Solid State Drive), NFC Card Reader (Server), NFC Card Reader (Serverless), Roll Feed Spindle 44"
Other Features
Memory	4 GB
Compatible Operating Systems	Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP, macOS 11 or later
Emulations	ESC/P-R, PostScript 3, Adobe^® Postscript 3^®, PDF 1.7, HP-GL2, RTL
Optional storage	1TB SSD

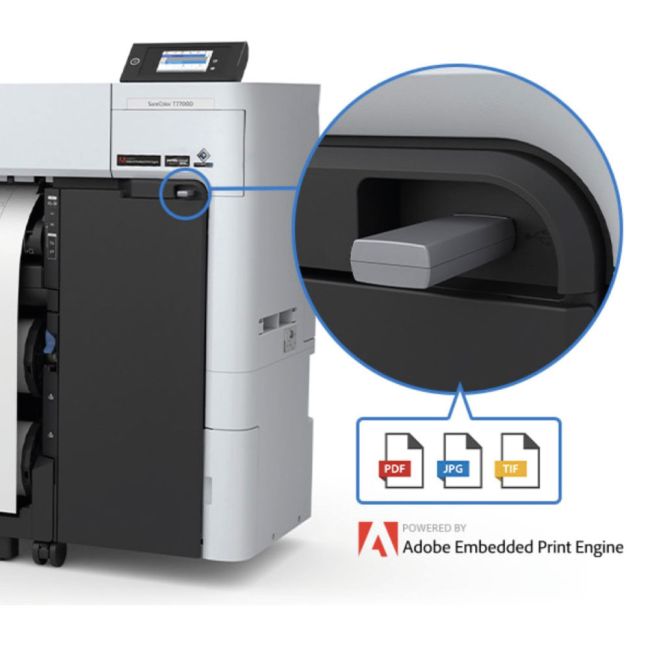

Features	Touchscreen, Bluetooth, Direct print from USB, Driver Preview, Auto Take up Reel, Nozzle Verification Technology
Interfaces	Hi-Speed USB - compatible with USB 2.0 specification, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac
Network	Wired, Wireless
Optional Software & Solutions	Epson Print Automate, Epson Cloud Solution PORT, Epson LFP Accounting Tool, Epson Device Admin, Epson Edge Dashboard, Epson Print Admin, Epson Print Admin Serverless
Security	SNMP, IPSec, AES-128, AES-256, Data storage Encryption, Data Encryption, WPA3, NFC - Card Authentication Reader, TMP (Trusted Platform Module), PIN code Release, Image Overwrite, User Authorisation, LDAP, IEEE802, SSL/TLS
Media Handling	Auto cutter, Auto take up reel, Borderless Print, Roll (Simplex), Thick Media Support
Other
Warranty	24 months On-site service
LCD and Memory Cards
Panel	Type: Color, Touch-panel, Diagonal:11 cm
Country of Origin
Country Of Origin	Indonesia

Brochure

SureColor SC-T7700D

This fully integrated, technical printing solution offers high-productivity, smart features, document security and easy operation.

The SureColor SC-T7700D is a technical printer that's been designed for various applications, including: precise line definition, colour accuracy, and security for AEC/CAD/GIS plans and drawings; bright colour and high speed production for POS posters in retail; and precision, colour replication, and security for public sector printing.

Legal Statement
Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Enhanced security features

Protect highly confidential documents with ease

Compact and contemporary design

Fits seamlessly into most working environments

Impressive print speeds

Up to 130m²/hr

Versatility

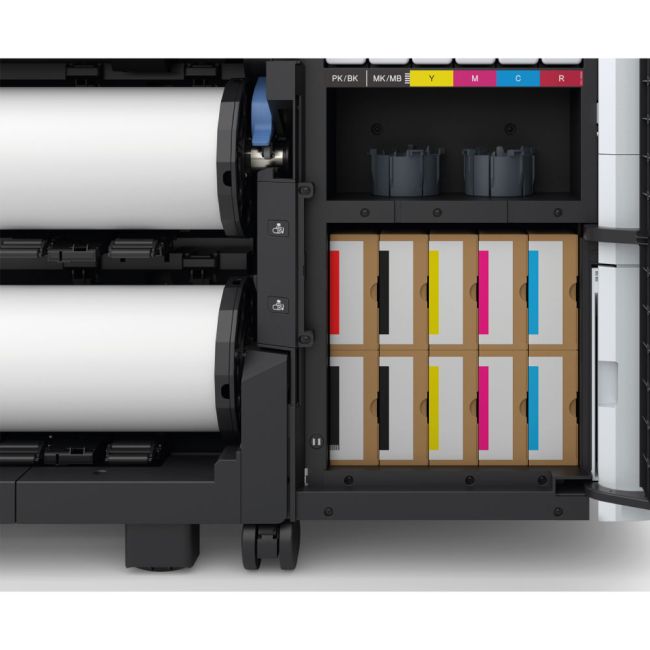

Automatic media loading, dual roll, auto take-up, and auto-switching

Quality

6-colour printer with 350/700ml ink cartridges

slide 1 of 6, show larger image, surecolor sc-t7700d

slide 1 of 6, zoom in, surecolor sc-t7700d

4:10

slide 2 of 6, zoom in, surecolor sc-t7700d

slide 3 of 6, zoom in, surecolor sc-t7700d

slide 4 of 6, zoom in, surecolor sc-t7700d

slide 5 of 6, zoom in, surecolor sc-t7700d

slide 6 of 6, zoom in, surecolor sc-t7700d

Complete document solution

The SC-T7700D includes enhanced IT and security features. This is particularly useful for designers, architects and construction companies who print detailed plans and drawings, while protecting confidential documents. Collaboration is further improved, and workloads managed more efficiently, through central management tracking applications: Epson Cloud Solutions PORT and Epson Device Admin for IT managers.

Fast and feature-rich

High productive output speeds are achieved with the PrecisionCore MicroTFP printhead, Variable Sized Droplet Technology and Nozzle Verification Technology.

Compact footprint - versatile design

The SureColor SC-T7700D design is both contemporary and compact. It fits into most working environments because of its flat and unobtrusive design, which is space saving and practical.

Highly detailed prints, every time

Whether printing detailed architectural, engineering and construction (AEC) CAD prints, or POS posters for retail, the SureColorSC-T7700D's output is both precise and vibrant. The printer features an Epson PrecisionCore MicroTFP printhead and 6-colour UltraChrome XD3 all pigment inks, which include a new red ink to broaden the overall colour gamut.

Business solutions

The SureColor SC-T7700D is supported by industry-leading software providers for production enhancement and managed print systems.

Specifications

Technology
Printing Method	PrecisionCore^™ Micro TFP printhead
Ink Technology	Ultrachrome^® XD3
Print
Number of colours	6 colour
Colours Capacity	Photo Black [350ml, 700ml], Matte Black [350ml, 700ml], Cyan [350ml, 700ml], Yellow [350ml, 700ml], Magenta [350ml, 700ml], Red [350ml, 700ml]
Minimum Droplet Size	3.5 pl, With Variable-Sized Droplet Technology
Minimum line width	0.02 mm
Line accuracy	+/-0.1
Print Speeds (CAD A1 page size)	Quick3 ppm
Print from	PC, MAC, Network, Mobile Device, Cloud, Direct USB
Nozzle Configuration	1,600 Nozzles per Color
Printing Resolution - Draft	600 x 600 DPI
Printing Resolution - Maximum Quality	2,400 x 1,200 DPI
Printing Resolution - Speed	300 x 600 DPI
Paper / Media Handling
Paper Formats	17", 24", 36", 44", A1, A0, B0, B1 (72.8x102.8 cm)
Thickness	Single Sheet0.1 mm, Roll0.8 mm, Rigid board supported
Auto Take Up Reel	Yes
Printable Length	Roll91 Minimum
Roll Capacity - Diameter	Roll 1:170 mm, Roll 2:170 mm
Roll Capacity - Weight	Roll 1:12,500 g, Roll 2:12,500 g
Borderless printing on	20 inches, 10" (25.4cm) Roll, 17" (43.1cm) Roll, 24" (60.9cm) Roll, 36" (91.4cm) Roll, 44" (111.8cm) Roll
General
Power consumption	70 Watt, 0.3 Watt (standby)
Supply Voltage	AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions	1,848‎ x 499 x 975 mm (Width x Depth x Height)
Product weight	158 kg
Sound Power	Operation:49.6 B (A) - Standby:6.6 B (A)
Mobile and Cloud printing services	Apple AirPrint, Epson Cloud Solution PORT, Epson Smart Panel App
Noise Level	Operation (Roll):6.6 dB (A) Operating (Sheet):6.6 dB (A)
What's in the box	AC adapter, Adobe PostScript 3, Ink set, Installation/safety manual, Maintenance boxes, Roll Feed Spindle 44", Setup guide, SureColor T-Series Printer, Warranty Documents
Optional extras	Cover Plus warranty extensions, SSD (Solid State Drive), NFC Card Reader (Server), NFC Card Reader (Serverless), Roll Feed Spindle 44"
Other Features
Memory	4 GB
Compatible Operating Systems	Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP, macOS 11 or later
Emulations	ESC/P-R, PostScript 3, Adobe^® Postscript 3^®, PDF 1.7, HP-GL2, RTL
Optional storage	1TB SSD
Features	Touchscreen, Bluetooth, Direct print from USB, Driver Preview, Auto Take up Reel, Nozzle Verification Technology
Interfaces	Hi-Speed USB - compatible with USB 2.0 specification, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac
Network	Wired, Wireless
Optional Software & Solutions	Epson Print Automate, Epson Cloud Solution PORT, Epson LFP Accounting Tool, Epson Device Admin, Epson Edge Dashboard, Epson Print Admin, Epson Print Admin Serverless
Security	SNMP, IPSec, AES-128, AES-256, Data storage Encryption, Data Encryption, WPA3, NFC - Card Authentication Reader, TMP (Trusted Platform Module), PIN code Release, Image Overwrite, User Authorisation, LDAP, IEEE802, SSL/TLS
Media Handling	Auto cutter, Auto take up reel, Borderless Print, Roll (Simplex), Thick Media Support
Other
Warranty	24 months On-site service
LCD and Memory Cards
Panel	Type: Color, Touch-panel, Diagonal:11 cm
Country of Origin
Country Of Origin	Indonesia

What's in the Box

Documents

What's in the box

Epson SureColor SC-T7700D Printer
User Guide
Starter Inks
Power Cable
