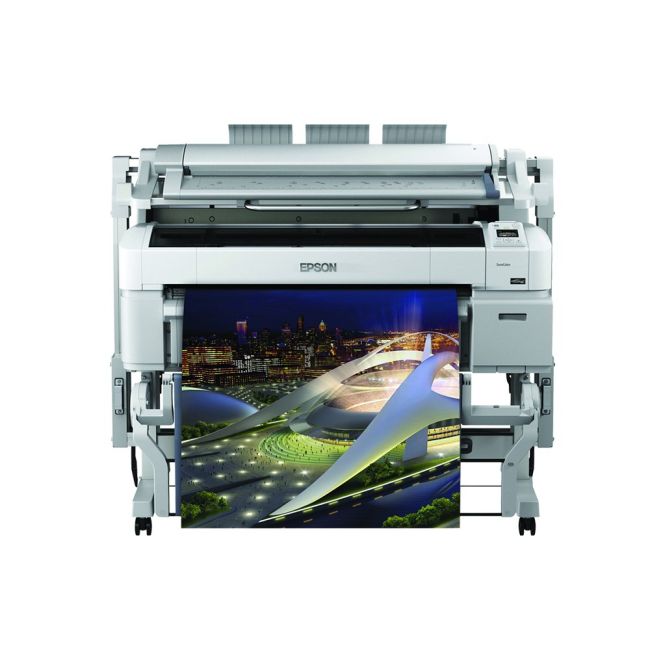

Epson SureColor SC-T5200 36-inch Large Format Printer

Epson SureColor SC-T5200 36" / A0 Large Format Printer - DISCONTINUED

Part No: C11CD67301A0

36" large format inkjet printer
A1 print in 28 seconds
2880 x 1440 dpi (dots oer inch)
1 GB memory
USB 2.0 & network
Manual two-sided printing

The Epson SureColor SC-T5200 is now discontinued and has been replaced by the Epson SureColor SC-T5405.

Product Spec

Memory:: 1 GB
Disc Printing:: No
Dimensions W x D x H:: 1775 x 816 x 1034mm
Weight (Kg):: 84
Display Screen:: 6.3cm LCD Display
Emulation:: HP-GL2, RTL, Adobe Postscript
Borderless Printing:: Yes
Duplex Scan:: No
Barcode Printing:: No
Functions:: Print Only
GTIN:: 08715946543284
BarCode:: 8715946543284
Mono or Colour:: Colour
Double Sided:: Print
Compatibility:: Mac, Windows
Connectivity:: Network, USB
Printer Type:: Inkjet
Max Paper Size:: A1
Print DPI:: 2880 x 1440
Manufacturer:: Epson
First Page Out (Seconds):: 28

Product Description

If you work in a demanding graphics, CAD or GIS production environment, then look no further than the Epson SureColor SC-T5200.

Manufacturer's Description

Manufacturer Description

slide {0} of {1}, zoom in, SureColor SC-T5200

Technology
Printing Method	PrecisionCore^™ TFP print head
Ink Technology	Ultrachrome^® XD
Print
Colours	Photo Black [Pigment], Matte Black [Pigment], Cyan [Pigment], Yellow [Pigment], Magenta [Pigment]
Colours Capacity	Photo Black [110ml, 350ml, 700ml], Matte Black [110ml, 350ml, 700ml], Cyan [110ml, 350ml, 700ml], Yellow [110ml, 350ml, 700ml], Magenta [110ml, 350ml, 700ml]
Minimum Droplet Size	3.5 pl, With Variable-Sized Droplet Technology
Minimum line width	0.02 mm
Line accuracy	+/-0.26
Print from	PC, MAC
Nozzle Configuration	720 Nozzles Black, 720 Nozzles per Color
Printing Resolution	2,880 x 1,440 DPI
Paper / Media Handling
Paper Formats	A1, A2 (42.0x59.4cm), A3+, A3 (29.7x42.0 cm), A4 (21.0x29.7 cm), B2 (51.4x72.8 cm), B3, B4, A0, 17", 24", 36"
Print Margins Sheet Media	Mode 1: 3 mm (top), 3 mm (right), 14 mm (bottom), 3 mm (left)
Compatible Paper Thickness	0.08 mm - 1.5 mm
Duplex	No
Borderless printing on	10 inches, 11.81 inches, 12.95 inches, 15.98 inches, 17.01 inches, 20.28 inches, 23.39 inches, 24.02 inches, 28.66 inches, 33.11 inches, 35.98 inches
General
Power consumption	60 Watt, 3 Watt (standby), 0.5 Watt (Power off)
Supply Voltage	AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions	1,405‎ x 813 x 1,128 mm (Width x Depth x Height)
Product weight	84 kg
Sound Power	Operation:6.8 B (A)
Noise Level	Operation (Roll):50 dB (A)
What's in the box	Driver and utilities, Individual Ink Cartridges, Maintenance box, Power cable, Setup guide, SureColor T-Series Printer, User manual (CD)
Optional extras	Wide Format Scanner, Hard Drive, Adobe Postscript 3 enablement unit (includes HDD), Attachment for Auto Take up reel unit, Document carrier sheet A0, Roll Adapter, Cover Plus warranty extensions, 36" Scanner stand
Other Features
Memory	Printer: 1 GB
Compatible Operating Systems	Linux, Mac OS 10.5.8 or later, Windows 10, Windows 7, Windows 7 x64, Windows 8 (32/64 bit), Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64
Emulations	HP-GL2, RTL, Adobe^® Postscript 3^® (optional), ESC/P-R
Features	Direct scan-to-print without PC
Scanner not included with delivery	Yes
Interfaces	USB 2.0, Hi-Speed USB - compatible with USB 2.0 specification, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T)
Security	IEE 802, HTTPs
Media Handling	Auto cutter, Borderless Print, Fine Art, Roll Paper, Thick Media Support
Other
Warranty	12 months On-site service
LCD and Memory Cards
Panel	Type: Color, Diagonal:6.8 cm
Scan
Optional	(optional)
Maximum Precision	OR +/-0.1 % of vector length (whichever is greater)
Supported models	Epson WorkForce DS-6500, Epson WorkForce DS-60000
Scanner type	Contact image sensor (CIS)
Light Source	RGB LED
Media width	38" (153mm to 965.2mm)
Scan width	36" (153mm to 914.4mm)
Optical Resolution	600 DPI (Horizontal x Vertical)
Scanning Speed	13.3 inch/sec ( Monochrome, 200 dpi; 6 inch/sec ( Colour, 200 dpi;

Brochure

SureColor SC-T5200

A highly productive 36-inch printer that combines performance, quality and value to save you time and money

The SureColor SC-T5200 maximises performance in busy graphics, CAD and GIS production environments. Powerful image processing and a fast print speed meet the market's need for maximum productivity and flexibility. Epson's PrecisionCore TFP printheads do not need replacing and, together with UltraChrome XD ink, deliver the highest level of performance, value and versatile media support.

Legal Statement
Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Fast processing

High-speed printing of Graphics, CAD and GIS applications

Large-capacity ink cartridges

A choice of 110, 350 and 700 ml sizes mean a low TCO

PrecisionCore TFP printhead

Permanent printheads for duration of printer lifetime

UltraChrome XD inks

Produce quality, vibrant, smudge- and water-resistant images

PostScript support with 2x1.6GHz CPUs

Print multiple formats, including data-rich files, quickly and directly

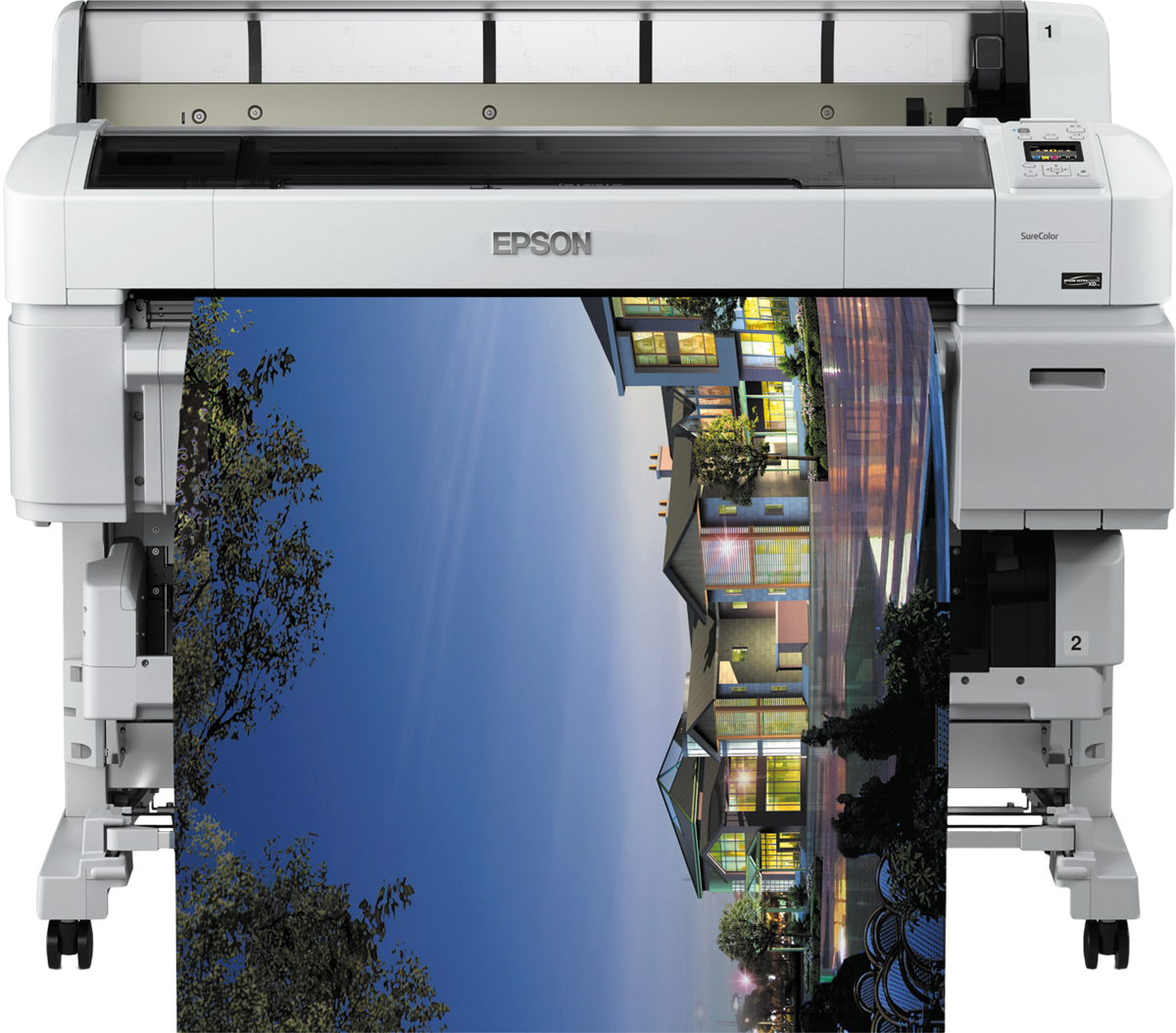

slide 1 of 6, show larger image, surecolor sc-t5200

slide 1 of 6, zoom in, surecolor sc-t5200

slide 2 of 6, zoom in, surecolor sc-t5200

slide 3 of 6, zoom in, surecolor sc-t5200

slide 4 of 6, zoom in, surecolor sc-t5200

slide 5 of 6, zoom in, surecolor sc-t5200

slide 6 of 6, zoom in, surecolor sc-t5200

Ideal for graphics, CAD and GIS

The SureColor SC-T5200 is one of the SureColor SC-T series of high-speed, four-colour large-format printers, designed to produce a wide range of high-quality graphics, CAD and GIS applications in design, commercial print, copy shop, architecture, building, engineering, retail and education environments.

Highly productive

To maximise productivity, the SureColor SC-T5200 features 1GB of RAM for ultra-fast image processing, and an optional 320GB HDD for job caching and recall. Optional PostScript support with dual 1.6GHz CPUs enables printing of large data-rich files quickly and directly from leading design and CAD programs. And the SureColor SC-T5200 is fast — outputting an A1 print takes just 28 seconds.

High quality output

The combination of Epson’s PrecisionCore TFP printheads and UltraChrome XD pigment ink delivers industry-leading output quality and precise, repeatable performance. UltraChrome XD pigment ink is smudge and water resistant and delivers deep blacks and crisp, dense lines — ideal for technical graphics — and the vibrant colours necessary for high-quality prints and posters, on coated and non-coated media — including board up to 1.5mm thick.

Compact, quiet and easy to use

With its sleek styling, compact footprint, low noise levels and front operation, the SureColor SC-T5200 is designed to fit easily into an office environment.

Specifications

Technology
Printing Method	PrecisionCore^™ TFP print head
Ink Technology	Ultrachrome^® XD
Print
Colours	Photo Black [Pigment], Matte Black [Pigment], Cyan [Pigment], Yellow [Pigment], Magenta [Pigment]
Colours Capacity	Photo Black [110ml, 350ml, 700ml], Matte Black [110ml, 350ml, 700ml], Cyan [110ml, 350ml, 700ml], Yellow [110ml, 350ml, 700ml], Magenta [110ml, 350ml, 700ml]
Minimum Droplet Size	3.5 pl, With Variable-Sized Droplet Technology
Minimum line width	0.02 mm
Line accuracy	+/-0.26
Print from	PC, MAC
Nozzle Configuration	720 Nozzles Black, 720 Nozzles per Color
Printing Resolution	2,880 x 1,440 DPI
Paper / Media Handling
Paper Formats	A1, A2 (42.0x59.4cm), A3+, A3 (29.7x42.0 cm), A4 (21.0x29.7 cm), B2 (51.4x72.8 cm), B3, B4, A0, 17", 24", 36"
Print Margins Sheet Media	Mode 1: 3 mm (top), 3 mm (right), 14 mm (bottom), 3 mm (left)
Compatible Paper Thickness	0.08 mm - 1.5 mm
Duplex	No
Borderless printing on	10 inches, 11.81 inches, 12.95 inches, 15.98 inches, 17.01 inches, 20.28 inches, 23.39 inches, 24.02 inches, 28.66 inches, 33.11 inches, 35.98 inches
General
Power consumption	60 Watt, 3 Watt (standby), 0.5 Watt (Power off)
Supply Voltage	AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions	1,405‎ x 813 x 1,128 mm (Width x Depth x Height)
Product weight	84 kg
Sound Power	Operation:6.8 B (A)
Noise Level	Operation (Roll):50 dB (A)
What's in the box	Driver and utilities, Individual Ink Cartridges, Maintenance box, Power cable, Setup guide, SureColor T-Series Printer, User manual (CD)
Optional extras	Wide Format Scanner, Hard Drive, Adobe Postscript 3 enablement unit (includes HDD), Attachment for Auto Take up reel unit, Document carrier sheet A0, Roll Adapter, Cover Plus warranty extensions, 36" Scanner stand
Other Features
Memory	Printer: 1 GB
Compatible Operating Systems	Linux, Mac OS 10.5.8 or later, Windows 10, Windows 7, Windows 7 x64, Windows 8 (32/64 bit), Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64
Emulations	HP-GL2, RTL, Adobe^® Postscript 3^® (optional), ESC/P-R
Features	Direct scan-to-print without PC
Scanner not included with delivery	Yes
Interfaces	USB 2.0, Hi-Speed USB - compatible with USB 2.0 specification, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T)
Security	IEE 802, HTTPs
Media Handling	Auto cutter, Borderless Print, Fine Art, Roll Paper, Thick Media Support
Other
Warranty	12 months On-site service
LCD and Memory Cards
Panel	Type: Color, Diagonal:6.8 cm
Scan
Optional	(optional)
Maximum Precision	OR +/-0.1 % of vector length (whichever is greater)
Supported models	Epson WorkForce DS-6500, Epson WorkForce DS-60000
Scanner type	Contact image sensor (CIS)
Light Source	RGB LED
Media width	38" (153mm to 965.2mm)
Scan width	36" (153mm to 914.4mm)
Optical Resolution	600 DPI (Horizontal x Vertical)
Scanning Speed	13.3 inch/sec ( Monochrome, 200 dpi; 6 inch/sec ( Colour, 200 dpi;

What's in the Box

Documents

What's in the box

Individual Ink Cartridges
Setup Guide
User Manual (CD)
Drivers and Utilities (CD)
Power Cable
