Technology
|
Printing Method
|
PrecisionCore™ TFP print head
|
Ink Technology
|
UltraChrome® HDX
|
Print
|
Colours
|
Light Black, Light Light Black, Photo Black, Matte Black, Cyan, Light Cyan, Yellow, Vivid Magenta, Vivid Light Magenta, Orange, Green
|
Minimum Droplet Size
|
3.5 pl
|
Ink tank capacity
|
700 ml
|
Nozzle Configuration
|
360 Nozzles Black, 360 Nozzles per Color
|
Printing Resolution
|
2,880 x 1,440 DPI
|
Paper / Media Handling
|
Paper Formats
|
A0, A1, A2 (42.0x59.4cm), A3+, A3 (29.7x42.0 cm), A4 (21.0x29.7 cm), B1 (72.8x102.8 cm), B2 (51.4x72.8 cm), B3, B4, 17", 24", 44", User defined, B0
|
Print Margins Sheet Media
|
Mode 1: 3 mm (top), 3 mm (right), 14 mm (bottom), 3 mm (left)
|
Compatible Paper Thickness
|
0.08 mm - 1.5 mm
|
Duplex
|
No
|
Borderless printing on
|
10 inches, 11.81 inches, 12.95 inches, 15.98 inches, 17.01 inches, 20.28 inches, 23.39 inches, 24.02 inches, 35.98 inches, 44.02 inches
|
General
|
Power consumption
|
75 Watt, 19 Watt (economy), 2 Watt (standby), 0.5 Watt (Power off)
|
Supply Voltage
|
AC 100 V - 240 V, 50 Hz - 60 Hz
|

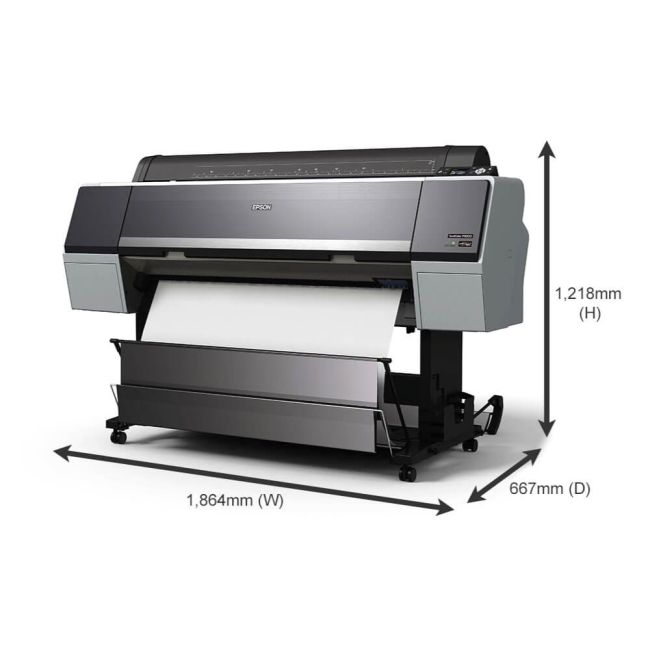

Product dimensions
|
1,864 x 667 x 1,218 mm (Width x Depth x Height)
|
Product weight
|
195 kg
|
Sound Power
|
Operation:6.5 B (A)
|
Noise Level
|
Operation (Roll):47 dB (A)
|
What's in the box
|
Driver and utilities, Individual Ink Cartridges, Main unit, Power cable, Setup guide, Software (CD), User manual (CD)
|
Other Features
|
Memory
|
Printer: 1 GB
|
Compatible Operating Systems
|
Linux, Mac OS 10.9.x, Mac OS X 10.11.x, Mac OS X 10.12, Mac OS X 10.12.x, Windows 10, Windows 2000, Windows 7, Windows 7 x64, Windows 8 (32/64 bit), Windows 8.1, Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64
|
Emulations
|
ESC/P-R
|
Interfaces
|
Ethernet interface (100 Base-TX / 10 Base-T), USB 2.0-A, USB 2.0, Ethernet 1000
|
Media Handling
|
Fine Art, Roll Paper, Thick Media Support
|
Other
|
Warranty
|
12 months On-site service
|
LCD and Memory Cards
|
Panel
|
Type: Color, Diagonal:6.8 cm
|
