Epson LabelWorks LW-Z700FK Thermal Label Printer

Epson LabelWorks LW-Z900FK Thermal Label Printer - DISCONTINUED

Part No: C51CE51110

Thermal Label Printer
180 DPI Print Resolution
Tape Widths Between 4mm - 36mm
Up to 35mm Per Seconds Print Speed
USB Interface
3 Year Warranty

The Epson LabelWorks LW-Z900FK is now discontinued, for a direct replacement please call us on 0161 308 5800.

VIEW REPLACEMENT

Product Spec

Min Width:: 4mm
Disc Printing:: No
Dimensions W x D x H:: 136 x 298 x 90 mm
Weight (Kg):: 1.1
Display Screen:: 3 Line LCD Display
Max Width:: 36mm
Borderless Printing:: No
Duplex Scan:: No
Barcode Printing:: Yes
Cutter:: Automatic
Functions:: Print Only
GTIN:: 04058154303344
BarCode:: 4058154303344
Mono or Colour:: Mono
Compatibility:: Windows
Connectivity:: USB
Printer Type:: Thermal
Print DPI:: 180
Manufacturer:: Epson

Product Description

Automated and fast label printing, cost-saving options, and hands-free operation make the new industrial-grade LabelWorks LW-Z900FK a must-have for jobs in demanding environments. Ideally suited to installers, maintenance contractors, builders and plumbers, it's ideal for rapidly and efficiently labelling electrics including audio/video cables, data communications equipment, as well as pipes and machinery.

A unique Pick & Print function enables the LW-Z900FK to print the next label in a pre-set series when it detects that a user has 'picked' the previous label, even with mixed label lengths. This is combined with automatic full and half cutting. That's the perfect time-saver for repetitive jobs, as is its ability to save up to 100 different label patterns. Hands-free operation is made possible by an automatic cutter that cuts full or half-size labels, and magnets that can be used to hold the printer onto steel surfaces. Text entry is made easier by a central keyboard – alternatively a PC keyboard can be used with Epson’s Label Editor software.

Warranty: 3 Year Carry-in Manufactures Warranty

Manufacturer's Description

Manufacturer Description

slide {0} of {1}, zoom in, LabelWorks LW-Z900FK (QWERTY)

What's in the box
What's in the box	1 x 4m Tape, AC adapter, AC cable, Battery (OT-BY20), Carrying Case, Magnetic attachment, Main unit, USB cable, User manual, Warranty document
Printing
Printing technology	Thermal transfer
Tape width	4 mm, 6 mm, 9 mm, 12 mm, 18 mm, 24 mm, 36 mm
Printing resolution	360 DPI
Printable Dot Numbers	384 dot numbers
Print height	27 mm
Print speed	35 mm/sec
Number of printable lines	13 Lines custom
Maximum text length	180 characters per line custom
Multi-block	50 custom
Drop Stop	Yes
Pick & Print	Yes
Print settings
Special formats	General, Punch Block, Patch Panel, Block-66, Wrap, Flag, Face Plate, Mix-Length
Repeat printing	2 - 99 1 - 999 Unlimited
Auto increment	Yes, 0-9, a-z, A-Z, Up to 4 digits Yes, 0-9, a-z, A-Z, Alphabetic, Numerical, Date, Time
Enlargement printing	Yes
Mirror printing	Yes
Vertical printing	Yes
Barcodes	Code 128, Code 39, EAN-13, EAN-8, ITF, Dimensional code, UPC-A, UPC-E Coda bar (NW-7), Code 128, Code 39, Data Matrix, EAN-128, EAN-13, EAN-8, GS1-128, GS1-DataBar, ITF, MaxiCode, PDF417, Dimensional code, UPC-A, UPC-E
Wire wrap	Yes
Flag	Yes
Margin setting	1mm, 4mm, 10mm, 18mm, width/3, width
Margin setting - Label Editor	1mm, Manual, Auto
Fixed Length	Yes / 10 mm - 999 mm Yes
Setting Area	Custom
Fonts & Styles
Fonts	Roman, Sans serif Depending on user's PC
Frames	79 Frames
Tables	10 Tables
Style	Bold, Bold & Italic, Bold & Italic & Outline, Bold & Italic & Shadow, Bold & Outline, Bold & Shadow, Italic, Italic & Outline, Italic & Shadow, Normal, Outline, Reverse video, Shadow, Shadow & Outline, Shadow & Outline & Italic Bold, Bold & Italic, Bold & Italic & Outline, Bold & Italic & Shadow, Bold & Outline, Bold & Shadow, Double line strikethrough, Italic, Italic & Outline, Italic & Shadow, Normal, Outline, Reverse video, Shadow, Shadow & Outline, Shadow & Outline & Italic, Strikethrough, Underline
Layout Alignment	Left, Right, Center, Justified Left, Right, Center, Manual, Justified
Character spacing	Narrow, Wide, Normal custom
Character width	Narrow, Normal, Small, Wide custom
Memory
Memory accent	179
Accent learning	Yes
Symbols	859 1,427
Memory file (saved labels)	100 Depending on user's PC
Last label	Yes View history, Browse
Hardware
Cutter	Auto, Half
Detection	Cover open, Tape end, Tape type & colours, Tape width
Handle	Yes
Strap hole	No
Power lamp	Yes
Half cut lamp	No
Feed button	Yes
Keyboard
Keyboard type	QWERTY
Display
Display Resolution	140‎ x 80 dots
Display backlight	Yes( with control)
Display preview	Yes
Display language	Danish, Dutch, English, Finnish, German, Italian, Norwegian, Portuguese, Spanish, Swedish, Turkish, French
Other functions
Auto power off	Yes
Unit switch	mm/inch
Clock	No
General
Batteries	6 x AA. Rechargeable batteries accepted
Battery	Li-ion
Low battery indicator	Yes
Product dimensions	136‎ x 295 x 97 mm (Width x Depth x Height)
Product weight	1,250 g, without tape & batteries
Colour	Black, Red
Other
Warranty	36 months Carry in
Connectivity
Interfaces	USB 2.0, USB 1.0
Compatible Operating Systems	Windows 10 (32/64 bit), Windows 8, Windows 8.1
System requirements	Approx.100 MB HDD space
PC Display requirements	XGA (1024 x 768) or higher
Included Software	Epson Label Editor

Brochure

LabelWorks LW-Z900FK (QWERTY)

Durable industrial label printer designed to boost productivity in demanding environments.

Automated and fast label printing, cost-saving options, and hands-free operation make the new industrial-grade LabelWorks LW-Z900FK a must-have for jobs in demanding environments. Ideally suited to installers, maintenance contractors, builders and plumbers, it's ideal for rapidly and efficiently labelling electrics including audio/video cables, data communications equipment, as well as pipes and machinery.

Ideal for demanding environments

Rugged and durable design

Verstatile printing

7 tape widths from 4 to 36mm, on a range of tape types, including die-cut

New Pick & Print function

Prints the next label in a series when you have 'picked' the one before

Quality text

Clear, fast and concise 360dpi resolution labels

Label Editor Software included

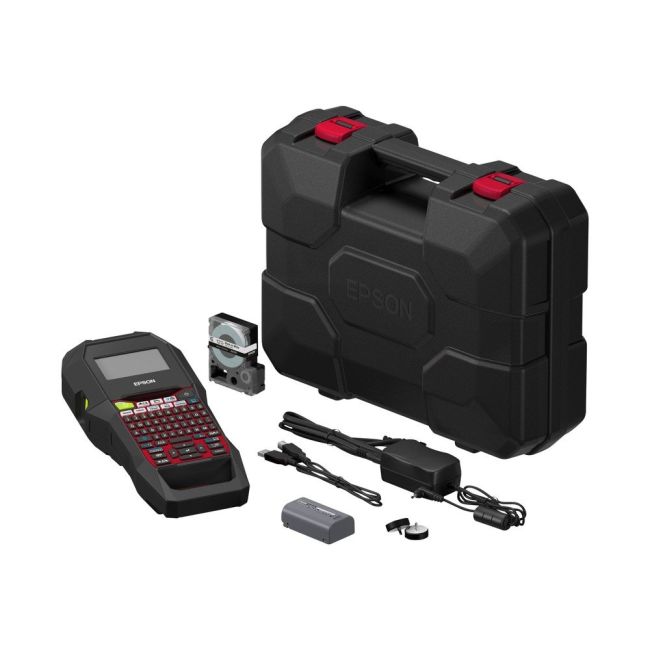

With hard case, Li-Ion battery pack, AC Adaptor, magnets & 4m test tape

slide 1 of 9, show larger image, labelworks lw-z900fk (qwerty)

slide 1 of 9, zoom in, labelworks lw-z900fk (qwerty)

slide 2 of 9, zoom in, labelworks lw-z900fk (qwerty)

slide 3 of 9, zoom in, labelworks lw-z900fk (qwerty)

slide 4 of 9, zoom in, labelworks lw-z900fk (qwerty)

slide 5 of 9, zoom in, labelworks lw-z900fk (qwerty)

slide 6 of 9, zoom in, labelworks lw-z900fk (qwerty)

High productivity

Cost efficient

Though the tapes it uses are affordable, it minimises their use, offering label margins as small as 1mm to save money. Long tapes (up to 9m) mean you get even more labels, ensuring that your TCO is kept low.

Durable design for hardworking environments

Its built-in carry handle and protective casing ensure that it’s at home in demanding industrial environments. as does its strong, rugged design and magnetic attachments for hands-free use.

Versatile

The LW-Z900FK can use up to seven different tape widths - from 4 to 36mm - and three different shapes of die-cut labels. Label types include market standards and specific ones, such as heat shrink tubes, magnetic, heat-resistant, glow in the dark and reflective.

Efficient industrial printing

Create and print your labels in seconds

Durability and reliability

Work safe thanks to a rugged design that won't let you down

Low TCO

Keep costs and downtime to a minimum

Clear medical identification

Clearly identify information, samples and containers to ensure a smooth flow of information

Specifications

What's in the box
What's in the box	1 x 4m Tape, AC adapter, AC cable, Battery (OT-BY20), Carrying Case, Magnetic attachment, Main unit, USB cable, User manual, Warranty document
Printing
Printing technology	Thermal transfer
Tape width	4 mm, 6 mm, 9 mm, 12 mm, 18 mm, 24 mm, 36 mm
Printing resolution	360 DPI
Printable Dot Numbers	384 dot numbers
Print height	27 mm
Print speed	35 mm/sec
Number of printable lines	13 Lines custom
Maximum text length	180 characters per line custom
Multi-block	50 custom
Drop Stop	Yes
Pick & Print	Yes
Print settings
Special formats	General, Punch Block, Patch Panel, Block-66, Wrap, Flag, Face Plate, Mix-Length
Repeat printing	2 - 99 1 - 999 Unlimited
Auto increment	Yes, 0-9, a-z, A-Z, Up to 4 digits Yes, 0-9, a-z, A-Z, Alphabetic, Numerical, Date, Time
Enlargement printing	Yes
Mirror printing	Yes
Vertical printing	Yes
Barcodes	Code 128, Code 39, EAN-13, EAN-8, ITF, Dimensional code, UPC-A, UPC-E Coda bar (NW-7), Code 128, Code 39, Data Matrix, EAN-128, EAN-13, EAN-8, GS1-128, GS1-DataBar, ITF, MaxiCode, PDF417, Dimensional code, UPC-A, UPC-E
Wire wrap	Yes
Flag	Yes
Margin setting	1mm, 4mm, 10mm, 18mm, width/3, width
Margin setting - Label Editor	1mm, Manual, Auto
Fixed Length	Yes / 10 mm - 999 mm Yes
Setting Area	Custom
Fonts & Styles
Fonts	Roman, Sans serif Depending on user's PC
Frames	79 Frames
Tables	10 Tables
Style	Bold, Bold & Italic, Bold & Italic & Outline, Bold & Italic & Shadow, Bold & Outline, Bold & Shadow, Italic, Italic & Outline, Italic & Shadow, Normal, Outline, Reverse video, Shadow, Shadow & Outline, Shadow & Outline & Italic Bold, Bold & Italic, Bold & Italic & Outline, Bold & Italic & Shadow, Bold & Outline, Bold & Shadow, Double line strikethrough, Italic, Italic & Outline, Italic & Shadow, Normal, Outline, Reverse video, Shadow, Shadow & Outline, Shadow & Outline & Italic, Strikethrough, Underline
Layout Alignment	Left, Right, Center, Justified Left, Right, Center, Manual, Justified
Character spacing	Narrow, Wide, Normal custom
Character width	Narrow, Normal, Small, Wide custom
Memory
Memory accent	179
Accent learning	Yes
Symbols	859 1,427
Memory file (saved labels)	100 Depending on user's PC
Last label	Yes View history, Browse
Hardware
Cutter	Auto, Half
Detection	Cover open, Tape end, Tape type & colours, Tape width
Handle	Yes
Strap hole	No
Power lamp	Yes
Half cut lamp	No
Feed button	Yes
Keyboard
Keyboard type	QWERTY
Display
Display Resolution	140‎ x 80 dots
Display backlight	Yes( with control)
Display preview	Yes
Display language	Danish, Dutch, English, Finnish, German, Italian, Norwegian, Portuguese, Spanish, Swedish, Turkish, French
Other functions
Auto power off	Yes
Unit switch	mm/inch
Clock	No
General
Batteries	6 x AA. Rechargeable batteries accepted
Battery	Li-ion
Low battery indicator	Yes
Product dimensions	136‎ x 295 x 97 mm (Width x Depth x Height)
Product weight	1,250 g, without tape & batteries
Colour	Black, Red
Other
Warranty	36 months Carry in
Connectivity
Interfaces	USB 2.0, USB 1.0
Compatible Operating Systems	Windows 10 (32/64 bit), Windows 8, Windows 8.1
System requirements	Approx.100 MB HDD space
PC Display requirements	XGA (1024 x 768) or higher
Included Software	Epson Label Editor

What's in the Box

Documents

What's in the box

Epson LabelWorks LW-Z900FK Printer
User Guide
USB Cable
Carry Case
Battery
1 x 4m Tape
Warranty Information
