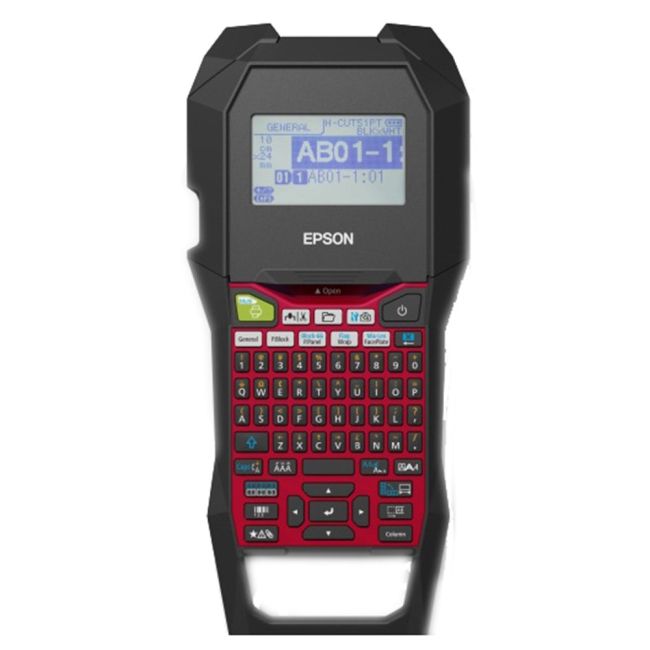

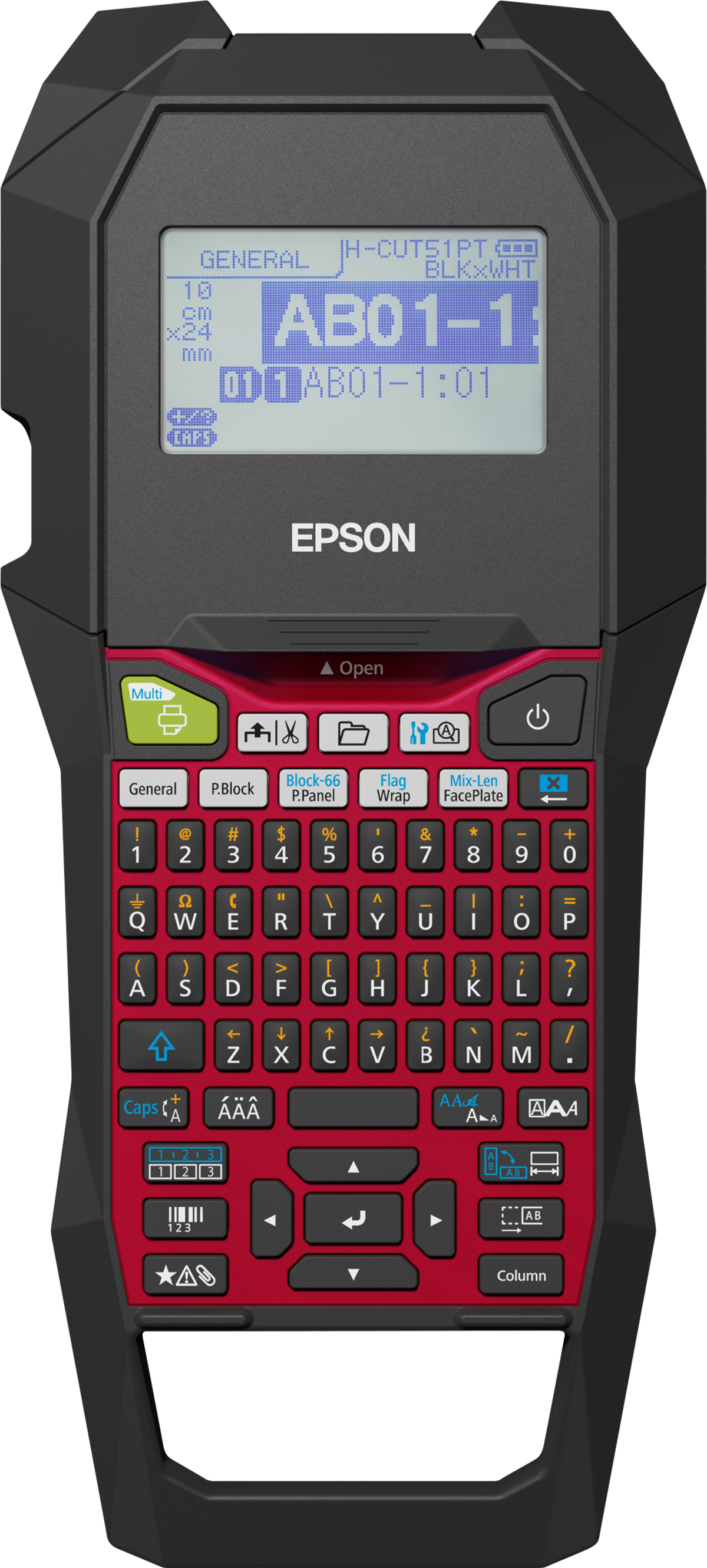

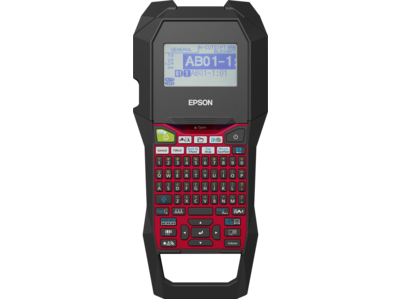

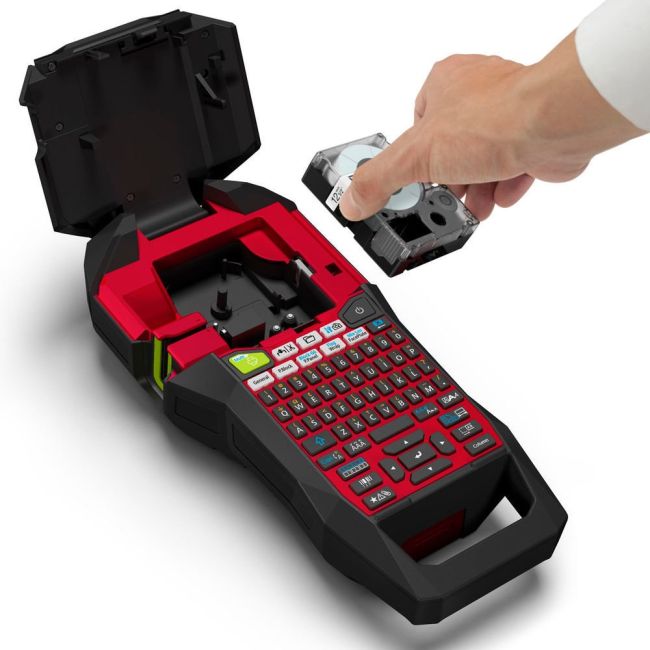

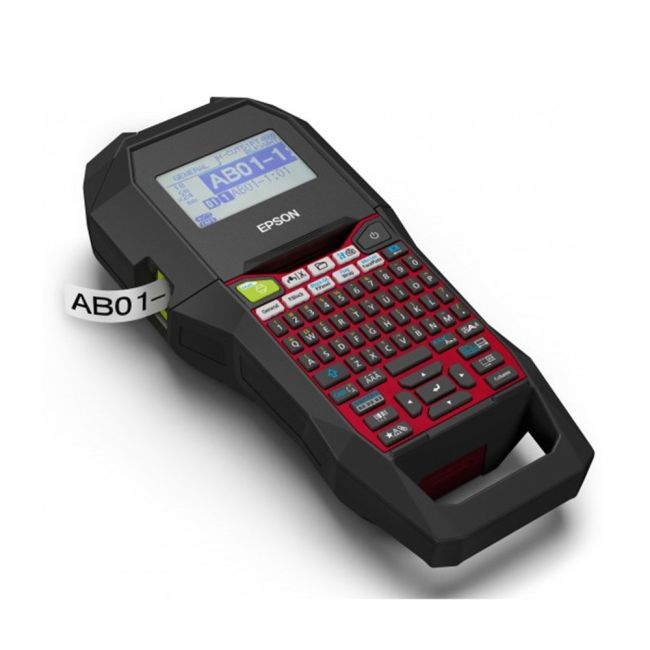

Epson LabelWorks LW-Z700FK Thermal Label Printer

Epson LabelWorks LW-Z700FK Thermal Label Printer - DISCONTINUED

Part No: C51CF25110

Thermal Label Printer
180 DPI Print Resolution
Tape Widths Between 4mm - 24mm
Up to 15mm Per Seconds Print Speed
USB Interface
3 Year Warranty

The Epson LabelWorks LW-Z700FK is now discontinued and has been replaced by the Epson LabelWorks LW-Z710.

VIEW REPLACEMENT

Product Spec

Min Width:: 4mm
Disc Printing:: No
Dimensions W x D x H:: 136 x 298 x 90 mm
Weight (Kg):: 1.1
Display Screen:: 3 Line LCD Display
Max Width:: 24mm
Borderless Printing:: No
Duplex Scan:: No
Barcode Printing:: Yes
Cutter:: Automatic
Functions:: Print Only
GTIN:: 08715946621401
BarCode:: 8715946621401
Mono or Colour:: Mono
Compatibility:: Windows
Connectivity:: USB
Printer Type:: Thermal
Print DPI:: 180
Manufacturer:: Epson

Product Description

Destined to become a valuable tool for installers of mechanical, electrical and network IT equipment is this sturdy, practical and cost-effective industrial label maker. Featuring hot keys, a mixed label length function and other hands-free features, label-making on the LW-Z700FK is all about boosting productivity with the latest features, but at a competitive price.

The LW-Z700FK offers six different widths from 4-24mm, and 100 label designs. Tapes are suited to all kinds of environments, with the addition of both magnetic and heat-shrink tape to a roster that already includes heat-resistant, glow in the dark, reflective and iron-on labels, among others.

Warranty: 3 Year Carry-in Manufactures Warranty

Manufacturer's Description

Manufacturer Description

slide {0} of {1}, zoom in, LabelWorks LW-Z700FK (QWERTY)

What's in the box
What's in the box	1 x 4m Tape, AC adapter, AC cable, Battery (OT-BY20), Carrying Case, Magnetic attachment, Main unit, UK AC cable, USB cable
Printing
Printing technology	Thermal transfer
Tape width	4 mm, 6 mm, 9 mm, 12 mm, 18 mm, 24 mm
Printing resolution	180 DPI
Printable Dot Numbers	128 dot numbers
Print speed	30 mm/sec
Number of printable lines	8 Lines custom
Maximum text length	180 characters per line custom
Multi-block	50 custom
Drop Stop	Yes
Pick & Print	Yes
Print settings
Special formats	General, Punch Block, Patch Panel, Block-66, Wrap, Flag, Face Plate, Mix-Length
Repeat printing	2 - 99 1 - 999
Auto increment	0-9, a-z, A-Z, Up to 4 digits Yes, 0-9, a-z, A-Z, Alphabetic, Numerical, Date, Time
Enlargement printing	Yes
Mirror printing	Yes
Vertical printing	Yes
Barcodes	Coda bar (NW-7), Code 128, Code 39, EAN-13, EAN-8, ITF, POSTNET, UPC-A, UPC-E Coda bar (NW-7), Code 128, Code 39, Data Matrix, EAN-128, EAN-13, EAN-8, GS1-128, GS1-DataBar, ITF, MaxiCode, PDF417, Dimensional code, UPC-A, UPC-E
Wire wrap	Yes
Flag	Yes
Margin setting	1mm, 3mm, 4mm, 10mm, width/3, width
Margin setting - Label Editor	1mm, Manual, Auto
Fonts & Styles
Fonts	Roman, Sans serif Depending on user's PC
Frames	98 Frames
Tables	3 Tables
Layout Alignment	Left, Right, Center, Justified Left, Right, Center, Manual
Character spacing	Narrow, Wide, Normal
Character width	Narrow, Normal, Custom, Smaller, Small, Wide
Memory
Memory alphanumeric	Depending on user's PC
Memory accent	Depending on user's PC
Accent learning	Yes
Symbols	530 1,427
Memory file (saved labels)	100 Depending on user's PC / 372 templates available
Last label	Yes View history, Browse
Hardware
Cutter	Auto, Half
Detection	Cover open, Tape end, Tape type & colours, Tape width
Handle	Yes
Power lamp	Yes
Feed button	Yes
Keyboard
Keyboard type	QWERTY
Number of keys	66
Display
Display Resolution	140‎ x 80 dots
Display backlight	Yes( with control)
Display preview	Yes Graphic
Display language	Danish, Dutch, English, Finnish, French, German, Italian, Portuguese
Other functions
Auto power off	Yes
Unit switch	mm/inch
Clock	No
General
Batteries	6 x AAA
Battery	Li-ion
Low battery indicator	Yes
Product dimensions	136‎ x 298 x 90 mm (Width x Depth x Height)
Product weight	1,100 g, without tape & batteries
Colour	Black, Red
Other
Warranty	36 months Carry in
Connectivity
Interfaces	USB 1.0-A, USB 1.0
Compatible Operating Systems	Windows 10, Windows 10 (32/64 bit), Windows 7, Windows 8.1
System requirements	Approx.100 MB HDD space
PC Display requirements	XGA (1024 x 768) or higher
Included Software	Epson Label Editor

Brochure

LabelWorks LW-Z700FK (QWERTY)

Pick & Print

Streamline repetitive tasks

Fast 180dpi print

Professional-looking results

Practical design

Hard case, carry handle and magnet for easy mounting

Print logos and images

Data download function with easy-to-use software

Plenty of choice

50 lengths, six widths & 100 label designs

slide 1 of 5, show larger image, labelworks lw-z700fk (qwerty)

slide 1 of 5, zoom in, labelworks lw-z700fk (qwerty)

slide 2 of 5, zoom in, labelworks lw-z700fk (qwerty)

slide 3 of 5, zoom in, labelworks lw-z700fk (qwerty)

slide 4 of 5, zoom in, labelworks lw-z700fk (qwerty)

slide 5 of 5, zoom in, labelworks lw-z700fk (qwerty)

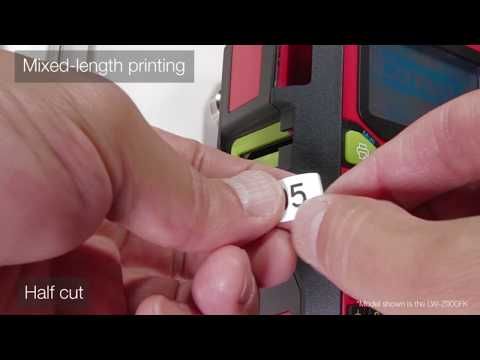

Hands-free design

The LW-Z700FK is all about working quickly and efficiently, with an automatic cutter (full and half), Pick & Print and Drop Stop functions, and magnet attachment. Meanwhile, a longer lasting Li-on battery pack means you can go on working for longer between recharges.

Pick & Print

Like a trusted colleague, the LW-Z700FK knows what you are going to do next. Incredibly useful for streamlining repetitive jobs, its Pick & Print function automatically prints the next label in a pre-set series when it detects that the user has selected the previous label.

Durable and affordable

The LW-Z700FK is designed to handle any scenario, from factories and server rooms to construction sites and other challenging environments. It ships with a hard carry case for protection, while a large carry handle makes it mobile and magnets allow for easy mounting.

Customise your labels

Sometimes you need a professional touch. As well as fast printing in 180dpi quality to ensure readability, the LW-Z700FK offers image download. The bundled and easy-to-use Epson Label Editor software makes it quick and simple to transfer an image of a company logo to the LW-Z700FK for use on cable labels.

Plenty of choice

The LW-Z700FK lets you decide what you need, when you need it. It offers six different widths from 4-24 mm, and 100 label designs. Tapes are suited to all kinds of environments, with the addition of both magnetic and heat-shrink tape to a roster that already includes heat-resistant, glow in the dark, reflective and iron-on labels, among others.

Low total cost of ownership

As well as being competitively priced itself, the LW-Z700FK offers great value consumables, with extra-long tapes stretching to 9m for maximum economies of scale. Label margins can now be reduced to just 1mm, saving even more money.

Clear medical identification

Clearly identify information, samples and containers to ensure a smooth flow of information

Specifications

What's in the box
What's in the box	1 x 4m Tape, AC adapter, AC cable, Battery (OT-BY20), Carrying Case, Magnetic attachment, Main unit, UK AC cable, USB cable
Printing
Printing technology	Thermal transfer
Tape width	4 mm, 6 mm, 9 mm, 12 mm, 18 mm, 24 mm
Printing resolution	180 DPI
Printable Dot Numbers	128 dot numbers
Print speed	30 mm/sec
Number of printable lines	8 Lines custom
Maximum text length	180 characters per line custom
Multi-block	50 custom
Drop Stop	Yes
Pick & Print	Yes
Print settings
Special formats	General, Punch Block, Patch Panel, Block-66, Wrap, Flag, Face Plate, Mix-Length
Repeat printing	2 - 99 1 - 999
Auto increment	0-9, a-z, A-Z, Up to 4 digits Yes, 0-9, a-z, A-Z, Alphabetic, Numerical, Date, Time
Enlargement printing	Yes
Mirror printing	Yes
Vertical printing	Yes
Barcodes	Coda bar (NW-7), Code 128, Code 39, EAN-13, EAN-8, ITF, POSTNET, UPC-A, UPC-E Coda bar (NW-7), Code 128, Code 39, Data Matrix, EAN-128, EAN-13, EAN-8, GS1-128, GS1-DataBar, ITF, MaxiCode, PDF417, Dimensional code, UPC-A, UPC-E
Wire wrap	Yes
Flag	Yes
Margin setting	1mm, 3mm, 4mm, 10mm, width/3, width
Margin setting - Label Editor	1mm, Manual, Auto
Fonts & Styles
Fonts	Roman, Sans serif Depending on user's PC
Frames	98 Frames
Tables	3 Tables
Layout Alignment	Left, Right, Center, Justified Left, Right, Center, Manual
Character spacing	Narrow, Wide, Normal
Character width	Narrow, Normal, Custom, Smaller, Small, Wide
Memory
Memory alphanumeric	Depending on user's PC
Memory accent	Depending on user's PC
Accent learning	Yes
Symbols	530 1,427
Memory file (saved labels)	100 Depending on user's PC / 372 templates available
Last label	Yes View history, Browse
Hardware
Cutter	Auto, Half
Detection	Cover open, Tape end, Tape type & colours, Tape width
Handle	Yes
Power lamp	Yes
Feed button	Yes
Keyboard
Keyboard type	QWERTY
Number of keys	66
Display
Display Resolution	140‎ x 80 dots
Display backlight	Yes( with control)
Display preview	Yes Graphic
Display language	Danish, Dutch, English, Finnish, French, German, Italian, Portuguese
Other functions
Auto power off	Yes
Unit switch	mm/inch
Clock	No
General
Batteries	6 x AAA
Battery	Li-ion
Low battery indicator	Yes
Product dimensions	136‎ x 298 x 90 mm (Width x Depth x Height)
Product weight	1,100 g, without tape & batteries
Colour	Black, Red
Other
Warranty	36 months Carry in
Connectivity
Interfaces	USB 1.0-A, USB 1.0
Compatible Operating Systems	Windows 10, Windows 10 (32/64 bit), Windows 7, Windows 8.1
System requirements	Approx.100 MB HDD space
PC Display requirements	XGA (1024 x 768) or higher
Included Software	Epson Label Editor

What's in the Box

Documents

What's in the box

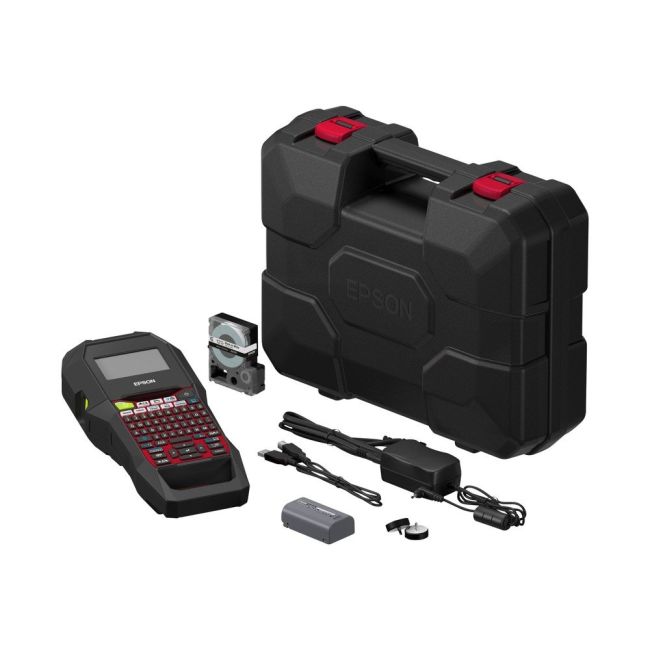

Epson LabelWorks LW-Z700FK Printer
User Guide
USB Cable
Carry Case
Battery
1 x 4m Tape
Warranty Information
