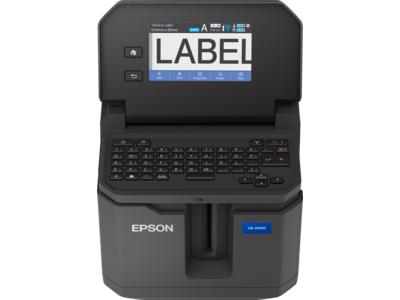

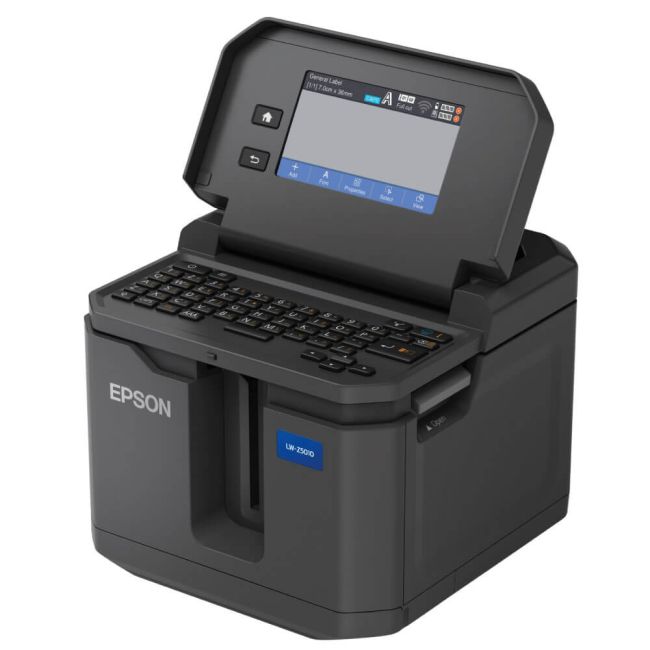

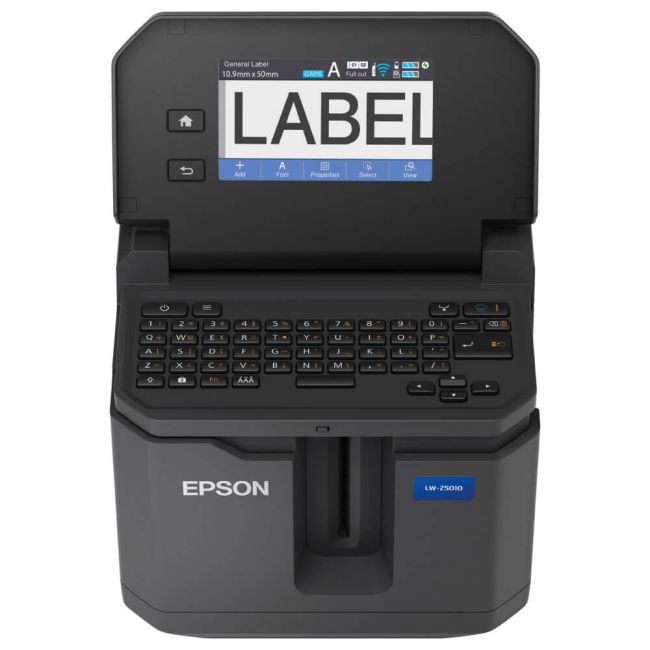

Epson LabelWorks LW-Z5010BE Thermal Label Printer - DISCONTINUED

Epson LabelWorks LW-Z5010BE Thermal Label Printer - DISCONTINUED

Part No: C51CG52200

360 x 360 DPI Print Resolution
50mm Per Second Print Speed
QWERTY Keyboard
USB, Network & Wireless Connection
Vertical Printing

The Epson LabelWorks LW-Z5010BE is now discontinued, for a direct replacement please call us on 0161 308 5800.

VIEW REPLACEMENT

Product Spec

Disc Printing:: No
Dimensions W x D x H:: 193x198x153mm
Display Screen:: 2-Line LCD Display
Borderless Printing:: No
Duplex Scan:: No
Barcode Printing:: No
Functions:: Print Only
GTIN:: 08715946678696
BarCode:: 8715946678696
Connectivity:: Network, USB, Wireless
Printer Type:: Thermal
Print DPI:: 360 x 360
Manufacturer:: Epson

Product Description

High-volume label maker All-in-one, industrial label maker for high print volume users who value time-saving functionality. This portable industrial label maker includes a built-in keyboard, colour touchscreen and Li-on battery. It's been developed for those working in data centres, maintenance, repair, overhaul (MRO), factories, warehouses, laboratories.construction, and electrical maintenance. It also boasts PC, smart device, and apps connectivity (USB, Ethernet, Wi-Fi, and Wi-Fi Direct). Versatile It supports a wide range of media (from 4mm to 50mm width labels), including cartridges and big rolls; and many material types including resistance, regulation and market standard compliancy. Flexible The applications are as varied as the media choices: cabling and wiring, audio and video identification, asset management, and safety and security signs. They’re designed to save you time when setting, editing, printing and handling. Time-saving application (editing phase), fast print speeds and big (media) roll support. The LW-Z5010BE's portability means you’re able to print high volumes on the move. Economical Designed with a low total cost of ownership (TCO) in mind. Big rolls allow running costs to be cut down dramatically. A clear ROI should be seen within a few months. Also, enhancements made to setting, editing, printing and handling are designed to positively effect the overall TCO.

Manufacturer's Description

Manufacturer Description

slide {0} of {1}, zoom in, LabelWorks LW-Z5010BE

What's in the box
What's in the box	1 x 4m Tape, Bulk Roll stand, Installation/safety manual, Main unit, Power cable, USB cable, Warranty Documents, Wi-Fi/network setup guide
Printing
Printing technology	Thermal transfer
Tape width	4 mm, 6 mm, 9 mm, 12 mm, 18 mm, 24 mm, 36 mm, 50 mm
Printing resolution	360 DPI
Printable Dot Numbers	616 dot numbers
Print height	52 mm
Print speed	50 mm/sec
Number of printable lines	custom
Maximum text length	custom
Multi-block	custom
Drop Stop	Yes
Pick & Print	Yes
Print settings
Special formats	General, Punch Block, Patch Panel, Block-66, Wrap, Flag, Face Plate, Mix-Length
Repeat printing	1 - 999
Auto increment	Yes, 0-9, a-z, A-Z, Alphabetic, Numerical, Date, Time
Enlargement printing	No
Mirror printing	Yes
Vertical printing	Yes
Barcodes	Code 128, Code 39, Data Matrix, EAN-128, EAN-13, EAN-8, GS1-128, GS1-DataBar, ITF, MaxiCode, PDF417, Dimensional code, UPC-A, UPC-E
Wire wrap	Yes
Flag	Yes
Margin setting - Label Editor	1mm, Fixed, Manual, Auto
Fixed Length	Yes
Setting Area	Custom
Fonts & Styles
Fonts	Depending on user's PC
Font Size	custom
Frames	86 Frames
Tables	8 Tables
Style	Bold, Bold & Italic, Bold & Italic & Outline, Bold & Italic & Shadow, Bold & Outline, Bold & Shadow, Double line strikethrough, Italic, Italic & Outline, Italic & Shadow, Normal, Outline, Reverse video, Shadow, Shadow & Outline, Shadow & Outline & Italic, Strikethrough, Underline
Layout Alignment	Left, Right, Center, Manual, Justified
Character spacing	custom
Character width	custom
Memory
Memory alphanumeric	Depending on user's PC
Accent learning	n/a
Symbols	466
Memory file (saved labels)	Depending on user's PC / 800 templates available
Last label	View history, Browse
Hardware
Cutter	Auto, Exchangeable, Half
Detection	Cover open, Die-Cut size, Material, Tape Cartridge in, Tape end, Tape type & colours, Tape width, Width
Handle	Yes
Strap hole	Yes
Power lamp	Yes
Half cut lamp	No
Feed button	Yes
Keyboard
Keyboard type	QWERTY
Number of keys	58
Display
Display Resolution	140‎ x 80 dots
Display backlight	Yes
Display preview	Yes Graphic
Size	4.3
Colour display	Full colour (WQVGA)
Touchscreen	Yes/Capacitive
Other functions
Auto power off	Yes
Software reset	Yes
Unit switch	mm/inch
Clock	Yes
General
Energy Use	29 Watt (Printing), 3.8 Watt (Ready), 0.23 Watt (Power off)
AC adapter	Yes
Battery	Li-ion
Low battery indicator	Yes
Product dimensions	193‎ x 198 x 153 mm (Width x Depth x Height)
Product weight	3,200 g, without tape & batteries
Colour	Black, Blue
Other
Warranty	36 months Carry in
Connectivity
Interfaces	Ethernet interface (100 Base-TX / 10 Base-T), WLAN, Wireless LAN IEEE 802.11b/g/n, Wi-Fi Direct, USB 2.0, USB 1.0-A (optional), USB 2.0-A (optional)
Compatible Operating Systems	Android 4.0+, Windows 10, Windows 10 (32/64 bit), iOS 6.0+
System requirements	Approx.100 MB HDD space
PC Display requirements	XGA (1024 x 768) or higher

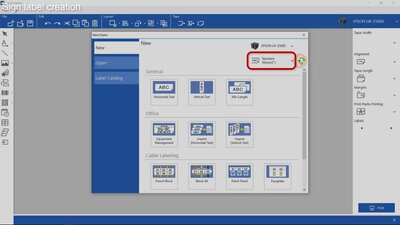

Included Software	Epson Label Editor

Brochure

LabelWorks LW-Z5010BE

Economical

Big rolls deliver low running costs

Versatile

Accepts all label widths (4mm - 50mm) and many material types.

Time-saving

Portable device means you’re able to print high volumes on the spot

Flexible

Supports a wide range of applications

Options

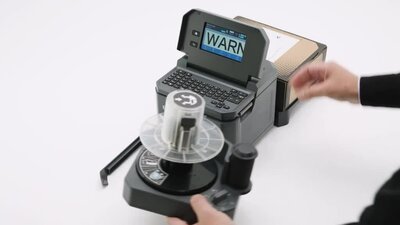

An automatic rewinder is available to save you time
