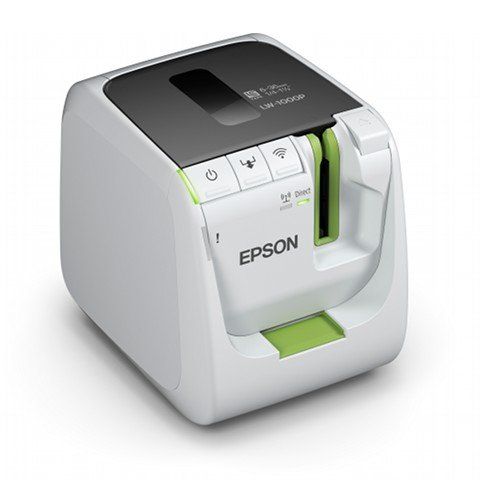

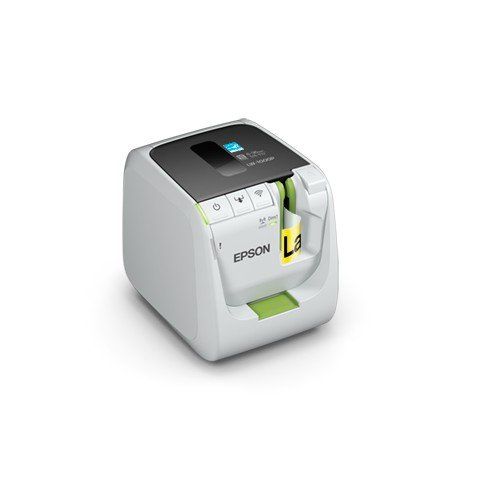

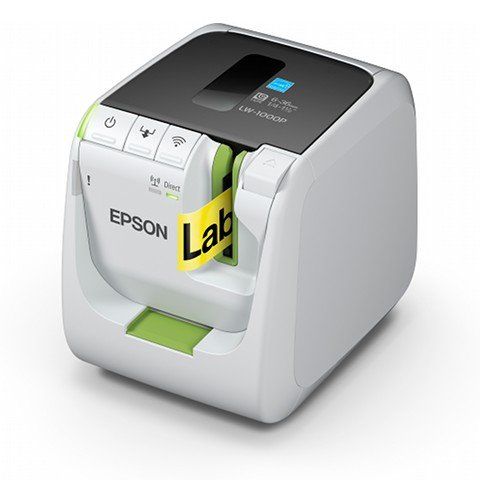

Epson LabelWorks LW-1000P Thermal Label Printer printing

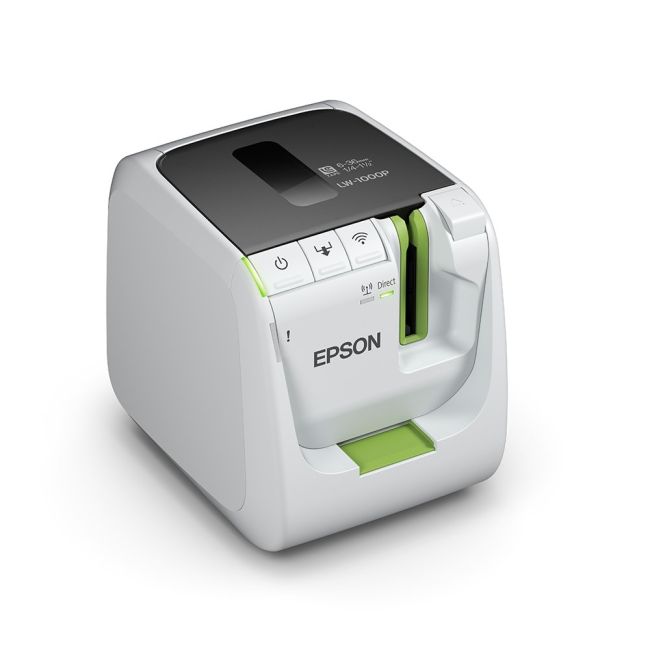

Epson LabelWorks LW-1000P Thermal Label Printer left view

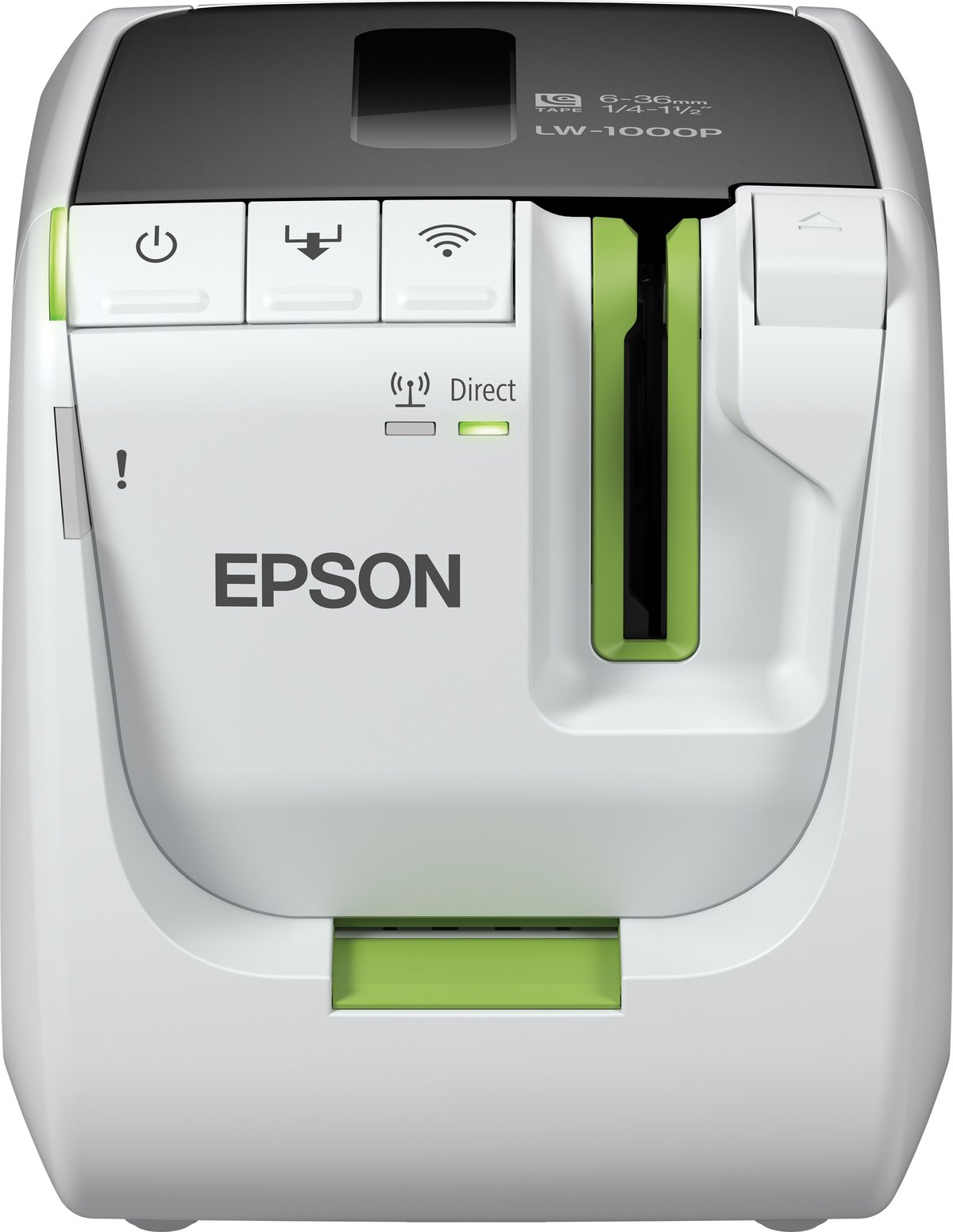

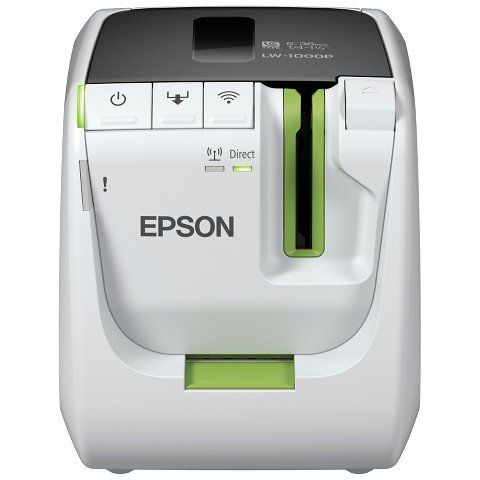

Epson LabelWorks LW-1000P Thermal Label Printer printing front view

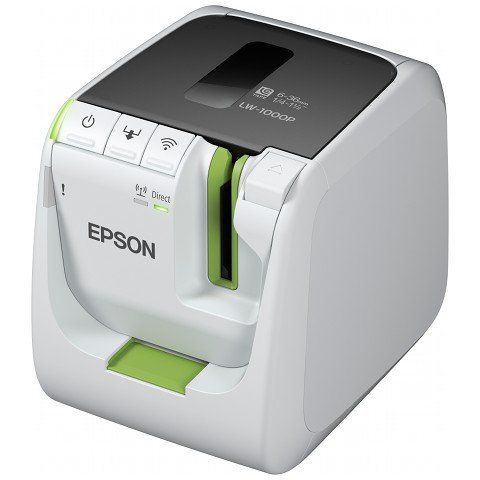

Epson LabelWorks LW-1000P Thermal Label Printer printing right view

Epson LabelWorks LW-1000P Thermal Label Printer printing left view

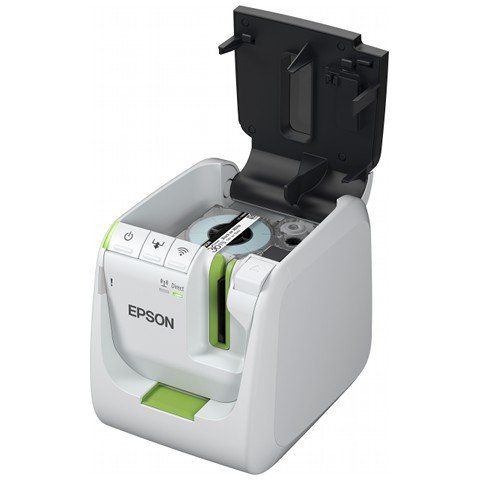

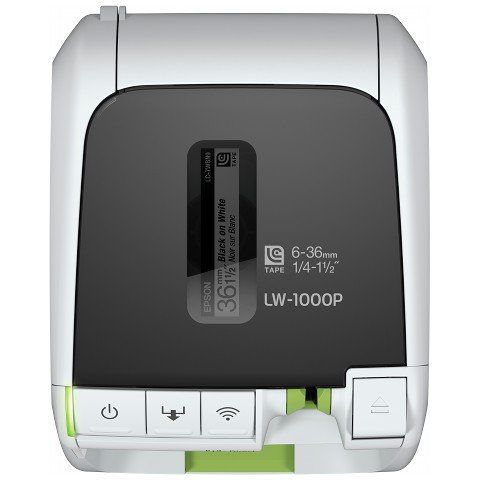

Epson LabelWorks LW-1000P Thermal Label Printer printing open top

Epson LabelWorks LW-1000P Thermal Label Printer - DISCONTINUED

Part No: C51CD06020

Thermal label printer
35mm per second print speed
360 dpi (dots per inch) resolution
6-36mm tape width
Automatic cutter
PC connectivity

The Epson LabelWorks LW-1000P is now discontinued and has been replaced by the Epson TM-m30II.

VIEW REPLACEMENT

Product Spec

Min Width:: 6mm
Disc Printing:: No
Dimensions W x D x H:: 123 x 153 x 139mm
Weight (Kg):: 1
Max Width:: 36mm
Borderless Printing:: No
Duplex Scan:: No
Barcode Printing:: Yes
Cutter:: Automatic
Functions:: Print Only
GTIN:: 08715946534145
BarCode:: 8715946534145
Mono or Colour:: Mono
Double Sided:: Print
Compatibility:: Mac, Windows
Connectivity:: Network, USB, Wireless
Printer Type:: Thermal
Print DPI:: 360
Manufacturer:: Epson

Product Description

The Epson LabelWorks LW-1000P is a wireless desktop label printer that enables you to print customised labels - virtually anywhere. Print labels from your smartphone, tablet using the Epson iLabel app or other compatible app. Label stock, shelving, cables or any other business equipment. Work cable-free around the business and share with office colleagues using Wi-Fi, via a router or device to device, and it even has its own Ethernet LAN slot for instant networking.

Manufacturer's Description

Manufacturer Description

slide {0} of {1}, zoom in, LabelWorks LW-1000P (UK Type AC adapter)

What's in the box
What's in the box	1 x 9m Trial Tape, CD Manual, Driver and utilities, Epson Label Editor (CD-ROM), Installation/safety manual, Main unit, Power cable, Supplies Catalogue, USB cable, User manual (CD), Warranty Documents, Wi-Fi/network setup guide
Printing
Printing technology	Thermal transfer
Tape width	6 mm, 9 mm, 12 mm, 18 mm, 24 mm, 36 mm
Printing resolution	360 DPI
Printable Dot Numbers	384 dot numbers
Print height	27 mm
Print speed	35 mm/sec
Number of printable lines	custom
Maximum text length	custom
Multi-block	custom
Print settings
Repeat printing	1 - 999
Auto increment	Yes, 0-9, a-z, A-Z, Alphabetic, Numerical, Date, Time
Enlargement printing	No
Mirror printing	Yes
Vertical printing	Yes
Barcodes	Code 128, Code 39, Data Matrix, EAN-128, EAN-13, EAN-8, GS1-128, GS1-DataBar, ITF, MaxiCode, PDF417, Dimensional code, UPC-A, UPC-E
Wire wrap	Yes
Flag	Yes
Margin setting - Label Editor	1mm, Fixed, Manual, Auto
Fixed Length	Yes
Setting Area	Custom
Fonts & Styles
Fonts	Depending on user's PC
Font Size	custom
Frames	86 Frames
Tables	8 Tables
Style	Bold, Bold & Italic, Bold & Italic & Outline, Bold & Italic & Shadow, Bold & Outline, Bold & Shadow, Double line strikethrough, Italic, Italic & Outline, Italic & Shadow, Normal, Outline, Reverse video, Shadow, Shadow & Outline, Shadow & Outline & Italic, Strikethrough, Underline
Layout Alignment	Left, Right, Center, Manual, Justified
Character spacing	custom
Character width	custom
Memory
Memory alphanumeric	Depending on user's PC
Accent learning	n/a
Symbols	466
Memory file (saved labels)	Depending on user's PC / 800 templates available
Last label	View history, Browse
Hardware
Cutter	Auto, Half, Trim
Detection	Cover open, Tape end, Tape width
Handle	No
Strap hole	Yes
Power lamp	Yes
Half cut lamp	No
Feed button	Yes
Other functions
Auto power off	Yes
Software reset	Yes
Unit switch	mm/inch
Clock	Yes
General
Energy Use	29 Watt (Printing), 3.8 Watt (Ready), 0.23 Watt (Power off)
Low battery indicator	Yes
Product dimensions	123‎ x 153 x 139 mm (Width x Depth x Height)
Product weight	1,050 g, without tape & batteries
Colour	Green, Pale Grey
Other
Warranty	36 months Carry in
Connectivity
Interfaces	Ethernet interface (100 Base-TX / 10 Base-T), WLAN, Wireless LAN IEEE 802.11b/g/n, Wi-Fi Direct, USB 2.0, USB 1.0-A (optional), USB 2.0-A (optional)
Compatible Operating Systems	Android 2.3+, Mac OS 10.6+, Windows 7, Windows 7 x64, Windows 8, Windows 8 (32/64 bit), Windows Vista, Windows Vista x64, Windows XP, Windows XP x64, iOS 5.0+, iOS 6.0+
System requirements	Approx.100 MB HDD space
PC Display requirements	XGA (1024 x 768) or higher
Included Software	Epson Label Editor

Brochure

LabelWorks LW-1000P (UK Type AC adapter)

Epson's fastest LabelWorks printer creates great looking labels easily. With Wi-Fi and Ethernet LAN, the LW-1000P can be shared with colleagues, and even used with smartphones and tablets.

Whether you need to label stock, shelving, cables or any other business equipment, the LW-1000P gives everything a name. The fastest label maker in Epson's LabelWorks range (despite being almost silent when printing), the top-loading LW-1000P can deal in 36mm-wide labels and prints in 360dpi. It can work cable-free around the business and be shared by office colleagues using Wi-Fi, via a router or device to device, and it even has its own Ethernet LAN slot for instant networking. With a smartphone app for both iOS and Android devices and dozens of customised labels and tapes to choose from, label making has never been this easy, this flexible. To get you started a nine-metre tape is included.

User flexibility

A wide range of connectivity options

Productive

Fast print speeds of up to 35mm/sec

Choice of label widths

Prints label widths of up to 36mm-wide

Versatile

Comes with the Epson iLabel app

Value-for-money

Long tapes up to 9m, small left/right label margins

slide 1 of 4, show larger image, labelworks lw-1000p (uk type ac adapter)

slide 1 of 4, zoom in, labelworks lw-1000p (uk type ac adapter)

slide 2 of 4, zoom in, labelworks lw-1000p (uk type ac adapter)

slide 3 of 4, zoom in, labelworks lw-1000p (uk type ac adapter)

slide 4 of 4, zoom in, labelworks lw-1000p (uk type ac adapter)

Location-free labels with the Epson iLabel app

The LW-1000P comes with Epson Label Editor, a dedicated and convenient program with a high level of label design personalisation. Those with a smartphone can download a free app to make label-making even more convenient. Available as a free download for both Android and iOS smartphones and tablets, the Epson iLabel app¹ lets you enter text and make all kinds of formatting designs before printing. The simplest mode is all about easy text entry, so what you see on your smartphone's screen is what you get on the label. However, Epson iLabel takes the power of your smartphone to new levels with handwriting recognition via the touchscreen, and even voice input using the microphone. Even the camera comes into play, with Epson iLabel allowing you to add your own photographs, logos, or icons to labels. And if you're not sure whether your creation hits the right note, why not share it with a colleague via email? All this from one super-smart app for iOS and Android devices.

From one mobile device to another

Don't just tell your colleagues about the LW-1000P – share it with them. Its compact size and built-in full and half automatic cutter make the LW-1000P a true all-in-one and it doesn't stop there. Enable Wi-Fi and this professional label maker becomes wireless, allowing it to be shared across multiple users, so it's flexible and powerful enough even for large workgroups. No network is required – the LW-1000P creates its own device to device connection – so you don't have to rely on a wireless router, but it has its own Ethernet LAN port just to make sure. So you can stay productive wherever you are in the premises – warehouse, factory floor or boardroom – and come back to the LW-1000P to find your creations have printed. With the LW-1000P, great-looking labels will never be out of range.

Labels to go

The LW-1000P is the fastest desktop label printer from Epson for a reason, with print speeds of up to 35mm/sec. Clever tape end detection means that it's easy to finish a job, even if your tape runs out. Combined with a handy automatic half label cut function, the LW-1000P is great for boosting productivity.

Increase your creations with Epson Label Editor software

Create labels your way with Epson Label Editor software. For those after full control and extra label-making options, simply connect the LW-1000P to a computer or laptop. The easy to use Epson Label Editor software – supplied with the LW-1000P – works with both Windows and Mac computers, and has endless personalisation options. Create, space and recall your own designs, choose from a huge variety of fonts and symbols, and pick the perfect template from dozens of eye-catching designs. Various professional-looking and creative text effects, frames, tables, styles, barcode options and borders have been created within Epson Label Editor, which even allows the import of data from XLS, XLSX, TEXT and CSV files. It helps make the LW-1000P a truly versatile label maker.

Tapes of many types

Find the ideal tape for the job – and install it with the minimum of fuss. Using a handy top-loading tape feed for ultimate convenience, the LW-1000P prints on a range of widths up to 36mm. To get you started the LW-1000P comes with one nine-metre long 9mm wide tape for black text on a white background. That should cover basic use, but those after labels for a special purpose will find the solution within LabelWorks: take the industry's first glow-in-the-dark safety tapes, which can be read for up to eight hours in dark environments such as staircases and emergency exits. Other new tapes include a new reflective tape for low-light places and long-distance barcode scanning. LabelWorks also includes an iron-on tape for attaching name-tags to clothes – perfect for the healthcare, catering and maintenance industries. There's no need for a separate fabric or protective cover either – they just iron onto clothes directly. The LW-1000P also boasts an integrated trim cutter to round label edges, making them far less likely to peel off.

Resistant and durable tapes

Find a tape tough enough for the job with Epson's LabelWorks range. While all LabelWorks tapes are resistant to water as well as to extreme heat and cold, Epson's heat-resistant safety tapes stay attached even up to 225 degrees Celsius. Well suited to hazardous areas such as factories and warehouses, these tapes are perfect for asset-tagging.

Profit margins

With small margins on the right and left sides of labels, the LW-1000P saves you money. Margins can be reduced to just 1mm on each side, meaning tape lasts longer.

Labels – instantly

The LW-1000P prints in class-leading 360dpi print quality at stunning speeds of up to 35mm/sec, so your labels look crisp and clear, quickly.

Specifications

What's in the box
What's in the box	1 x 9m Trial Tape, CD Manual, Driver and utilities, Epson Label Editor (CD-ROM), Installation/safety manual, Main unit, Power cable, Supplies Catalogue, USB cable, User manual (CD), Warranty Documents, Wi-Fi/network setup guide
Printing
Printing technology	Thermal transfer
Tape width	6 mm, 9 mm, 12 mm, 18 mm, 24 mm, 36 mm
Printing resolution	360 DPI
Printable Dot Numbers	384 dot numbers
Print height	27 mm
Print speed	35 mm/sec
Number of printable lines	custom
Maximum text length	custom
Multi-block	custom
Print settings
Repeat printing	1 - 999
Auto increment	Yes, 0-9, a-z, A-Z, Alphabetic, Numerical, Date, Time
Enlargement printing	No
Mirror printing	Yes
Vertical printing	Yes
Barcodes	Code 128, Code 39, Data Matrix, EAN-128, EAN-13, EAN-8, GS1-128, GS1-DataBar, ITF, MaxiCode, PDF417, Dimensional code, UPC-A, UPC-E
Wire wrap	Yes
Flag	Yes
Margin setting - Label Editor	1mm, Fixed, Manual, Auto
Fixed Length	Yes
Setting Area	Custom
Fonts & Styles
Fonts	Depending on user's PC
Font Size	custom
Frames	86 Frames
Tables	8 Tables
Style	Bold, Bold & Italic, Bold & Italic & Outline, Bold & Italic & Shadow, Bold & Outline, Bold & Shadow, Double line strikethrough, Italic, Italic & Outline, Italic & Shadow, Normal, Outline, Reverse video, Shadow, Shadow & Outline, Shadow & Outline & Italic, Strikethrough, Underline
Layout Alignment	Left, Right, Center, Manual, Justified
Character spacing	custom
Character width	custom
Memory
Memory alphanumeric	Depending on user's PC
Accent learning	n/a
Symbols	466
Memory file (saved labels)	Depending on user's PC / 800 templates available
Last label	View history, Browse
Hardware
Cutter	Auto, Half, Trim
Detection	Cover open, Tape end, Tape width
Handle	No
Strap hole	Yes
Power lamp	Yes
Half cut lamp	No
Feed button	Yes
Other functions
Auto power off	Yes
Software reset	Yes
Unit switch	mm/inch
Clock	Yes
General
Energy Use	29 Watt (Printing), 3.8 Watt (Ready), 0.23 Watt (Power off)
Low battery indicator	Yes
Product dimensions	123‎ x 153 x 139 mm (Width x Depth x Height)
Product weight	1,050 g, without tape & batteries
Colour	Green, Pale Grey
Other
Warranty	36 months Carry in
Connectivity
Interfaces	Ethernet interface (100 Base-TX / 10 Base-T), WLAN, Wireless LAN IEEE 802.11b/g/n, Wi-Fi Direct, USB 2.0, USB 1.0-A (optional), USB 2.0-A (optional)
Compatible Operating Systems	Android 2.3+, Mac OS 10.6+, Windows 7, Windows 7 x64, Windows 8, Windows 8 (32/64 bit), Windows Vista, Windows Vista x64, Windows XP, Windows XP x64, iOS 5.0+, iOS 6.0+
System requirements	Approx.100 MB HDD space
PC Display requirements	XGA (1024 x 768) or higher
Included Software	Epson Label Editor

What's in the Box

Documents

What's in the box

1x 9m Tape
Installation/Safety Manual
Wi-Fi/Network Setup Guide
Supplies Catalogue
Warranty Documents
Software & Documentation CD
USB Cable
Power Cable
