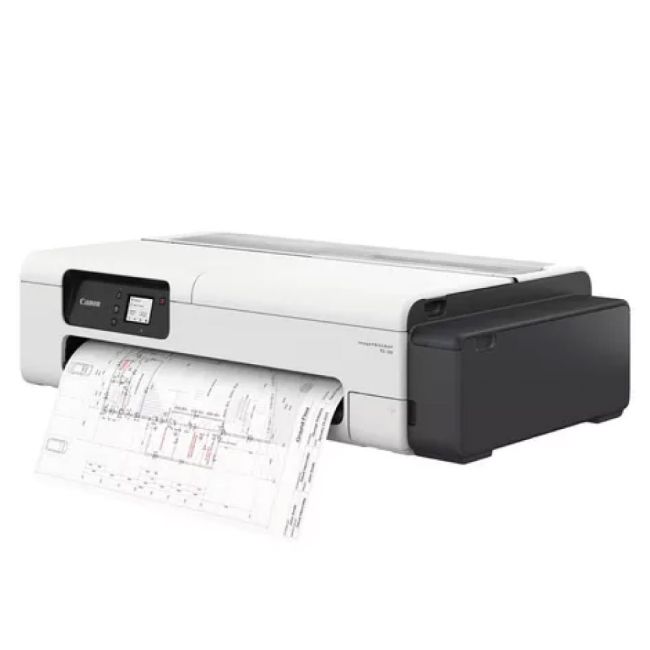

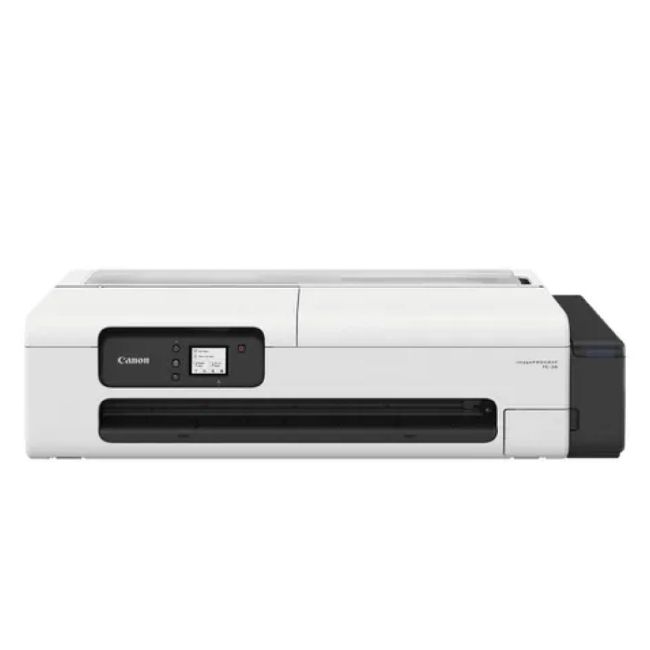

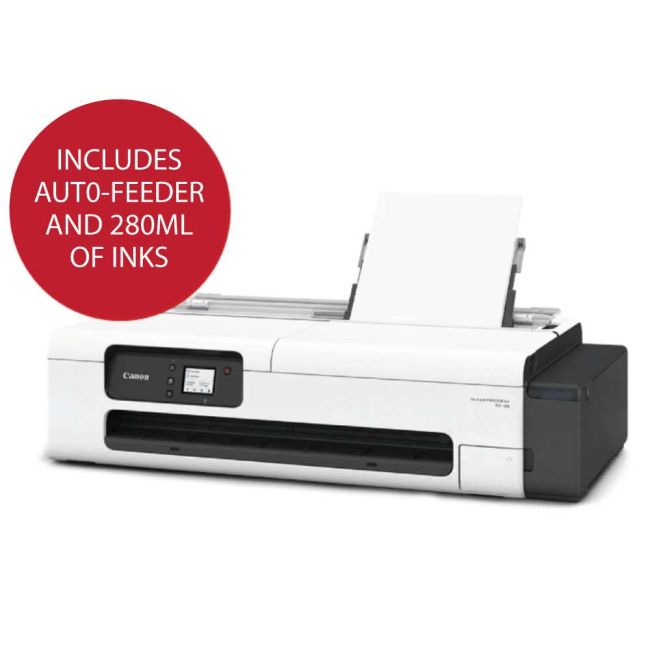

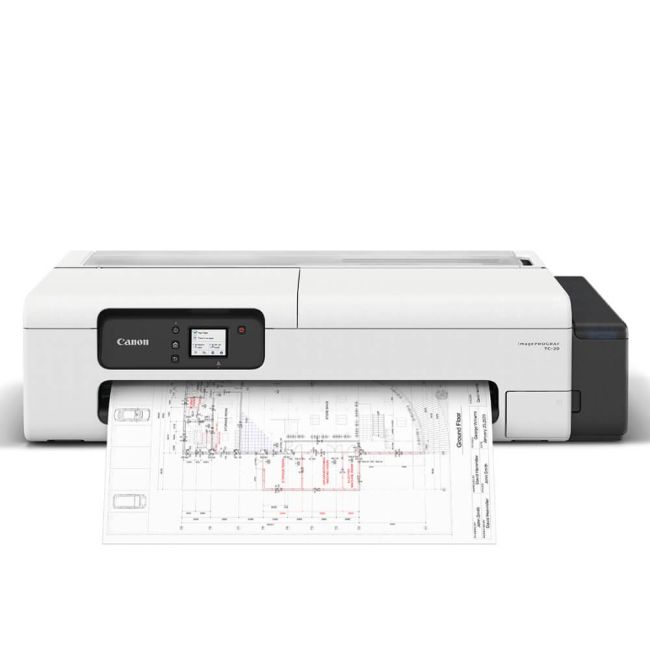

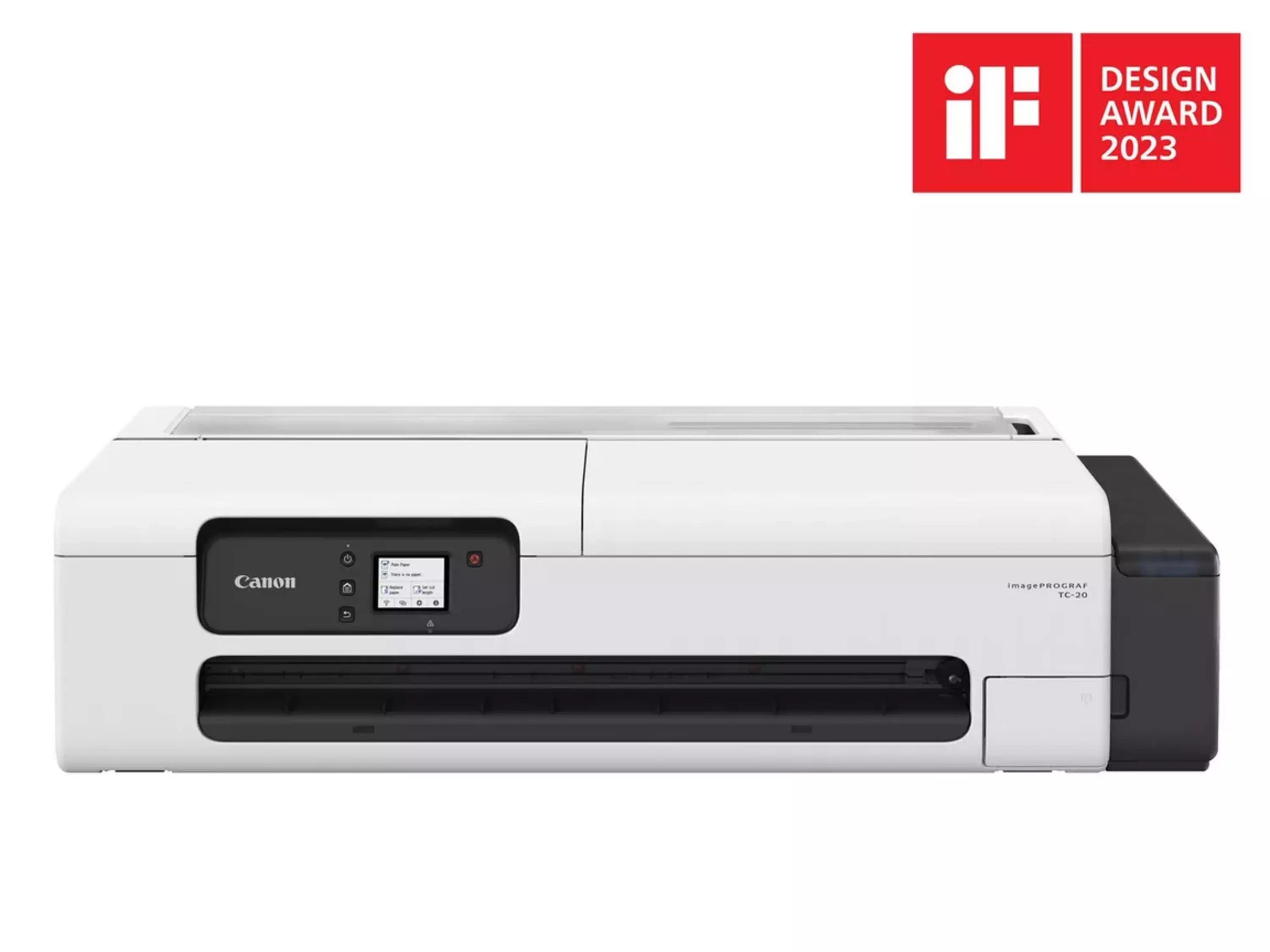

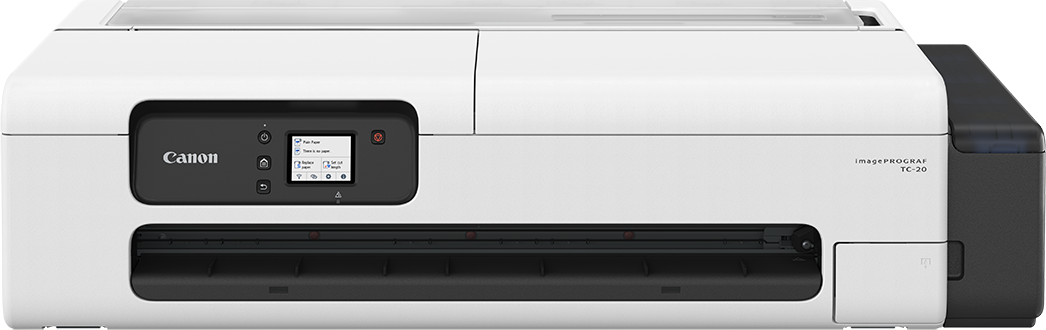

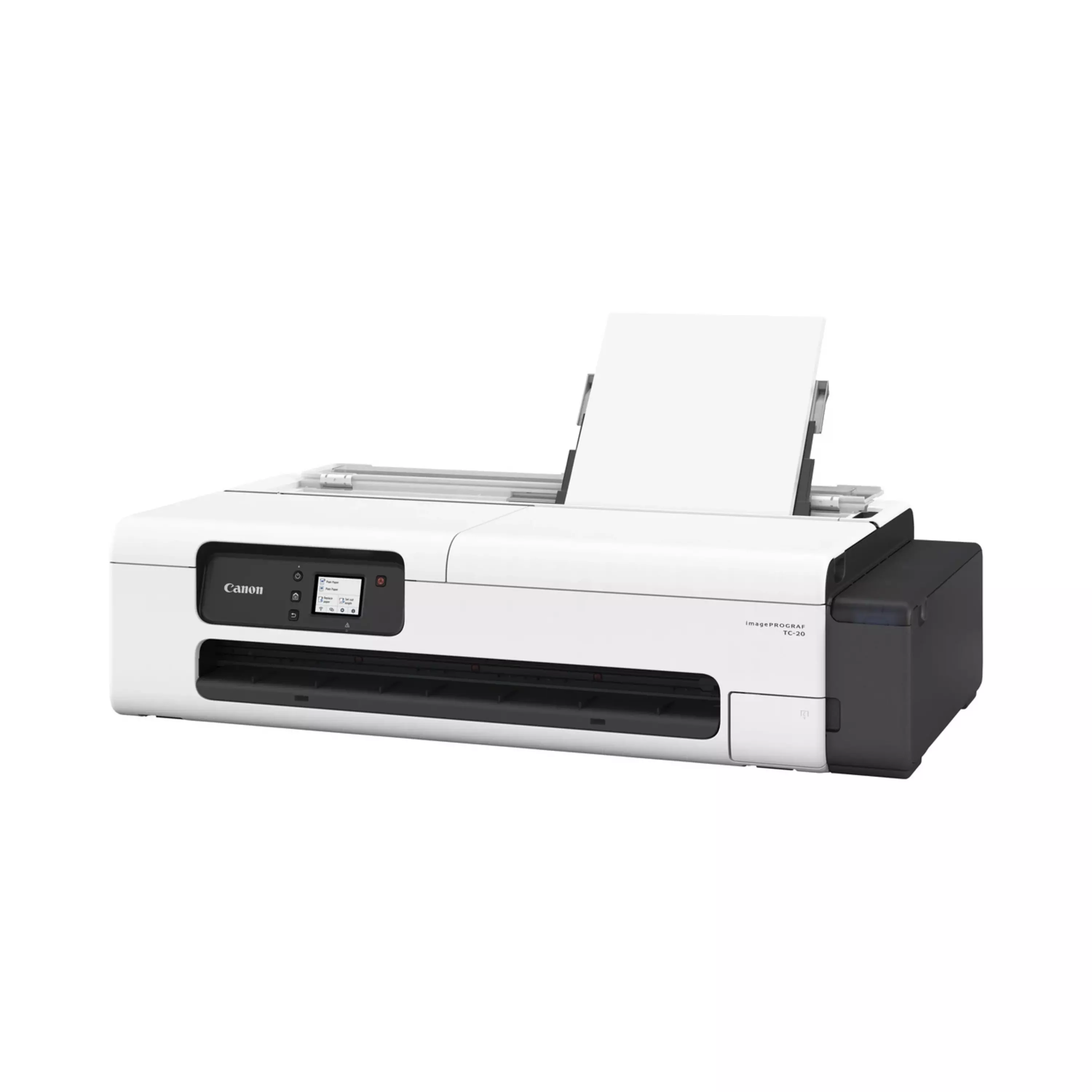

Canon imagePROGRAF TC-20 A1 (24") Large Format Inkjet Printer
Part No: 5815C003AB- A1 (24") Large Format Inkjet Printer
- 2400 x 1200 DPI Print Resolution
- USB, Network & Wireless Connection
- 1 GB Memory
- Compact Size

Order now for delivery on Monday
Rated 4.8 out of 5 on Trustpilot
Need help or advice? Call 0161 308 5800
Order now for delivery on Monday

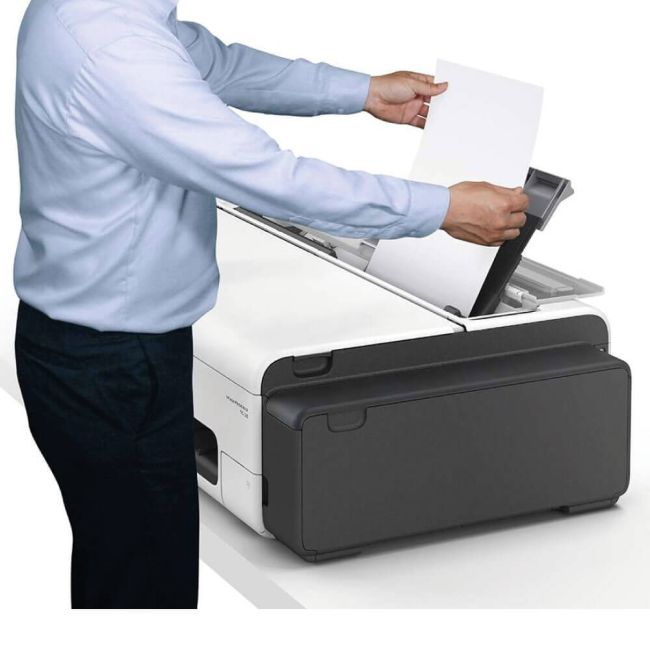

Get cost effective, professional prints with Canon imagePROGRAF TC-20, a simple-to-use 24" desktop printer, in small offices, retail shops, education or even work from home. Boost efficiency with highly sustainable and small footprint device Operate seamlessly with easy paper setting and hybrid support to switch easily between office and home with software compatibility. Quickly and easily print vibrant, high-quality material from small offices, retail shops, schools or even work from home with a compact, EPEAT Gold rated device. Affordable high quality Make most of the space you have in small offices, retail shops, education or work from home, with high-quality pigment ink and simple-to-use desktop printer without price tag, that can sit unobtrusively on your desk or shelves. Easy Operation Take the hassle out of print with this full front access device. A shaftless roll holder makes it easy to set up roll paper, while built-in auto-sheet feeder keeps your prints continuous without intervention in switching paper. Hybrid support Switch easily between home and office printing. The imagePROGRAF TC-20 shares software with your office-based imagePROGRAF devices, making hybrid working even easier. Green at heart Meet your sustainability goals with easily recyclable plastic 70ml ink bottles to minimize replacement, reduced packaging and an EPEAT Gold rated for low energy consumption.

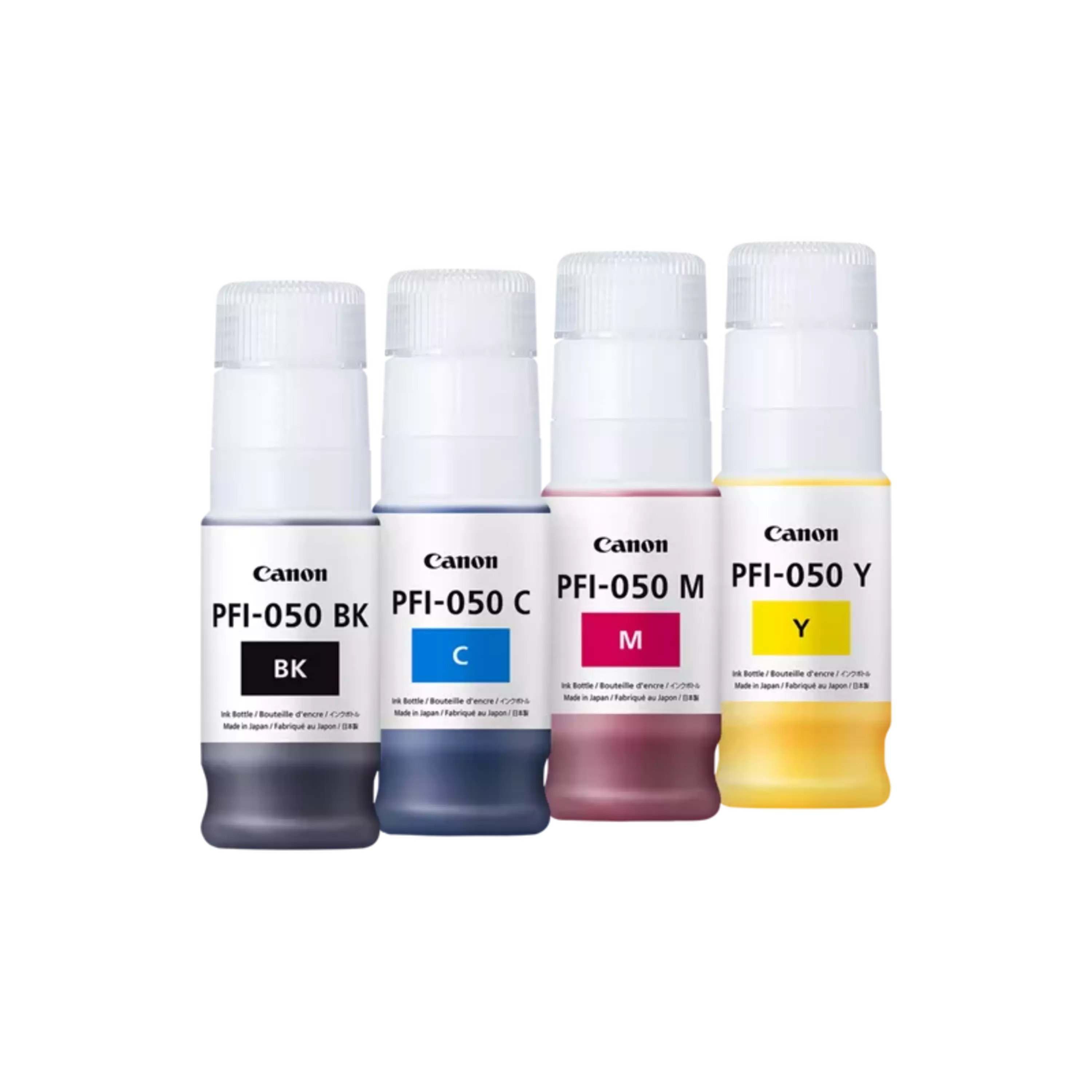

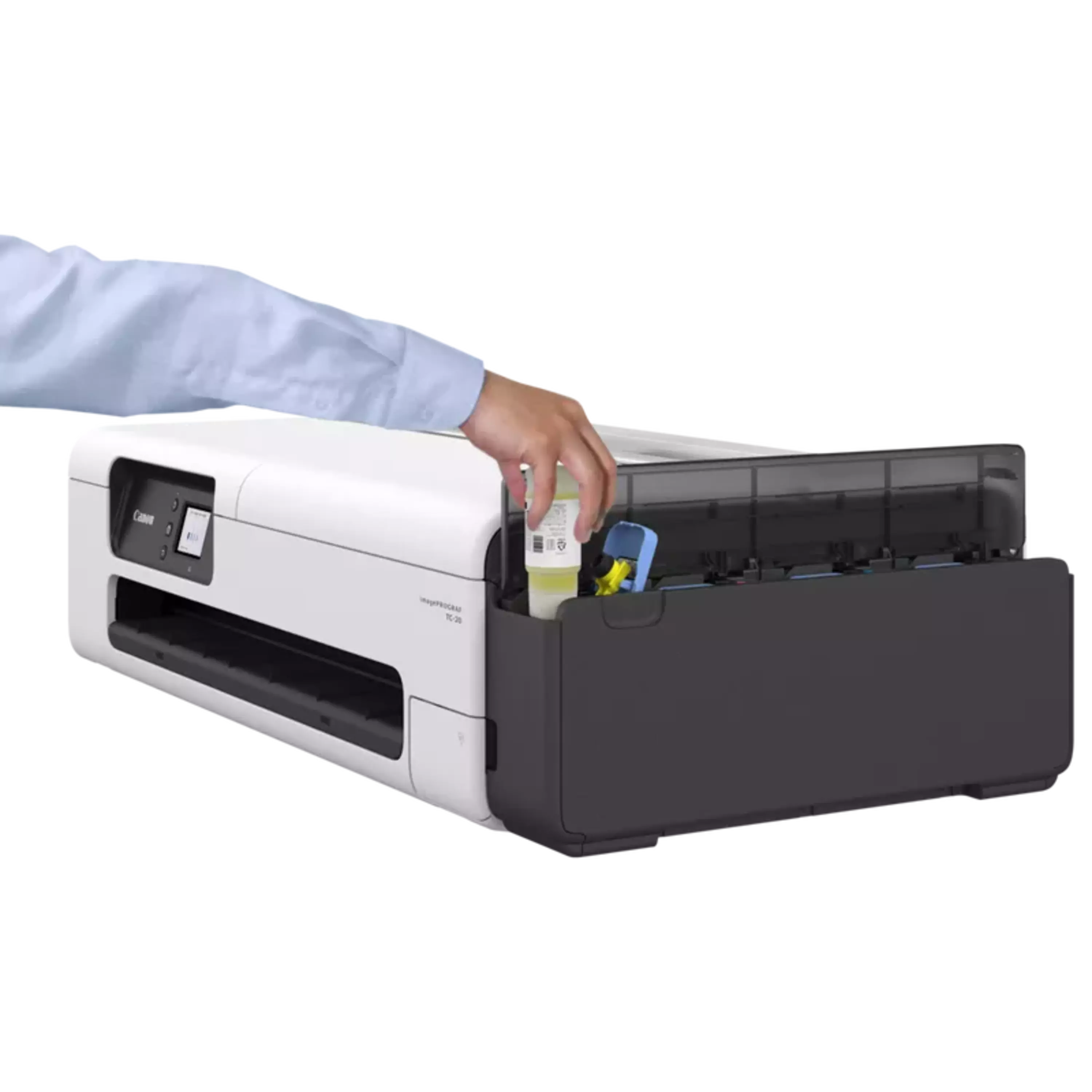

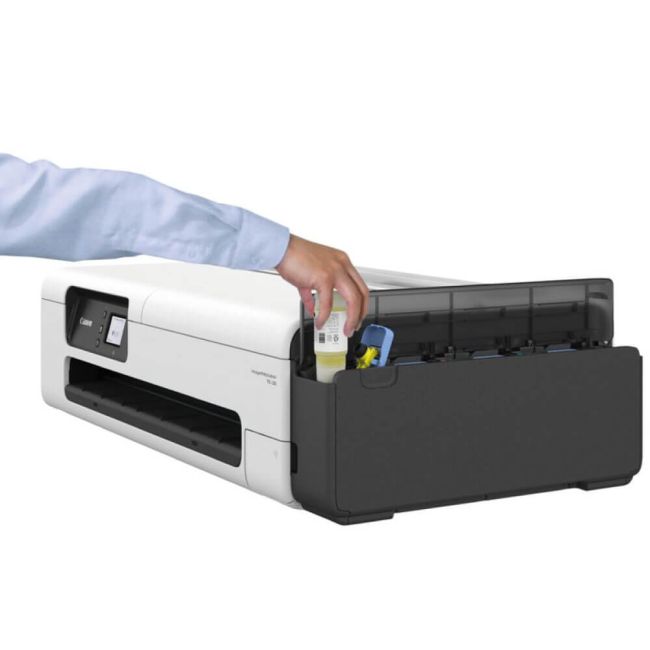

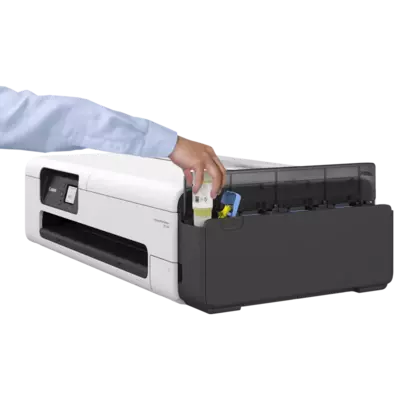

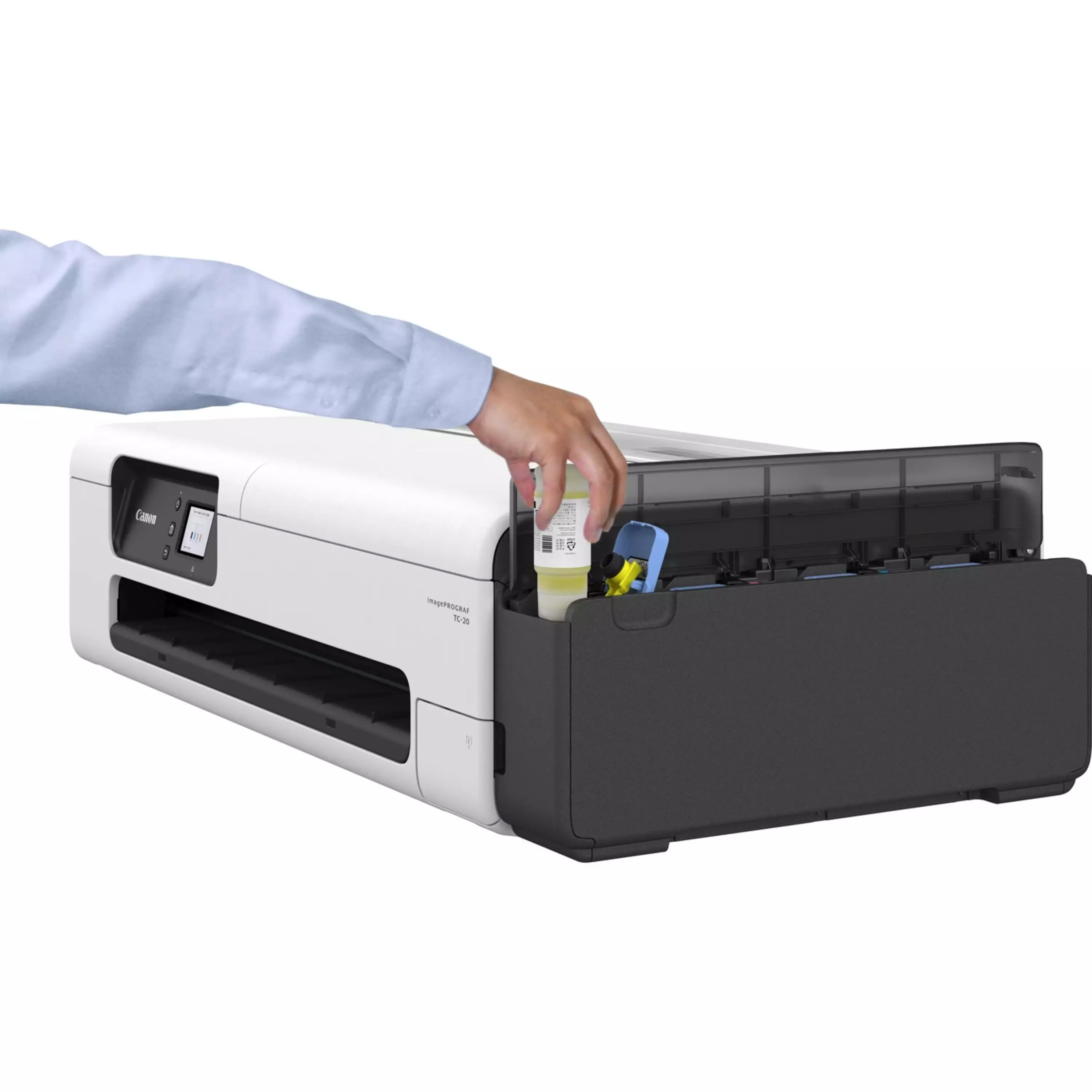

The Canon imagePROGRAF TC-20 ships with Black, Cyan, Magenta & Yellow Ink (70ml) each. (280ml in total)
Manufacturer Description
Printer Technology | |
---|---|
Printer Type | 4 Colour 24" |
Print Technology | Canon Pigment ink 4 colours integrated type (4 chips per print head x 1 print head) |
Print Resolution | 2,400 x 1,200 dpi |
Ink Capacity | Bundled Starter Ink: 280ml (70mlx4 for BK, C, M, Y) Sales Ink: 70ml (BK, C, M, Y) |
Ink Types |
32 Bit: Windows7, Windows 8.1, Windows 10 64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022 Apple Macintosh: macOS 10.14.6~macOS 12,x Pigment inks: 4 colour BK/C/M/Y |
Print Speed | |
CAD Drawing |
A1: 33sec (B&W), 62dec (Color) A3: 13sec (B&W), 22dec (Color)
|
Media Handling | |
Media Feed and Output |
Roll Paper : One Roll, Front-loading, Front Output Cut Sheet : Auto sheet feeder
|
Media Width |
Roll paper : 297mm - 610mm Cut sheet: 210mm - 297mm
|
Media Thickness | Roll/Cut : 0.08mm - 0.28mm |
Minimum/Maximum Printable Length |
Minimum: Roll/Cut : 203.2mm Maximum: Roll paper: 4m Cut sheet: 432mm
|
Media Feed Capacity |
Roll Paper: One roll Cut Sheet: 100 sheets(A4), 50 sheets (A3)
|
Power and Operating Requirements | |
Power Supply | AC 100-240V (50-60Hz) |
Power Consumption | Operation: 28W or less Sleep mode: 2.4W or less (using all ports) Default setting for the time to enter the Sleep mode: Approx. 5 minutes Power off: 0.3W or less |
Regulations | CE mark, UKCA mark |
Environment Certificates | CB certification, EPEAT GOLD1 |
Dimensions and Weight | |
Physical Dimensions and Weight |
W x D x H
Main Unit
968 x 545 x 395 mm (ASF Opened)
968 x 525 x 245 mm (ASF Closed)

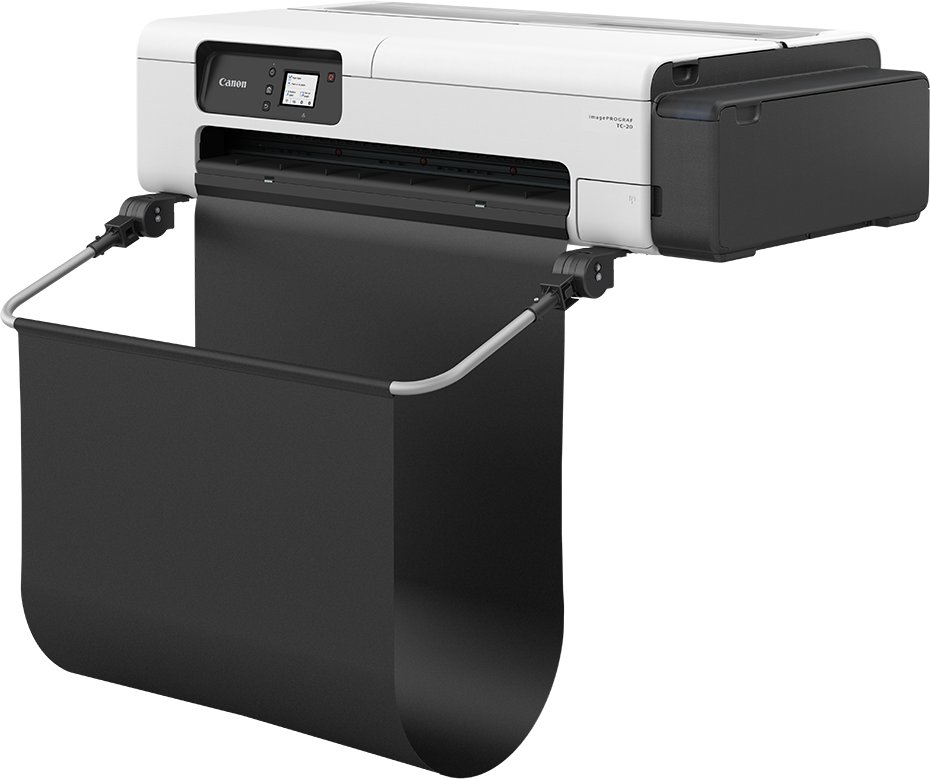

32 kg (exclude ink bottle, include print head) Main Unit + Desktop Basket (BU-06)
968 x 825 x 965 mm (Basket Opened)
968 x 525 x 965 mm (Basket Closed)

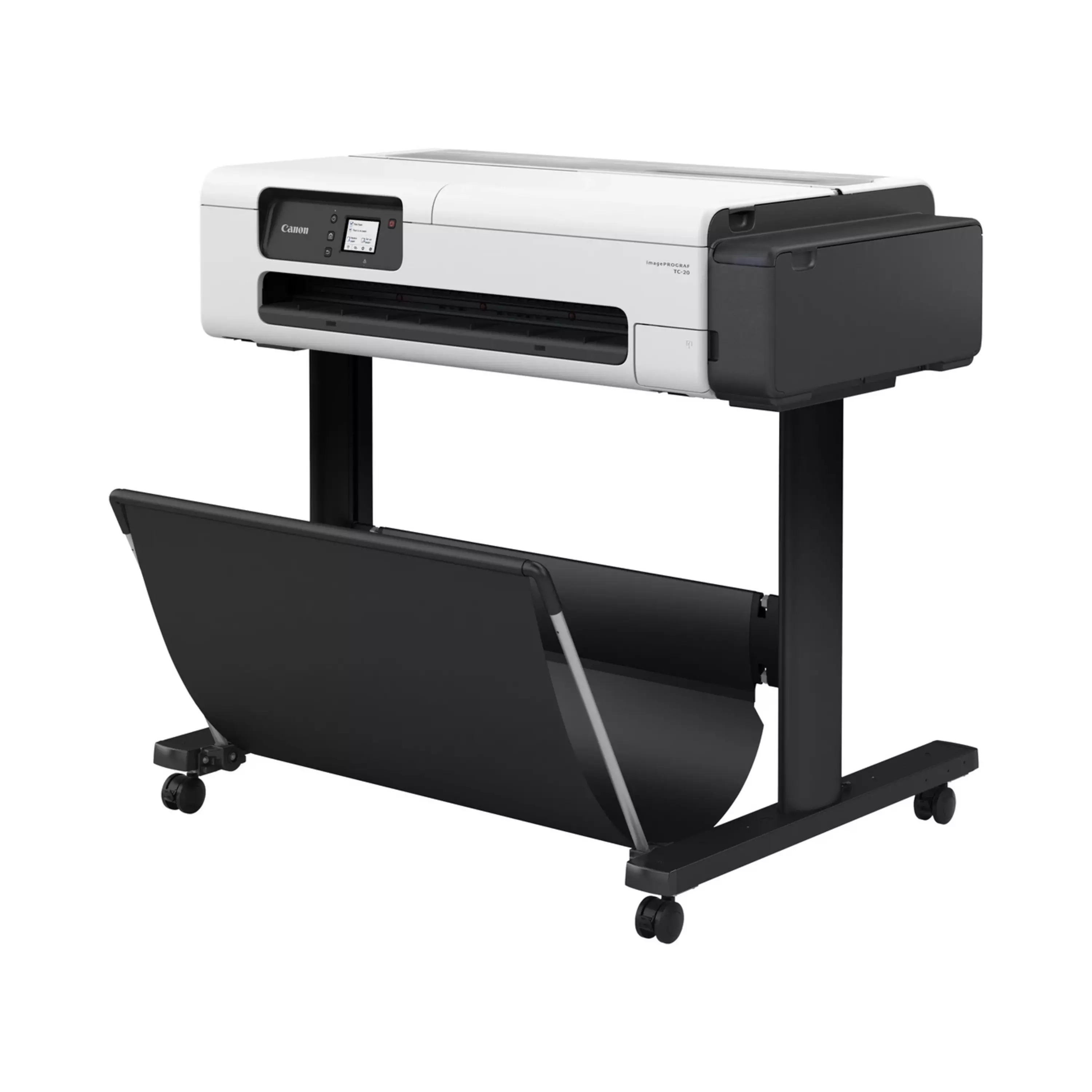

33 kg (exclude ink bottle, include print head) Main Unit + Stand + Basket (SD-24)
968 × 870 × 874 mm (Basket Opened)
968 × 707 × 874 mm (Basket Closed)
40 kg (exclude ink bottle, include print head)
|
Packaged Dimensions and Weight | Printer (Main unit): 1120 x 726 x 406 mm, 43kg Desktop Basket (BU-06): 798 x 301 x 111 mm, 1.8kg Stand + Basket (SD-24): 1055 x 824 x 268 mm, 16kg |
What's Included? | |
What's in the Box? | Printer, 1 Print head, Power Cable, 1 Set of starter ink tanks, Installation Guide, Safety/Standard Environment leaflet, EU Biocide Sheet, LFP Eur Address Sheet, Flange protective materials sheet |
Software Included | Software available as Download from the Canon Website |
Options | |
Optional Items |
Desktop Basket: BU-06 Printer Stand: SD-24
|
Consumables | |
User Replaceable Items |

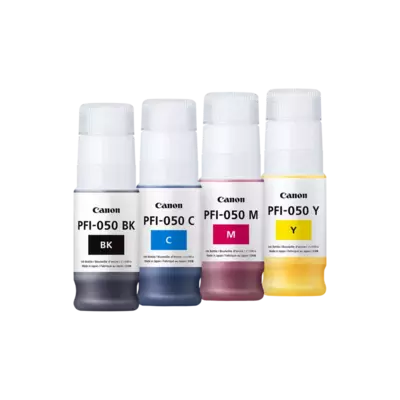

Ink Tank: PFl-050 (70ml) Print Head: PF-08 Maintenance Cartridge: MC-32
|

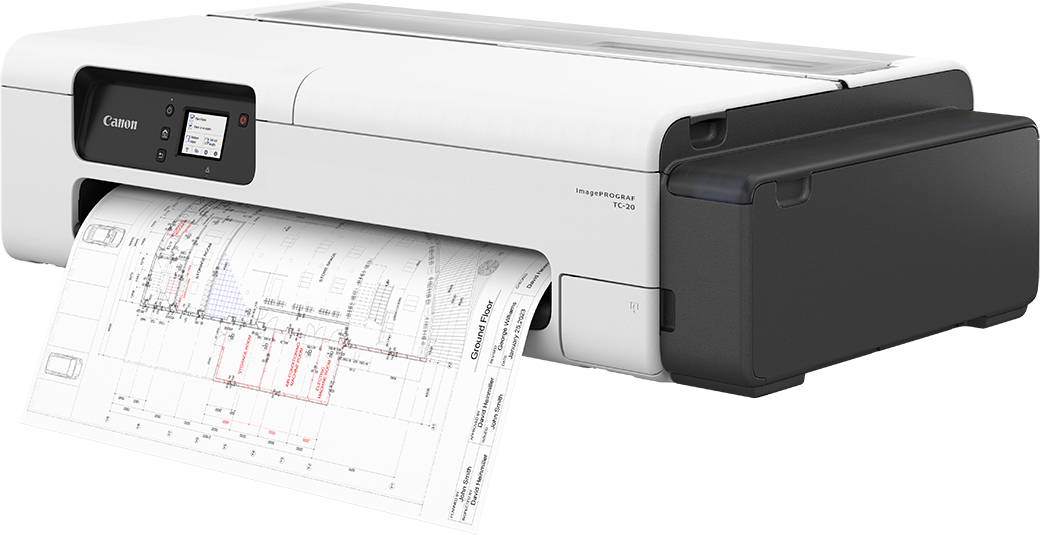

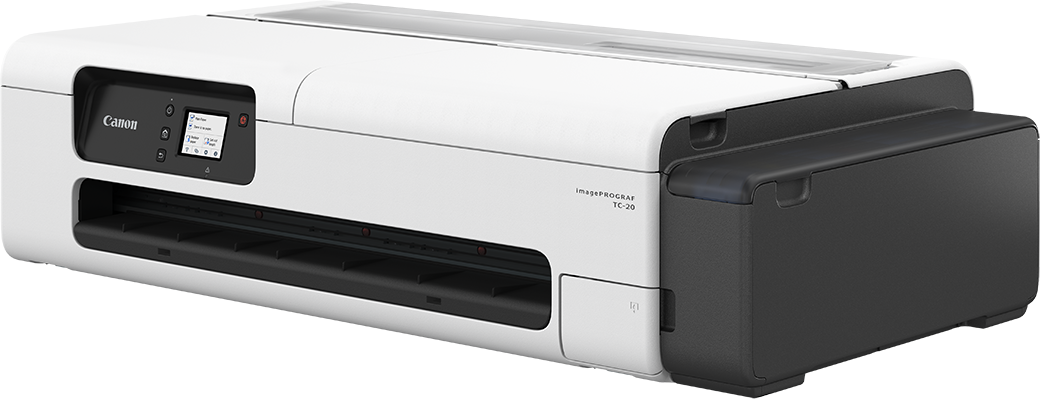

Canon imagePROGRAF TC-20 Printer
