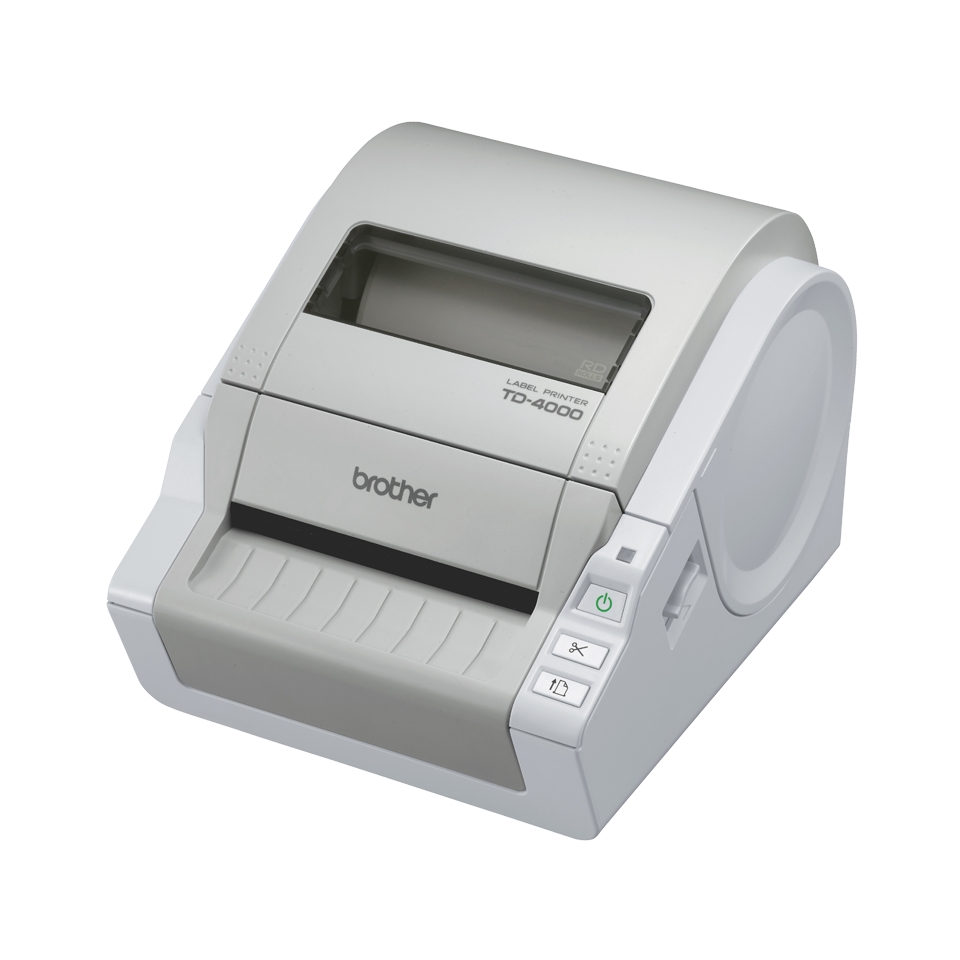

Brother TD-4000 Thermal Label Printer Left View

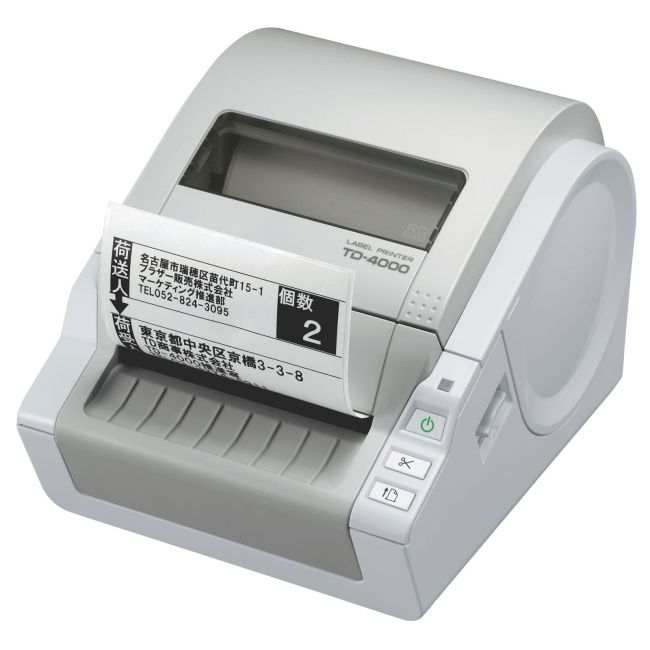

Brother TD-4000 Thermal Label Printer with cables

Brother TD-4000 Thermal Label Printer Right View

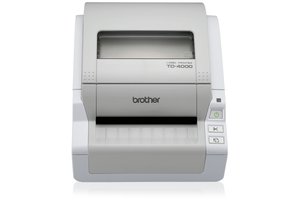

Brother TD-4000 Thermal Label Printer - DISCONTINUED

Part No: TD4000ZU1

Up to 110mm/sec Mono Print Speed
Thermal Label Printer
USB & Serial Interface
2MB Memory
Automatic Cutter

The Brother TD-4000 is now discontinued and has been replaced by the Brother TD-4410D.

VIEW REPLACEMENT

Product Spec

Min Width:: 12mm
Disc Printing:: No
Dimensions W x D x H:: 180 x 245 x 192mm
Weight (Kg):: 3.2
Max Width:: 105mm
Borderless Printing:: No
Duplex Scan:: No
Barcode Printing:: Yes
Cutter:: Automatic
Functions:: Print Only
GTIN:: 04977766676977
BarCode:: 4977766676977
Mono or Colour:: Mono
Compatibility:: Mac, Windows
Connectivity:: Serial, USB
Printer Type:: Thermal
Print DPI:: 300 x 300
Manufacturer:: Brother

Product Description

The TD-4000 desktop bar code printer is a true GDI printer, fully compatible with Windows OS computers – including Windows 7. The TD-4000 will print on most medium/high sensitivity direct thermal media in high quality 300 dots/inch print resolution, and comes ready with everything you need to start printing including the USB cable and PT-Editor, powerful but easy to use design software application.

Use PT-Editor to add bar codes, lines, curves, text and graphics, and print by typing in your data or link to a Microsoft Excel or Access database file or SQL server and select one or multiple records. Or, use your own Windows-based software application as the TD-4000 comes with a WHQL certified Windows-based printer driver and is compatible with many third party Windows-based software applications.

Unlike competitive models that require printing using their resident fonts and bar codes, the TD-4000 is host-based and can print text, bar codes and graphics from software, up to 4.3 inches/second. The built-in automatic cutter reliably trims receipts and continuous labels to your desirable length, or configure it to cut after printing die cut labels – either one at a time or after printing a strip of multiple labels. The TD-4000 is built around a mechanism with a history of reliability and comes with a 1 year limited warranty and toll free customer support.

Dimensions (WxDxH) 173 x 229 x 158 mm - Weight: 1.81 kg

Manufacturer's Description

Manufacturer Description

For the larger label

Labels often have to incorporate a considerable amount of important information, so you need a printer that can put it all together efficiently and with consistently high-quality results.

The TD-4000 prints at up to 110mm per second and 300dpi, with a built-in automatic cutter. Your labels can be up to 102mm wide, and anywhere from 25mm to 3m long.

The TD-4000’s P-touch Editor software supports barcode printing, and also allows you to import graphics and date for a truly personalised solution – so this feature-packed professional label printer always delivers.

USB-connectivity

P-Touch Editor

Supplies

RDS05E1 - Die Cut Labels (Box of 12 rolls, price shown is per unit).
RDS04E1 - Die Cut Labels (Box of 12 rolls, price shown is per unit).
RDS07E5 - Continuous Paper Label - White - 58mm x 86M (Box of 12 rolls, price shown is per unit).
RDS01E2 - Continuous length paper label (Box of 12 rolls, price shown is per unit).
RDS03E1 - Die Cut Labels (Box of 12 rolls, price shown is per unit).
RDS02E1 - Die Cut Labels (Box of 12 rolls, price shown is per unit).

General
Maximum label width (mm)	102
Office	Industrial
Buttons	Power, Feed, Cut
Flash RAM	2 MB
Housing colour	Light grey & pearl white
LED	Status
Connectivity
Serial	RS-232C Serial (9 pin)
USB interface	USB Ver. 2.0 (Full Speed)
Dimensions & weights
Dimensions	173 mm (W) x 229 mm (D) x 158 mm (H)
Weight	(without RD rolls) 1.81 kg
In the box
AC adaptor power cord	Yes
Others	102 mm continuous black on white label roll (2 metre starter roll)
Software disc	CD ROM containing software, drivers and user guide
Supplies	51 mm x 26 mm black on white die cut label roll (60 labels)
USB cable	Yes
Operating systems & software
Windows	Windows 7, Windows Vista, Windows XP
Printing
Bitmap fonts	Helsinki, Letter Gothic Bold, San Diego, Brougham, Brussels
Copies	1-9999 (ESC/P P-touch Template)
Label detection sensor	Yes
Label margins	3 mm - 126 mm
Maximum label width	101.6 mm
Maximum print length	3000 mm
Maximum print width	98.6 mm
Mirror printing	Yes
Outline/Vector fonts	33 - 400 dots (22 sizes)
Resolution (dpi)	300 x 300
Sequential numbering	1 - 9999 / A - Z / a - z
Standard print speed	110 mm per second
Supported commands	Raster mode, ESC/P, P-touch template mode
P-touch Editor label design software
Database file compatibility	csv, Microsoft Access, Microsoft Excel
Date and time stamp	Date and time
Fonts	All installed truetype fonts / 17
Frames	126
Label length settings	25 mm (minimum) - 3 metres
Languages	English / Danish / Dutch / French / German / Italian / Norwegian / Portuguese / Spanish / Swedish / Finnish / Czech / Polish / Hungarian / Simplified Chinese / Russian / Turkish / Japanese
Microsoft Office add-in (highlight->click->print)	Excel, Outlook, Word
Typestyles	Bold, Horizontal lines, Invert, Italic, Normal, Outside frame, Shadow, Shadow light, Surround
Supplies and accessories
Rolls	RD rolls (die-cut and continuous)

TD4000ZU1

For the larger label

Labels often have to incorporate a considerable amount of important information, so you need a printer that can put it all together efficiently and with consistently high-quality results.

The TD-4000 prints at up to 110mm per second and 300dpi, with a built-in automatic cutter. Your labels can be up to 102mm wide, and anywhere from 25mm to 3m long.

USB-connectivity

P-Touch Editor

Supplies

RDS05E1 - Die Cut Labels (Box of 12 rolls, price shown is per unit).
RDS04E1 - Die Cut Labels (Box of 12 rolls, price shown is per unit).
RDS07E5 - Continuous Paper Label - White - 58mm x 86M (Box of 12 rolls, price shown is per unit).
RDS01E2 - Continuous length paper label (Box of 12 rolls, price shown is per unit).
RDS03E1 - Die Cut Labels (Box of 12 rolls, price shown is per unit).
RDS02E1 - Die Cut Labels (Box of 12 rolls, price shown is per unit).

Specifications

General
Maximum label width (mm)	102
Office	Industrial
Buttons	Power, Feed, Cut
Flash RAM	2 MB
Housing colour	Light grey & pearl white
LED	Status
Connectivity
Serial	RS-232C Serial (9 pin)
USB interface	USB Ver. 2.0 (Full Speed)
Dimensions & weights
Dimensions	173 mm (W) x 229 mm (D) x 158 mm (H)
Weight	(without RD rolls) 1.81 kg
In the box
AC adaptor power cord	Yes
Others	102 mm continuous black on white label roll (2 metre starter roll)
Software disc	CD ROM containing software, drivers and user guide
Supplies	51 mm x 26 mm black on white die cut label roll (60 labels)
USB cable	Yes
Operating systems & software
Windows	Windows 7, Windows Vista, Windows XP
Printing
Bitmap fonts	Helsinki, Letter Gothic Bold, San Diego, Brougham, Brussels
Copies	1-9999 (ESC/P P-touch Template)
Label detection sensor	Yes
Label margins	3 mm - 126 mm
Maximum label width	101.6 mm
Maximum print length	3000 mm
Maximum print width	98.6 mm
Mirror printing	Yes
Outline/Vector fonts	33 - 400 dots (22 sizes)
Resolution (dpi)	300 x 300
Sequential numbering	1 - 9999 / A - Z / a - z
Standard print speed	110 mm per second
Supported commands	Raster mode, ESC/P, P-touch template mode
P-touch Editor label design software
Database file compatibility	csv, Microsoft Access, Microsoft Excel
Date and time stamp	Date and time
Fonts	All installed truetype fonts / 17
Frames	126
Label length settings	25 mm (minimum) - 3 metres
Languages	English / Danish / Dutch / French / German / Italian / Norwegian / Portuguese / Spanish / Swedish / Finnish / Czech / Polish / Hungarian / Simplified Chinese / Russian / Turkish / Japanese
Microsoft Office add-in (highlight->click->print)	Excel, Outlook, Word
Typestyles	Bold, Horizontal lines, Invert, Italic, Normal, Outside frame, Shadow, Shadow light, Surround
Supplies and accessories
Rolls	RD rolls (die-cut and continuous)

What's in the box

Brother TD-4000 Thermal Label Printer
Software
User Guide
Power Cable
USB Cable
