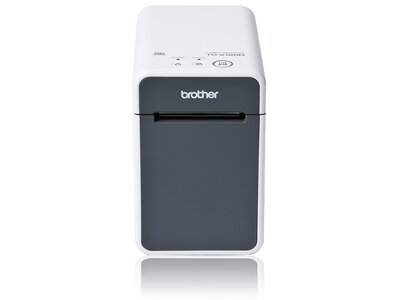

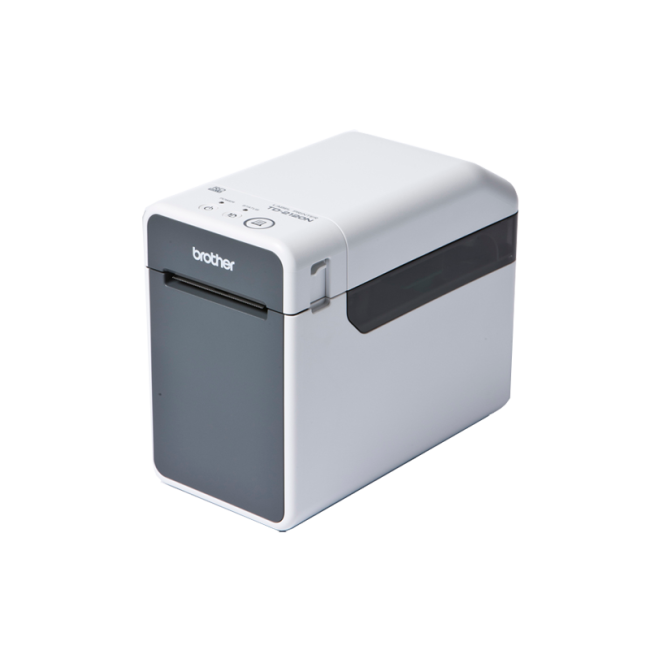

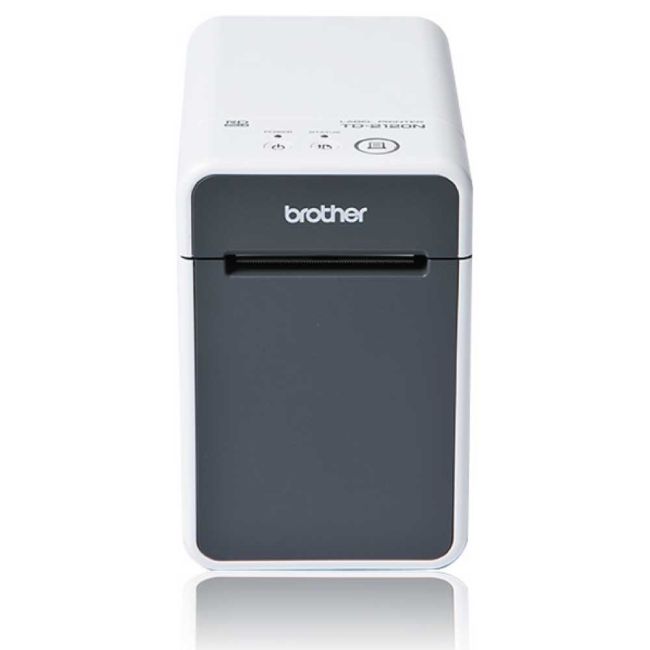

Brother TD-2120N Direct Thermal Label Printer - DISCONTINUED

Brother TD-2120N Direct Thermal Label Printer - DISCONTINUED

Part No: TD2120NZU1

Direct Thermal Label Printer
No Toner, Ink or Ribbon Costs
USB, Serial & Network Connection
203 x 203 DPI Print Resolution
6MB Memory
152.4mm Per Second Print Speed
Max Label Width: 63mm

The Brother TD-2120N is now discontinued and has been replaced by the Brother TD-2125N.

VIEW REPLACEMENT

Product Spec

Memory:: 64 MB
Min Width:: 6mm
Disc Printing:: No
Dimensions W x D x H:: 110 x 215 x 172mm
Weight (Kg):: 1.34
Emulation:: P-Touch Template 2.0, ZPLII Emulation, Raster, ESC/P, CPCL Emulation
Max Width:: 63mm
Borderless Printing:: No
Duplex Scan:: No
Barcode Printing:: Yes
Cutter:: Automatic
Functions:: Print Only
GTIN:: 4977766720496
BarCode:: 4977766720496
Mono or Colour:: Mono
Compatibility:: Mac, Windows
Connectivity:: Network, Serial, USB
Printer Type:: Direct Thermal
Print DPI:: 203 x 203
Manufacturer:: Brother

Product Description

Please Note: The Brother TD-2020N label printer doesn't include a display screen

Compact, quick and efficient, the Brother TD-2120N has been developed for use in a wide range of retail spaces for relevant applications. Capable of completing a wide range of tasks including printing price, mark-down, product identification, returns and shelf-edge labels – the printer benefits from versatile functionality.

Designed to minimise footprint, the Brother TD-2120N can be transported atop a small mobile cart – to make the process of applying price and product labels in a large retail space simpler and more efficient. Fitted with a rechargeable li-ion battery, the mobility of the printer is never compromised.

Benefiting from a touch panel and LCD screen, it is easier than ever to quickly and accurately produce a large quantity of unique and different labels whilst stationary or on the move. Helping reduce the risk of mistakes, the Brother TD-2120N is ideal for tasks when time and brevity need to be taken into consideration.

The label printer is capable of printing directly from a range of computer programs including Microsoft Access or Excel – further simplifying the process and reducing time consumption. Capable of printing up to 154.44mm per second, the Brother TD-2120N is well-suited to the demands of a busy retail environment.

Warranty: 3 Year Warranty

Manufacturer's Description

Manufacturer Description

0:47

IntroText

Supplies

BDE1J026051060 - The BDE-1J026051-060 die-cut label roll, measuring 51mm x 26mm and containing 500 labels per roll has been Certified by Brother International Europe. Each purchase contains 12 rolls per order.
BDE1J026051102 - The BDE-1J026051-102 die-cut label roll, measuring 51mm x 26mm and containing 1,900 labels per roll has been Certified by Brother International Europe. Each purchase contains 16 rolls per order.
BDL7J000058040 - The BDL-7J000058-040 continuous receipt roll, measuring 58mm in width, has been Certified by Brother International Europe. Each purchase contains 24 rolls per order.
BDL7J000058102 - The BDL-7J000058-102 continuous receipt roll, measuring 58mm in width, has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.
RDS05E1 - Die Cut Labels - 51mm x 26mm
RDS07E5 - Continuous receipt rolls - 58mm x 86m

Accessories

PABB001 - This compact battery charging unit helps you take your TD label printer mobile
PABI001 - This product has been discontinued.
PABT4000LI - The Brother PABT4000LI is a long-lasting lithium ion battery for use in Brother label printers
PALP001 - Makelabel printing easier with the PALP001 label peeler
PASCA001 - Connect label printers to your computer with this handy serial adapter
PATDU001 - Touch Panel display (TD series)
PAWI001 - WiFi WLAN Interface (TD-2000 Series)


	TD-2120N	TD-2130N	TD-2020
Price	−	−	−
Print resolution	203dpi	300dpi	203dpi
Connectivity	USB, Serial RS232C (DB9 male), wired LAN	USB, Serial RS232C (DB9 male), wired LAN	USB, Serial RS232C (DB9 male)
AirPrint	Yes with PA-WI-001	Yes with PA-WI-001	No
Supported printer commands	P-touch Template, ESC/P, Raster, ZPL II emulation, CPCL emulation	P-touch Template, ESC/P, Raster, ZPL II emulation, CPCL emulation	P-touch Template, ESC/P, Raster, ZPL II emulation, CPCL emulation
Inbox	AC adapter and cord, USB cable, documentations	AC adapter and cord, USB cable, documentations	AC adapter and cord, USB cable, documentations
Tear off release mode	Standard: Continuous, tear off Optional: peeler	Standard: Continuous, tear off Optional: peeler	Standard: Continuous, tear off
Outer diameter (max.)	127mm (5 inch)	127mm (5 inch)	127mm (5 inch)
Core diameter (min.)	12.7mm (0.5 inch)	12.7mm (0.5 inch)	12.7mm (0.5 inch)
Print width (max.)	56 mm	56 mm	56 mm
Label width (max.)	63 mm	63 mm	63 mm
Optional accessories
Serial adaptor
Label peeler
Wi-Fi WLAN interface
Touch panel display
Bluetooth interface
Battery base
Battery

General
Technology	Direct thermal
Buttons	Power \|Feed
Memory capacity	RAM\|FLASH\|16MB\|32MB
Connectivity
Serial	Yes (Requires optional cable)
USB interface	USB 2.0 Full Speed\|USB Host
Wired network interface	10/100 BASE-TX
Dimensions and weights
Dimensions	110mm (W) x 215mm (D) x 172mm (H)
Weight	1.34
In the box
In the box	Printer\|AC adaptor\|USB Cable\|Quick Setup Guide (QSG)\|Software\|User Guide\| CD-ROM (printer driver and user manual)
Operating systems & software
Supported Operating Systems	For the full list of compatible operating systems visit support.brother.com\|Windows\|Windows::Labelling,SupportedOperatingSystems,Windows\|Windows::Labelling,SupportedOperatingSystems,Windows\|Windows::Labelling,SupportedOperatingSystems,Windows\|Windows::Labelling,SupportedOperatingSystems,Windows\|Windows::Labelling,SupportedOperatingSystems,Windows\|Windows::Labelling,SupportedOperatingSystems,Windows
Printing
One Dimensional Barcode Symbology	CODABAR(NW7)\|Code128\|Code39\|EAN13(JAN13)\|EAN8(JAN8)\|GS1 DataBar (RSS)\|GS1 Databar(Omnidirectional/Truncated/Stacked/Stacked Omnidirectional/Limited/Expanded/Expanded Stacked)\|GS1-128(UCC/EAN-128)\|ITF(I-2/5)\|POSTNET\|UPC-A\|UPC-E
Two Dimensional Barcode Symbology	QR Code\|MaxiCode\|PDF417\|DataMatrix\|Aztec
Maximum Print Lenght	1000mm
Printing Maximum Print Speed	6 ips
Resolution (dpi)	203
Supported commands	P-touch Template\|ZPL 2 emulation\|ESC/P
Solutions
SDK (Software Development Kit)	Yes

TD2120N

The versatile professional desktop labeller

With a range of specialised features and print resolution up to 203dpi, the TD-2120N is the perfect label printer for warehousing, logistics, manufacturing and retail - plus any other sector where you need to be able to print high-quality receipts, labels or wristbands at your desk or on the move.

Key Features

Up to 6 inches per second print speed
203dpi print resolution
Network capability + optional accessories available (touch panel display, label peeler, rechargeable battery, wireless LAN & Bluetooth).
USB and serial connectivity
32MB RAM, 16MB Flash
ZPL II printer language

slide 1 of 2, show larger image, td2120n

0:47

IntroText

Supplies

BDE1J026051060 - The BDE-1J026051-060 die-cut label roll, measuring 51mm x 26mm and containing 500 labels per roll has been Certified by Brother International Europe. Each purchase contains 12 rolls per order.
BDE1J026051102 - The BDE-1J026051-102 die-cut label roll, measuring 51mm x 26mm and containing 1,900 labels per roll has been Certified by Brother International Europe. Each purchase contains 16 rolls per order.
BDL7J000058040 - The BDL-7J000058-040 continuous receipt roll, measuring 58mm in width, has been Certified by Brother International Europe. Each purchase contains 24 rolls per order.
BDL7J000058102 - The BDL-7J000058-102 continuous receipt roll, measuring 58mm in width, has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.
RDS05E1 - Die Cut Labels - 51mm x 26mm
RDS07E5 - Continuous receipt rolls - 58mm x 86m

Accessories

PABB001 - This compact battery charging unit helps you take your TD label printer mobile
PABI001 - This product has been discontinued.
PABT4000LI - The Brother PABT4000LI is a long-lasting lithium ion battery for use in Brother label printers
PALP001 - Makelabel printing easier with the PALP001 label peeler
PASCA001 - Connect label printers to your computer with this handy serial adapter
PATDU001 - Touch Panel display (TD series)
PAWI001 - WiFi WLAN Interface (TD-2000 Series)

Product Comparison


	TD-2120N	TD-2130N	TD-2020
Price	−	−	−
Print resolution	203dpi	300dpi	203dpi
Connectivity	USB, Serial RS232C (DB9 male), wired LAN	USB, Serial RS232C (DB9 male), wired LAN	USB, Serial RS232C (DB9 male)
AirPrint	Yes with PA-WI-001	Yes with PA-WI-001	No
Supported printer commands	P-touch Template, ESC/P, Raster, ZPL II emulation, CPCL emulation	P-touch Template, ESC/P, Raster, ZPL II emulation, CPCL emulation	P-touch Template, ESC/P, Raster, ZPL II emulation, CPCL emulation
Inbox	AC adapter and cord, USB cable, documentations	AC adapter and cord, USB cable, documentations	AC adapter and cord, USB cable, documentations
Tear off release mode	Standard: Continuous, tear off Optional: peeler	Standard: Continuous, tear off Optional: peeler	Standard: Continuous, tear off
Outer diameter (max.)	127mm (5 inch)	127mm (5 inch)	127mm (5 inch)
Core diameter (min.)	12.7mm (0.5 inch)	12.7mm (0.5 inch)	12.7mm (0.5 inch)
Print width (max.)	56 mm	56 mm	56 mm
Label width (max.)	63 mm	63 mm	63 mm
Optional accessories
Serial adaptor
Label peeler
Wi-Fi WLAN interface
Touch panel display
Bluetooth interface
Battery base
Battery

Specifications

Documents

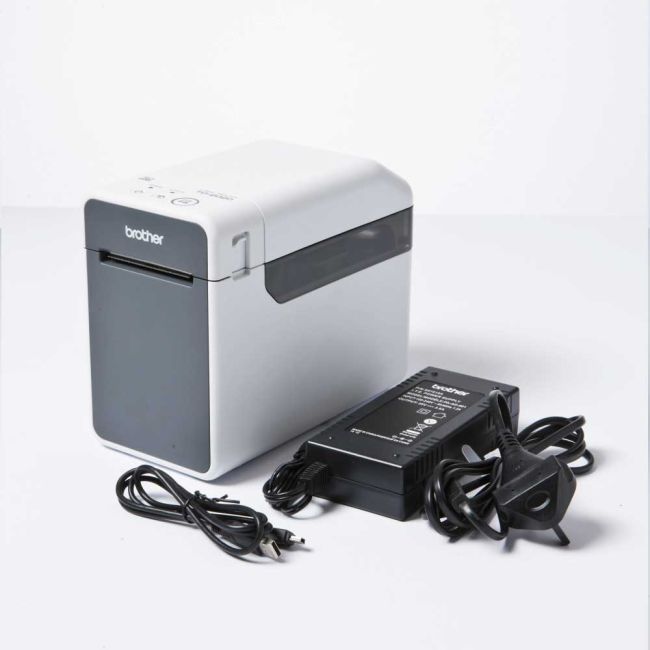

What's in the box

Brother TD-2120N Printer
Software CD
USB Cable
AC Adaptor (Power Cable)
Warranty Information
