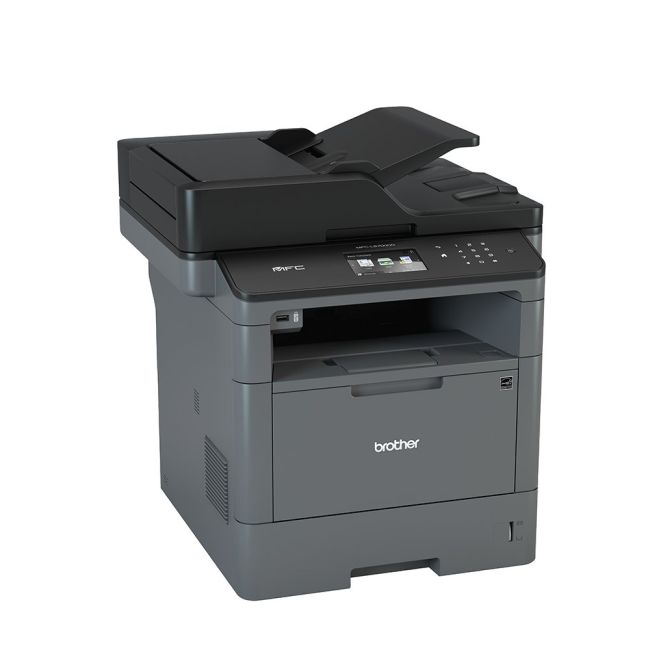

Brother MFC-L5700DN A4 Multifunction Printer Right View

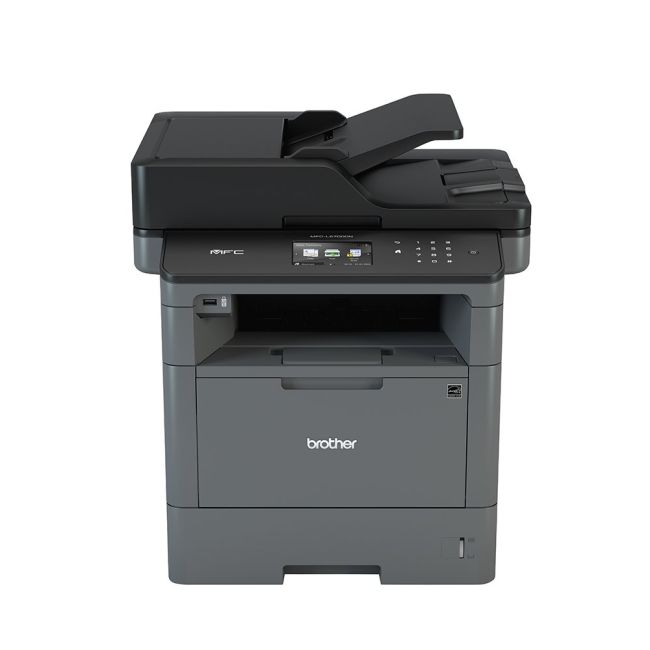

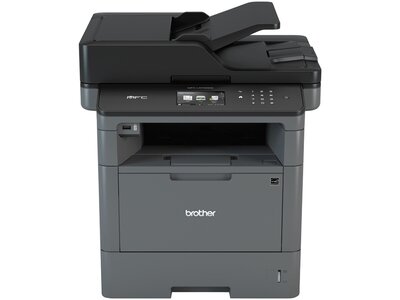

Brother MFC-L5700DN A4 Multifunction Printer Front View

Brother MFC-L5700DN A4 Multifunction Printer Left View

Brother MFC-L5700DN A4 Mono Laser Multifunction Printer - DISCONTINUED

Part No: MFCL5700DNZU1

Print / Copy / Scan / Fax
Up to 40ppm Mono Print Speed
7.2 seconds First Page Out
USB & Network Interface
Automatic Double Sided Printing
1,200 x 1,200 dpi Print Resolution

The Brother MFC-L5700DN is now discontinued and has been replaced by the Brother MFC-L5710DN.

VIEW REPLACEMENT

Product Spec

Memory:: 256 MB
Disc Printing:: No
Dimensions W x D x H:: 435 x 427 x 486 mm
Weight (Kg):: 16.5
Display Screen:: 12.3cm Touchscreen LCD Display
Max Paper Weight:: 200gsm
Emulation:: PCL6, BR-Script3 (Postscript3TM Language Emulation), IBM Proprinter XL, Epson FX-850
Processor Speed:: 800 Mhz
Borderless Printing:: No
Fax Speed:: 33.6kbps
Scan DPI:: 19200 x 19200
ADF:: 50 Sheet
Multi-Purpose Tray:: 50 Sheet
Input Capacity:: 250 Sheet
Duplex Scan:: No
Paper Handling Output:: 250 Sheet
Barcode Printing:: No
Functions:: Print/Scan/Copy
GTIN:: 04977766753845
BarCode:: 4977766753845
Mono or Colour:: Mono
Print From:: AirPrint, Google Cloud Print, Mobile
Double Sided:: Print
Compatibility:: Mac, Windows
Connectivity:: Fax, Network, USB
Printer Type:: Laser/LED
Max Paper Size:: A4
Print DPI:: 1200 x 1200
Pages Per Min Mono:: 40 PPM
Manufacturer:: Brother
First Page Out (Seconds):: 7.2

Product Description

Brother MFC-L5700DN A4 Mono Laser Multifunction Printer

An ultra-fast and super-reliable machine, the Brother MFC-L5700DN mono laser printer is versatile and is the perfect addition for use in any professional workplace. Print out speeds can be as high as 40 pages per minute, with each printout featuring a 1200 x 1200 dpi resolution.

Receive your first printout in as little as 7.2 seconds from clicking the print button. This ever-ready printer, due to its ready mode, makes it a truly efficient piece of office equipment.

Intuitive touchscreen operation

Use the straightforward, intuitive touchscreen at the front of the printer to choose from different functions and features of the printer. The wired interface of the printer has been built to be high speed, ensuring you can connect and print easily and quickly.

Connect your mobile devices to this printer using the Brother iPrint&Scan software. You can also connect using Google Cloud Print, Android print services, Mopria and AirPrint. All Brother printers come with built-in security like the Ipsec and Secure Function Lock 3.0. Any documents and data that comes through this printer is secure and can be reproduced with little to no fuss at all.

High yield cartridges

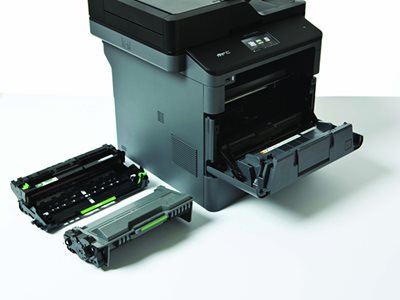

The Brother MFC-L5700DN takes high-yield cartridges and toners that make running the machine cost-efficient. Costs can be further reduced with the use of the 50-page document feed that automatically feeds paper into your printer.

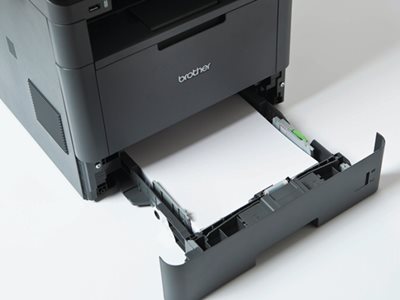

The printer has a combined input of 300 sheets of paper, saving you a lot of valuable time when carrying out larger jobs. Scanning is also straightforward with 24 images being produced each minute and you can copy 40 sheets of paper per minute using the Brother MFC-L5700DN.

There are so many features on this printer that ensures you can maximise its performance and keep your workplace as productive as possible.

Double your printing, save on paper

Enable the automatic two-sided printing mode to avoid paper and toner wastage. There is also a power-saving mode available that reduces the overall cost of running the printer itself. When not in use, the printer can be put into a deep sleep mode that uses little to no power, therefore saving you money on energy bills. This printer has been certified by Energy Star and Blue Angel and also won the If Design Award back in 2017.

1 Year Warranty

Dimensions: (W) 435 x (D)427 x (H) 486mm - Weight: 16.5kg

Manufacturer's Description

Manufacturer Description

2:00

0:51

IntroText

Better reliability

Built to perform for longer and meet the demands of high output work environments, the range has been totally remodelled with robust build quality that’s even more resilient and hardwearing.

Tighter security

In today's business environment, we understand that organisations demand the highest levels of security. In order to address this, the L5000 range is enabled with secure function lock 3.0, 802.1x network security and Internet Protocol Security (IPsec). The range also boasts Print Archive, Secure Reset and Certificate Management.

Better reliability

Built to perform for longer and meet the demands of high output work environments, the range has been totally remodelled with robust build quality that’s even more resilient and hardwearing.

Tighter security

Eco-friendly

The L5000 range is compliant with a number of environmental standards including German Blue Angel and Nordic Swan. As a result, not only does it help your business work more efficiently, it is also more energy efficient, reducing impact on the environment and lowering your costs at the same time.

Eco-friendly

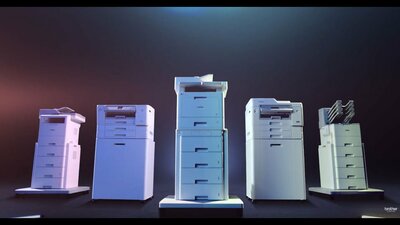

Flexible print solutions from Brother

Our L5000 range is designed to seamlessly integrate and meet your business requirements. Compatible with a range of print software and services, Brother Solutions can be specifically tailored to your requirements and enables you to maximise your print efficiency and minimise costs.

Flexible print solutions from Brother

Maximise Performance & Reduce Print Spend

Versatile paper handling enables you to add multiple lower trays across the range. This provides maximum device uptime, as less time is spent replenishing paper trays. With the optional high yield toner cartridges, productivity is enhanced whilst reducing your overall printing costs.

Maximise Performance & Reduce Print Spend


	MFC-L5700DN	MFC-L5750DW	DCP-L5500DN	HL-L5100DN	HL-L5200DW
Price	−	−	−	−	−
Functionality	Print, copy, scan and fax	Print, copy, scan and fax	Print, copy and scan	Print	Print
Print speeds	Up to 40ppm	Up to 40ppm	Up to 40ppm	Up to 40ppm	Up to 40ppm
Display	9.3cm colour touchscreen	12.3cm colour touchscreen	9.3cm colour touchscreen	16 characters x 1 line LCD	16 characters x 1 line LCD
Connectivity	USB 2.0 & Ethernet	USB 2.0, Ethernet & wireless	USB 2.0 & Ethernet	USB 2.0 & Ethernet	USB 2.0, Ethernet & wireless
Document handling	Automatic 2-sided print	Automatic 2-sided print	Automatic 2-sided print	Automatic 2-sided print	Automatic 2-sided print
In-box supplies	Up to 2,000 pages	Up to 2,000 pages	Up to 2,000 pages	Up to 3,000 pages	Up to 3,000 pages

General
Printer Type	Mono
Function	Copy\|Fax\|Print\|Scan
Maximum Paper Size	A4
Technology	Laser
Laser Classification	Class 1 Laser Product
Connectivity	USB\|Wired
Memory	Internal::256MB
Control Panel	Touchscreen
Display	Yes::9.3cm Colour Touchscreen
Printing
One Sided Print Speed A4 Mono	40 (pages per minute)
Duty Cycle	Up to 3,500 pages
Two Sided Print Speed A4 Mono	20 (sides per minute)
First print out time	Less than 7.2 seconds from ready mode
Mobile Print	True
Automatic 2 sided print	True
Print Languages	Postscript\|PCL6\|Brother ESC-P\|PDF Version 1.7\|XPS Version 1.0\|BR-Script3
Quiet Mode	True
Embedded Fonts	12 bitmap fonts\|PCL\|PCL::66 scalable fonts\|Postscript\|Postscript::66 scalable fonts\|13 barcodes
Printer Functions	N-up Printing\|Poster Printing\|ID Printing\|Booklet Printing\|Manual 2-Sided Print\|Print Text In Black\|Print Profiles\|Watermark Printing\|Print Archive\|Carbon Copy\|Skip Blank Page
Embedded Barcodes PCL	Code128 (set A, set B, set C)\|Code39\|EAN128 (set A, set B, set C)\|EAN-13\|FIM (US-PostNet)\|Interleaved 2 of 5\|ISBN (EAN)\|ISBN (UPC-E)\|Post Net (US-PostNet)\|UPC-A\|UPC-E\|EAN-8
Drivers
Printer Drivers	ChromeOS\|ChromeOS::Supports native ChromeOS printing\|Linux\|Linux::CUPS\|Linux::LPD/LPRng (x86/x64 environment)\|macOS\|macOS::10.14,x\|macOS::We recommend using AirPrint from 11.0,x\|Visit support.brother.com for the full list of supported OS and to download the latest drivers and software,\|Windows\|Windows::10\|Windows::11\|Windows::8.1\|Windows::Server\|Server::2008\|Server::2008 R2\|Server::2012\|Server::2012 R2\|Server::2016\|Server::2019\|Server::2022
Scan Drivers	Windows\|Linux\|Linux:: SANE\|Visit support,brother,com for the full list of supported OS and to download the latest drivers and software,\|Macintosh\|Windows::Windows 11\|Windows::Windows 10\|Windows:: Windows 8.1\|Macintosh::10.14.x\|Windows::TWAIN\|Windows::WIA\|Windows:: Windows Server 2019, 2016, 2012R2, 2012 & 2008R2
Paper Handling
Paper input	Automatic Document Feeder\|Standard (Tray 1)\|Standard (Tray 1)::250 sheets\|Multi Purpose Tray\|Multi Purpose Tray::50 sheets\|Multi Purpose Tray::10 envelopes\|Automatic Document Feeder::50 sheets
Paper output	Face Down\|Face Down::150 sheets\|Face Up\|Face Up::1 sheet (straight path)
Media Sizes	Standard (Tray 1)\|Standard (Tray 1)::A4\|Standard (Tray 1)::Letter\|Standard (Tray 1)::Folio\|Standard (Tray 1)::A5\|Standard (Tray 1)::A5 (Long Edge)\|Standard (Tray 1)::A6\|Standard (Tray 1)::Executive\|2-Sided Print\|2-Sided Print::A4\|Standard (Tray 1)::Mexico Legal\|Standard (Tray 1)::India Legal\|Multi Purpose Tray\|Multi Purpose Tray::Width: 76.2mm to 215.9mm x Length: 127mm to 355.6mm\|Automatic Document Feeder\|Lower Trays::Executive\|Lower Trays::Letter\|Lower Trays::Legal\|Lower Trays\|Lower Trays::A4\|Lower Trays::A5\|Lower Trays::Folio\|Lower Trays::Mexico Legal\|Lower Trays::India Legal\|Automatic Document Feeder::Width: 105mm to 215.9mm x Length: 147.3mm to 355.6mm
Media Types and Weights	Standard (Tray 1)\|Auto 2-Sided::Plain\|Auto 2-Sided::Recycled\|Automatic Document Feeder::65 - 90g/m2\|Standard (Tray 1)::Plain\|Standard (Tray 1)::Recycled\|Auto 2-Sided\|Auto 2-Sided::60 - 105g/m2\|Standard (Tray 1)::Coloured and letterhead\|Multi Purpose Tray\|Multi Purpose Tray::Plain\|Multi Purpose Tray::Recycled\|Multi Purpose Tray::Bond\|Multi Purpose Tray::Coloured and letterhead\|Standard (Tray 1)::60 - 120g/m2\|Multi Purpose Tray::60 - 200g/m2\|Auto 2-Sided::Coloured and letterhead\|Automatic Document Feeder\|Automatic Document Feeder::Plain\|Automatic Document Feeder::Recycled
Copy
Copy Functions	Multi-Copying/Stack/Sort\|N in 1 Copying\|2 in 1 ID Copying\|Receipt Copying\|Enlarge Text Copy
FCOT from ready mode (seconds)	Mono::9.2 seconds
Grey Scale	256 Shades
One Sided Copy Speed A4 Mono	40
Network
Wired Network Security	SSL/TLS\|SSL/TLS::IPPS\|SSL/TLS::HTTPS\|802,1x\|802,1x::EAP-MD5\|802,1x::EAP-FAST\|802,1x::PEAP\|802,1x::EAP-TLS\|802,1x::EAP-TTLS\|SMTP-AUTH\|SSL/TLS::SMTP\|SNMP v3\|Kerberos\|IPsec\|APOP\|SSL/TLS::POP3\|SSL/TLS::IMAP4
Scanning
Scanner type	CIS (Contact Image Sensor)
Resolution	Interpolated\|Scanner Glass\|ADF\|Colour::600 x 600dpi
Colour Depth	Input\|48 bit Colour Processing\|Output\|Output::24 bit Colour Processing
One Sided Scan Speed A4 Colour	20
One Sided Scan Speed A4 Mono	24
Scanner functions
Standard Functions	Brother Apps\|Brother Web Connect\|Scan to::USB\|Scan to::Email Server\|Scan to::PC\|Scan to::Network Folder\|Scan to::Network\|Scan to::SharePoint\|Scan to::SFTP\|Scan to::FTP\|Scan to::File\|Scan to::Image
Scan Profiles	25 Preset network
Scan Features	Skip Blank Page\|Auto Deskew\|Split PDF
Direct Scan	Yes
Fax
Fax	Telephone Index\|PC-Fax Send and Receive\|Out of Paper Reception\|Fax Stamp\|Error Correction Mode (ECM)\|Distinctive Ring Detection (UK, DK only)\|Cover Page\|Chain Dialling\|Broadcasting\|Automatic Redial\|Auto Reduction\|Fax Forwarding\|Internet Fax (I-Fax)\|Memory Transmission\|Fax to Server\|Batch Transmission\|Remote Retrieval
Fleet Management Tools
Fleet Management Tools	Unattended Installer\|MSI Installer\|Embedded Web Server\|Driver Deployment Wizard\|Mass Deployment Tool\|LAN/WAN Management Software::BRAdmin Professional
Operating Systems And Software
Software supplied - Windows	Windows Software::Brother iPrint&Scan\|Macintosh Software::Brother iPrint&Scan Desktop\|Windows Software\|Macintosh Software\|Utilities\|Windows Software::Tungsten PaperPort
Supplies And Accessories
Toner	Inbox Toner\|Inbox Toner::BK Toner\|BK::TN3430 - 3000 pages\|BK::TN3480 - 8000 pages\|BK Toner::2,000 pages
Drum Unit	50,000 pages (3 page / job)
Optional accessories	Filter Holder\|Paper trays::Lower Tray - 250 Sheets\|Paper trays::Lower Tray - 520 Sheets\|Lower Tray - 250 Sheets::LT-5500\|Lower Tray - 520 Sheets::LT-6500\|Filter Holder::FH-1000
Carton Contents
In the box	Power supply cord\|Quick setup guide\|Product safety guide\|Warranty\|Device\|Supplies
Dimensions And Weights
Weight With Carton	20.1
Dimensions With Carton	545mm (W) x 520mm (D) x 641mm (H)
Weight Without Carton	16.5
Dimensions Without Carton	435mm (W) x 427mm (D) x 486mm (H)
Duty Cycle
Print Duty Cycle	Up to 3,500 pages
Operating Environment
Power Consumption	Ready\|Sleep\|Copying\|Printing\|Deep Sleep\|Printing in quiet mode\|Printing in quiet mode::390.0W\|Deep Sleep::1.6W\|Copying in quiet mode\|Network Standby\|Ready::34.0W\|Sleep::8.0W\|Copying::645.0W\|Network Standby::2.0W
Sound Power	Quiet Mode::<6.47B(A)\|Quiet Mode\|Ready\|Copying\|Ready::<4.8B(A)\|Copying::<6.67 B
Sound Pressure	Ready\|Quiet Mode\|Ready::35.0dB\|Copying\|Copying::54.0dB\|Quiet Mode::52.0dB
TEC Value	1.832
Operating	Humidity %\|Humidity %::20 - 80%\|Degrees Celsius\|Degrees Celsius::10°C - 32°C\|Degrees Fahrenheit\|Degrees Fahrenheit::50°F - 90°F
Storage	Degrees Сelsius::0°C - 40°C\|Humidity %::35 - 85%\|Humidity %\|Degrees Сelsius\|Degrees Fahrenheit::32°F - 104°F\|Degrees Fahrenheit
Warm-up time from sleep mode	4.8
Address Book
Address Book	Speed Dials\|Group Dial\|LDAP
Solutions
Solutions	Brother Solutions Interface (BSI)
Mobile and Web Connectivity	Brother iPrint & Scan\|Apple AirPrint\|Mopria®\|Android Print Service Plugin
Connectivity
Local interface	Hi-Speed USB 2.0\|USB 2.0 Host::Front
Wired Interface	10BaseT/100BaseTX
WiFi Direct TM	False
Security features
Wired Network Security	SSL/TLS\|SSL/TLS::IPPS\|SSL/TLS::HTTPS\|802,1x\|802,1x::EAP-MD5\|802,1x::EAP-FAST\|802,1x::PEAP\|802,1x::EAP-TLS\|802,1x::EAP-TTLS\|SMTP-AUTH\|SSL/TLS::SMTP\|SNMP v3\|Kerberos\|IPsec\|APOP\|SSL/TLS::POP3\|SSL/TLS::IMAP4
IP Filter	Yes
IPv4	ARP\|RARP\|BOOTP\|DHCP\|APIPA (AutoIP)\|WINS/NetBIOS name resolution\|DNSResolver\|LLMNR responder\|LPR/LPD\|Custom Raw Port/Port9100\|SNMPv1/v2c/v3\|TFTP server\|ICMP\|Web Services (Print)\|Web Services (Scan)\|SNTPClient\|mDNS\|HTTP Server\|SMTP Client\|IPP/IPPS\|HTTP/HTTPS Server\|TFTP client\|CIFS Client\|TELNET Server\|LDAP\|FTP Client\|IMAP4 Client\|POP3 Client
IPv6	NDP\|RA\|DNS Resolver\|mDNS\|LLMNR responder\|LPR/LPD\|Custom Raw Port / Port9100\|SNMPv1/v2c/v3\|TFTP server\|ICMPv6\|SNTP Client\|Web Services (Print)\|Web Services(Scan)\|HTTP Server\|IPP/IPPS\|SMTP Client\|FTP Server\|HTTP/HTTPS Server\|TFTP client\|CIFS Client\|TELNET Server\|LDAP\|FTP Client\|IMAP4\|POP3
Features	Firmware Updates\|Port-based Network Access Control (IEEE 802,1x)\|E-mail Notifications\|E-mail Reports\|Secure Function Lock 3.0\|Setting Lock\|Secure Key Management\|Secure Print\|Cloud Secure Print\|On-Premise Active Directory/LDAP Authentication\|Store Print Log
Caveats
*	(11) Capacity calculated with 80gsm paper (3) Scan Speeds based on ISO/IEC 17991 (3) Scan Speeds based on ISO/IEC 17991 (7) Approx. declared yield value in accordance with ISO/IEC 19752

MFCL5700DN

The professional all-in-one performer is here.

The MFC-L5700DN offers four-in-one functionality providing fast printing, scanning, copying and faxing with an easy-to-use large touchscreen and convenient 50 sheet ADF capacity. With optional high yield toner cartridges and flexible paper handling, this mono laser machine enables your business to work more efficiently and cost effectively.

Key Features

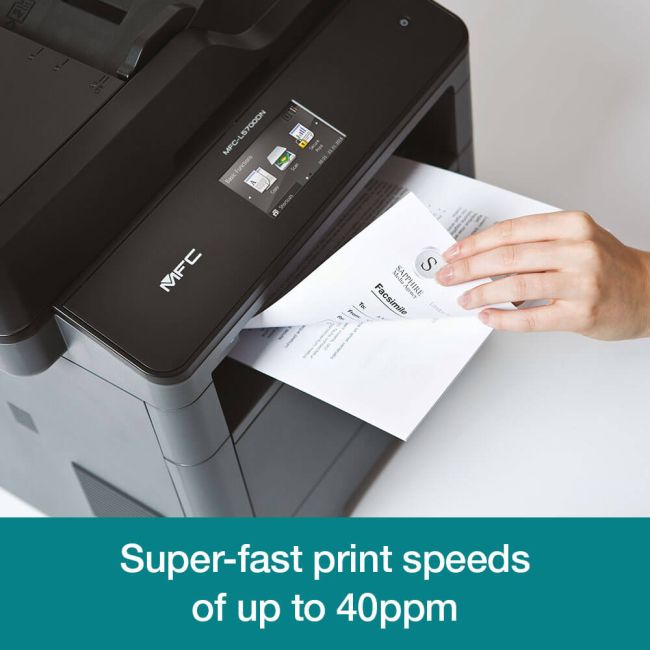

Super-fast print speeds of up to 40ppm and scan speeds of up to 24ipm
Combined paper input of 300 sheets
Automatic 2-sided printing
High-Yield Replacement Cartridges - Optional high yield 8,000 page toner cartridge

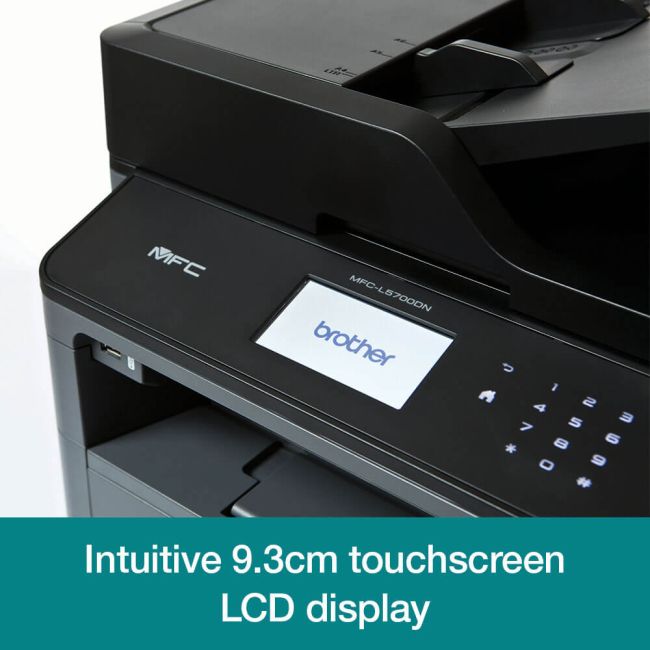

Intuitive 9.3cm touchscreen LCD display
High speed wired (10Base-T/100 Base-TX) interface and USB 2.0 connectivity

slide 1 of 6, show larger image, mfcl5700dn

2:00

0:51

IntroText

Better reliability

Built to perform for longer and meet the demands of high output work environments, the range has been totally remodelled with robust build quality that’s even more resilient and hardwearing.

Tighter security

Better reliability

Built to perform for longer and meet the demands of high output work environments, the range has been totally remodelled with robust build quality that’s even more resilient and hardwearing.

Tighter security

Eco-friendly

Flexible print solutions from Brother

Maximise Performance & Reduce Print Spend

Product Comparison


	MFC-L5700DN	MFC-L5750DW	DCP-L5500DN	HL-L5100DN	HL-L5200DW
Price	−	−	−	−	−
Functionality	Print, copy, scan and fax	Print, copy, scan and fax	Print, copy and scan	Print	Print
Print speeds	Up to 40ppm	Up to 40ppm	Up to 40ppm	Up to 40ppm	Up to 40ppm
Display	9.3cm colour touchscreen	12.3cm colour touchscreen	9.3cm colour touchscreen	16 characters x 1 line LCD	16 characters x 1 line LCD
Connectivity	USB 2.0 & Ethernet	USB 2.0, Ethernet & wireless	USB 2.0 & Ethernet	USB 2.0 & Ethernet	USB 2.0, Ethernet & wireless
Document handling	Automatic 2-sided print	Automatic 2-sided print	Automatic 2-sided print	Automatic 2-sided print	Automatic 2-sided print
In-box supplies	Up to 2,000 pages	Up to 2,000 pages	Up to 2,000 pages	Up to 3,000 pages	Up to 3,000 pages

Specifications

General
Printer Type	Mono
Function	Copy\|Fax\|Print\|Scan
Maximum Paper Size	A4
Technology	Laser
Laser Classification	Class 1 Laser Product
Connectivity	USB\|Wired
Memory	Internal::256MB
Control Panel	Touchscreen
Display	Yes::9.3cm Colour Touchscreen
Printing
One Sided Print Speed A4 Mono	40 (pages per minute)
Duty Cycle	Up to 3,500 pages
Two Sided Print Speed A4 Mono	20 (sides per minute)
First print out time	Less than 7.2 seconds from ready mode
Mobile Print	True
Automatic 2 sided print	True
Print Languages	Postscript\|PCL6\|Brother ESC-P\|PDF Version 1.7\|XPS Version 1.0\|BR-Script3
Quiet Mode	True
Embedded Fonts	12 bitmap fonts\|PCL\|PCL::66 scalable fonts\|Postscript\|Postscript::66 scalable fonts\|13 barcodes
Printer Functions	N-up Printing\|Poster Printing\|ID Printing\|Booklet Printing\|Manual 2-Sided Print\|Print Text In Black\|Print Profiles\|Watermark Printing\|Print Archive\|Carbon Copy\|Skip Blank Page
Embedded Barcodes PCL	Code128 (set A, set B, set C)\|Code39\|EAN128 (set A, set B, set C)\|EAN-13\|FIM (US-PostNet)\|Interleaved 2 of 5\|ISBN (EAN)\|ISBN (UPC-E)\|Post Net (US-PostNet)\|UPC-A\|UPC-E\|EAN-8
Drivers
Printer Drivers	ChromeOS\|ChromeOS::Supports native ChromeOS printing\|Linux\|Linux::CUPS\|Linux::LPD/LPRng (x86/x64 environment)\|macOS\|macOS::10.14,x\|macOS::We recommend using AirPrint from 11.0,x\|Visit support.brother.com for the full list of supported OS and to download the latest drivers and software,\|Windows\|Windows::10\|Windows::11\|Windows::8.1\|Windows::Server\|Server::2008\|Server::2008 R2\|Server::2012\|Server::2012 R2\|Server::2016\|Server::2019\|Server::2022
Scan Drivers	Windows\|Linux\|Linux:: SANE\|Visit support,brother,com for the full list of supported OS and to download the latest drivers and software,\|Macintosh\|Windows::Windows 11\|Windows::Windows 10\|Windows:: Windows 8.1\|Macintosh::10.14.x\|Windows::TWAIN\|Windows::WIA\|Windows:: Windows Server 2019, 2016, 2012R2, 2012 & 2008R2
Paper Handling
Paper input	Automatic Document Feeder\|Standard (Tray 1)\|Standard (Tray 1)::250 sheets\|Multi Purpose Tray\|Multi Purpose Tray::50 sheets\|Multi Purpose Tray::10 envelopes\|Automatic Document Feeder::50 sheets
Paper output	Face Down\|Face Down::150 sheets\|Face Up\|Face Up::1 sheet (straight path)
Media Sizes	Standard (Tray 1)\|Standard (Tray 1)::A4\|Standard (Tray 1)::Letter\|Standard (Tray 1)::Folio\|Standard (Tray 1)::A5\|Standard (Tray 1)::A5 (Long Edge)\|Standard (Tray 1)::A6\|Standard (Tray 1)::Executive\|2-Sided Print\|2-Sided Print::A4\|Standard (Tray 1)::Mexico Legal\|Standard (Tray 1)::India Legal\|Multi Purpose Tray\|Multi Purpose Tray::Width: 76.2mm to 215.9mm x Length: 127mm to 355.6mm\|Automatic Document Feeder\|Lower Trays::Executive\|Lower Trays::Letter\|Lower Trays::Legal\|Lower Trays\|Lower Trays::A4\|Lower Trays::A5\|Lower Trays::Folio\|Lower Trays::Mexico Legal\|Lower Trays::India Legal\|Automatic Document Feeder::Width: 105mm to 215.9mm x Length: 147.3mm to 355.6mm
Media Types and Weights	Standard (Tray 1)\|Auto 2-Sided::Plain\|Auto 2-Sided::Recycled\|Automatic Document Feeder::65 - 90g/m2\|Standard (Tray 1)::Plain\|Standard (Tray 1)::Recycled\|Auto 2-Sided\|Auto 2-Sided::60 - 105g/m2\|Standard (Tray 1)::Coloured and letterhead\|Multi Purpose Tray\|Multi Purpose Tray::Plain\|Multi Purpose Tray::Recycled\|Multi Purpose Tray::Bond\|Multi Purpose Tray::Coloured and letterhead\|Standard (Tray 1)::60 - 120g/m2\|Multi Purpose Tray::60 - 200g/m2\|Auto 2-Sided::Coloured and letterhead\|Automatic Document Feeder\|Automatic Document Feeder::Plain\|Automatic Document Feeder::Recycled
Copy
Copy Functions	Multi-Copying/Stack/Sort\|N in 1 Copying\|2 in 1 ID Copying\|Receipt Copying\|Enlarge Text Copy
FCOT from ready mode (seconds)	Mono::9.2 seconds
Grey Scale	256 Shades
One Sided Copy Speed A4 Mono	40
Network
Wired Network Security	SSL/TLS\|SSL/TLS::IPPS\|SSL/TLS::HTTPS\|802,1x\|802,1x::EAP-MD5\|802,1x::EAP-FAST\|802,1x::PEAP\|802,1x::EAP-TLS\|802,1x::EAP-TTLS\|SMTP-AUTH\|SSL/TLS::SMTP\|SNMP v3\|Kerberos\|IPsec\|APOP\|SSL/TLS::POP3\|SSL/TLS::IMAP4
Scanning
Scanner type	CIS (Contact Image Sensor)
Resolution	Interpolated\|Scanner Glass\|ADF\|Colour::600 x 600dpi
Colour Depth	Input\|48 bit Colour Processing\|Output\|Output::24 bit Colour Processing
One Sided Scan Speed A4 Colour	20
One Sided Scan Speed A4 Mono	24
Scanner functions
Standard Functions	Brother Apps\|Brother Web Connect\|Scan to::USB\|Scan to::Email Server\|Scan to::PC\|Scan to::Network Folder\|Scan to::Network\|Scan to::SharePoint\|Scan to::SFTP\|Scan to::FTP\|Scan to::File\|Scan to::Image
Scan Profiles	25 Preset network
Scan Features	Skip Blank Page\|Auto Deskew\|Split PDF
Direct Scan	Yes
Fax
Fax	Telephone Index\|PC-Fax Send and Receive\|Out of Paper Reception\|Fax Stamp\|Error Correction Mode (ECM)\|Distinctive Ring Detection (UK, DK only)\|Cover Page\|Chain Dialling\|Broadcasting\|Automatic Redial\|Auto Reduction\|Fax Forwarding\|Internet Fax (I-Fax)\|Memory Transmission\|Fax to Server\|Batch Transmission\|Remote Retrieval
Fleet Management Tools
Fleet Management Tools	Unattended Installer\|MSI Installer\|Embedded Web Server\|Driver Deployment Wizard\|Mass Deployment Tool\|LAN/WAN Management Software::BRAdmin Professional
Operating Systems And Software
Software supplied - Windows	Windows Software::Brother iPrint&Scan\|Macintosh Software::Brother iPrint&Scan Desktop\|Windows Software\|Macintosh Software\|Utilities\|Windows Software::Tungsten PaperPort
Supplies And Accessories
Toner	Inbox Toner\|Inbox Toner::BK Toner\|BK::TN3430 - 3000 pages\|BK::TN3480 - 8000 pages\|BK Toner::2,000 pages
Drum Unit	50,000 pages (3 page / job)
Optional accessories	Filter Holder\|Paper trays::Lower Tray - 250 Sheets\|Paper trays::Lower Tray - 520 Sheets\|Lower Tray - 250 Sheets::LT-5500\|Lower Tray - 520 Sheets::LT-6500\|Filter Holder::FH-1000
Carton Contents
In the box	Power supply cord\|Quick setup guide\|Product safety guide\|Warranty\|Device\|Supplies
Dimensions And Weights
Weight With Carton	20.1
Dimensions With Carton	545mm (W) x 520mm (D) x 641mm (H)
Weight Without Carton	16.5
Dimensions Without Carton	435mm (W) x 427mm (D) x 486mm (H)
Duty Cycle
Print Duty Cycle	Up to 3,500 pages
Operating Environment
Power Consumption	Ready\|Sleep\|Copying\|Printing\|Deep Sleep\|Printing in quiet mode\|Printing in quiet mode::390.0W\|Deep Sleep::1.6W\|Copying in quiet mode\|Network Standby\|Ready::34.0W\|Sleep::8.0W\|Copying::645.0W\|Network Standby::2.0W
Sound Power	Quiet Mode::<6.47B(A)\|Quiet Mode\|Ready\|Copying\|Ready::<4.8B(A)\|Copying::<6.67 B
Sound Pressure	Ready\|Quiet Mode\|Ready::35.0dB\|Copying\|Copying::54.0dB\|Quiet Mode::52.0dB
TEC Value	1.832
Operating	Humidity %\|Humidity %::20 - 80%\|Degrees Celsius\|Degrees Celsius::10°C - 32°C\|Degrees Fahrenheit\|Degrees Fahrenheit::50°F - 90°F
Storage	Degrees Сelsius::0°C - 40°C\|Humidity %::35 - 85%\|Humidity %\|Degrees Сelsius\|Degrees Fahrenheit::32°F - 104°F\|Degrees Fahrenheit
Warm-up time from sleep mode	4.8
Address Book
Address Book	Speed Dials\|Group Dial\|LDAP
Solutions
Solutions	Brother Solutions Interface (BSI)
Mobile and Web Connectivity	Brother iPrint & Scan\|Apple AirPrint\|Mopria®\|Android Print Service Plugin
Connectivity
Local interface	Hi-Speed USB 2.0\|USB 2.0 Host::Front
Wired Interface	10BaseT/100BaseTX
WiFi Direct TM	False
Security features
Wired Network Security	SSL/TLS\|SSL/TLS::IPPS\|SSL/TLS::HTTPS\|802,1x\|802,1x::EAP-MD5\|802,1x::EAP-FAST\|802,1x::PEAP\|802,1x::EAP-TLS\|802,1x::EAP-TTLS\|SMTP-AUTH\|SSL/TLS::SMTP\|SNMP v3\|Kerberos\|IPsec\|APOP\|SSL/TLS::POP3\|SSL/TLS::IMAP4
IP Filter	Yes
IPv4	ARP\|RARP\|BOOTP\|DHCP\|APIPA (AutoIP)\|WINS/NetBIOS name resolution\|DNSResolver\|LLMNR responder\|LPR/LPD\|Custom Raw Port/Port9100\|SNMPv1/v2c/v3\|TFTP server\|ICMP\|Web Services (Print)\|Web Services (Scan)\|SNTPClient\|mDNS\|HTTP Server\|SMTP Client\|IPP/IPPS\|HTTP/HTTPS Server\|TFTP client\|CIFS Client\|TELNET Server\|LDAP\|FTP Client\|IMAP4 Client\|POP3 Client
IPv6	NDP\|RA\|DNS Resolver\|mDNS\|LLMNR responder\|LPR/LPD\|Custom Raw Port / Port9100\|SNMPv1/v2c/v3\|TFTP server\|ICMPv6\|SNTP Client\|Web Services (Print)\|Web Services(Scan)\|HTTP Server\|IPP/IPPS\|SMTP Client\|FTP Server\|HTTP/HTTPS Server\|TFTP client\|CIFS Client\|TELNET Server\|LDAP\|FTP Client\|IMAP4\|POP3
Features	Firmware Updates\|Port-based Network Access Control (IEEE 802,1x)\|E-mail Notifications\|E-mail Reports\|Secure Function Lock 3.0\|Setting Lock\|Secure Key Management\|Secure Print\|Cloud Secure Print\|On-Premise Active Directory/LDAP Authentication\|Store Print Log
Caveats
*	(11) Capacity calculated with 80gsm paper (3) Scan Speeds based on ISO/IEC 17991 (3) Scan Speeds based on ISO/IEC 17991 (7) Approx. declared yield value in accordance with ISO/IEC 19752

Documents

What's in the box

Brother MFC-L5700DN
Starter Toner (2,000 Pages*)
User Guide
Software CD
Power Cable

Reviews

5.001 reviews

Quality
Kent
7.04.2017
We bought this for our office, very very pleased with it. I would go as far as saying perfect. We haven't seen any jams or any dip in quality. Great on inks as they last a while and are reasonable to replace.

Delivery Information

Free next business day delivery on all orders over £36

Terms & Conditions

Resellers: We only sell goods to end users whether that is a private user or a business user. We reserve the right to cancel orders that we believe have been purchased for the purpose of resale. This includes but is not limited to any individual or business who are managed print providers, IT resellers, Amazon sellers or eBay sellers who do not qualify as end users.
Free Next Business Day Delivery on all orders over £30 ex VAT / £36 inc VAT.
For all orders under £30 ex VAT / £36 inc VAT there is a £4.95 ex VAT delivery charge.
Next Business Day Delivery only includes orders being shipped to mainland Great Britain.
Delivers to AB postcode area, the higher parts of Scotland and Scottish Isles may be a 'Two Day' service and not 'Next Day'
Next Business Day Delivery is available for all orders placed before 4.30pm Monday to Friday. Orders placed after 4.30pm on Friday or at the weekend will be processed on the next business day (see delivery estimates).
Our standard delivery service is a one man to the ground floor service - customer assistance may be required. Non ground floor deliveries may require a two man delivery and/or on-site installation. Please call our sales team for more information on 0161 308 5800.
All public holidays and bank holidays are classed as non-business days.
Whilst we will endeavour to ensure your order is sent on a next business day service we can not be held responsible for delays incurred by our couriers or delays due to bad weather or any other circumstance that is beyond our control.
For all orders going to Northern Ireland there is a £25.00 ex VAT delivery charge and this can take 2-3 business days.
For deliveries to other areas including Isle of Man, Scottish Islands and Channel Islands please contact us for a quote.

Order Placed	Expected Delivery Date
Monday before 4:30pm	Tuesday
Tuesday before 4:30pm	Wednesday
Wednesday before 4:30pm	Thursday
Thursday before 4:30pm	Friday
Friday before 4:30pm	Monday
Saturday	Tuesday
Sunday	Tuesday

Downloadables

Product Brochure

Questions? Call us on 0161 308 5800 or email [email protected]

Image not specified

Brother MFC-L5700DN Brochure

Questions & Answers

Will this printer come with a toner and a drum unit?
Sun Jan 14 2018
Written by Carl
- Hi there, Yes, the Brother MFC-L5700DN ships with a 2,000-starter toner cartridge and a 30,000-page drum unit. Thanks The Printerbase Team
  Sun Jan 14 2018
  Written by Danial McKenna
Is there a limit to the number of pages you can print/scan per day or week on this printer?
Mon Jan 08 2018
Written by Trent
- Hi Trent, thanks for getting in touch. Brother recommend you don’t print more than 3,500 pages per month on this machine, printing over this amount will cause early wear and tear on items like belt units and paper feeders in the machine. I hope this helps. Thanks The Printerbase Team
  Mon Jan 08 2018
  Written by Danial McKenna
Does this printer have a flatbed scanner too?
Tue Jan 16 2018
Written by Zack
- Hi Zack, thanks for getting in touch. Yes, you can scan documents either using the flatbed scanner or the 50 sheet ADF (Automatic document feeder) at the top of the machine. I hope this helps. Thanks Chris The Printerbase Team
  Tue Jan 16 2018
  Written by Chris Hall
Can I upgrade the paper tray on this printer?
Wed Jan 10 2018
Written by Annette
- Hi Annette, thanks for getting in touch. Yes, the Brother MFC-L5700DN will take an additional 250 sheet paper tray, giving you 2 x 250 sheet paper trays in total. I hope this helps Thanks Simon
  Wed Jan 10 2018
  Written by Simon Green
Hi, can this printer scan double sided documents via ADF? Thanks, Alana
Tue Feb 20 2018
Written by Alana
- Hi Alana, Thank you for your email. Unfortunately not as this only has double sided print features. However take a look at the MFC-L5750DW - https://www.printerbase.co.uk/brother-mfc-l5750dw.html I can confirm that this machine has double side print, copy and scan features. Many Thanks Stephen Thomas
  Tue Feb 20 2018
  Written by Stephen Thomas
